6A. For the old style pump see Figure 4.
Loosen screws and nuts holding the old
style bracket. Remove old pump and
bracket.
6B. For the new style pump see Figure 4. Cut
the ribbon tie and remove pump.
7. Attach new bracket, if required, with rivets
provided as shown in Figure 4.
8. Set pump on floor of PolarCool in front of
bracket. NOTE: Make sure intake side of
pump is at bottom.
9. Insert a ribbon tie, provided, through two
holes of bracket.
10. Wrap ribbon tie around pump as shown in
Figure 5. Securely tighten ribbon tie to
anchor pump into position.
11. Attach water hose to hose fitting on pump.
See Figure 6.
12. Make sure all electrical power is
disconnected from PolarCool. Stretch out
pump power cord. Insert pump power
through conduit of electrical box to inside of
electrical box.

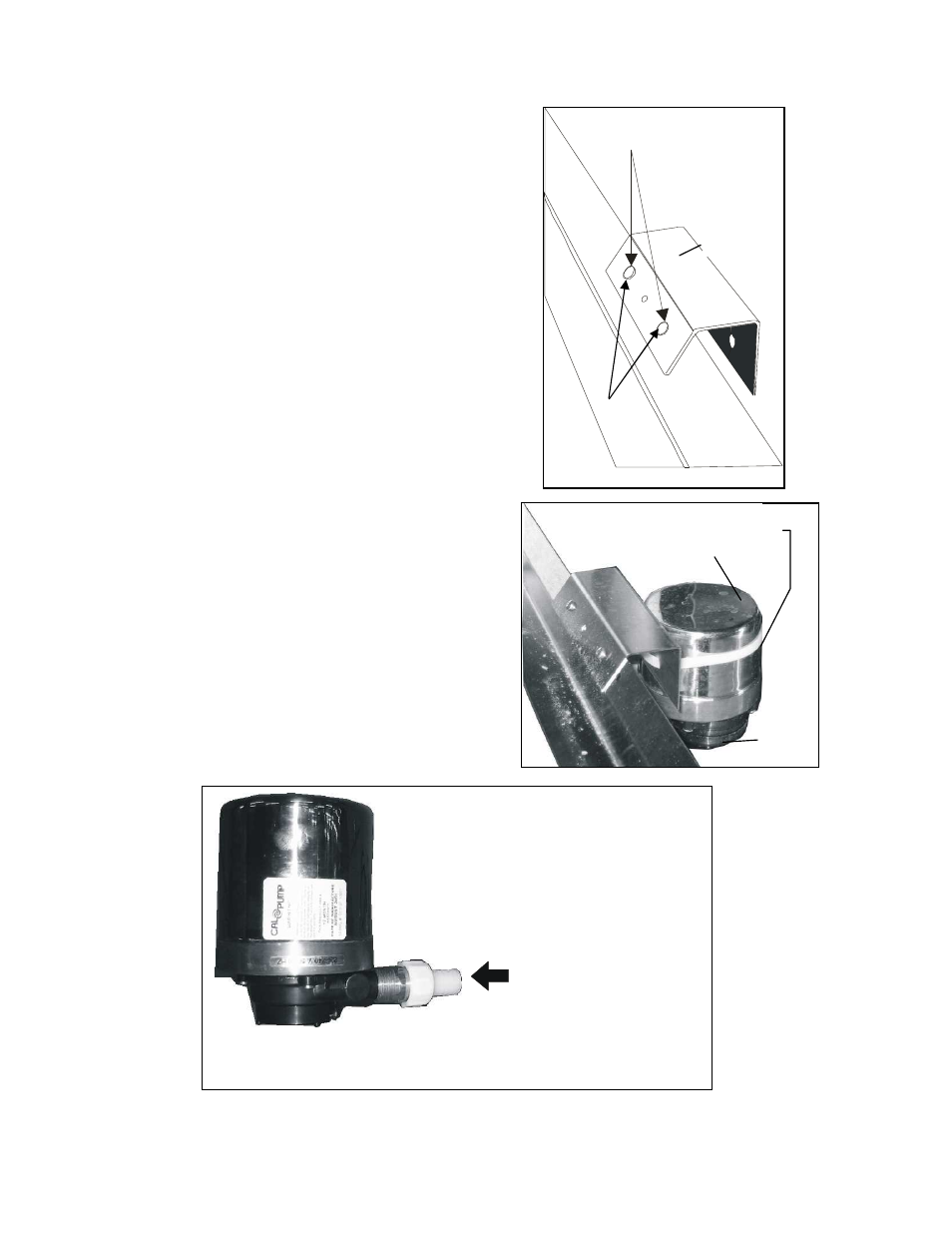

Replacement
pump
Ribbon tie
Intake
Figure 4
Bracket
Old style bracket uses
nuts and bolts.
Figure5
Figure 6
Hose Fitting
Pump for PolarCool
(Appearance may differ from
picture)
Attach new style
bracket with rivets
provided.
