Appendix C Installing and Upgrading Router Memory

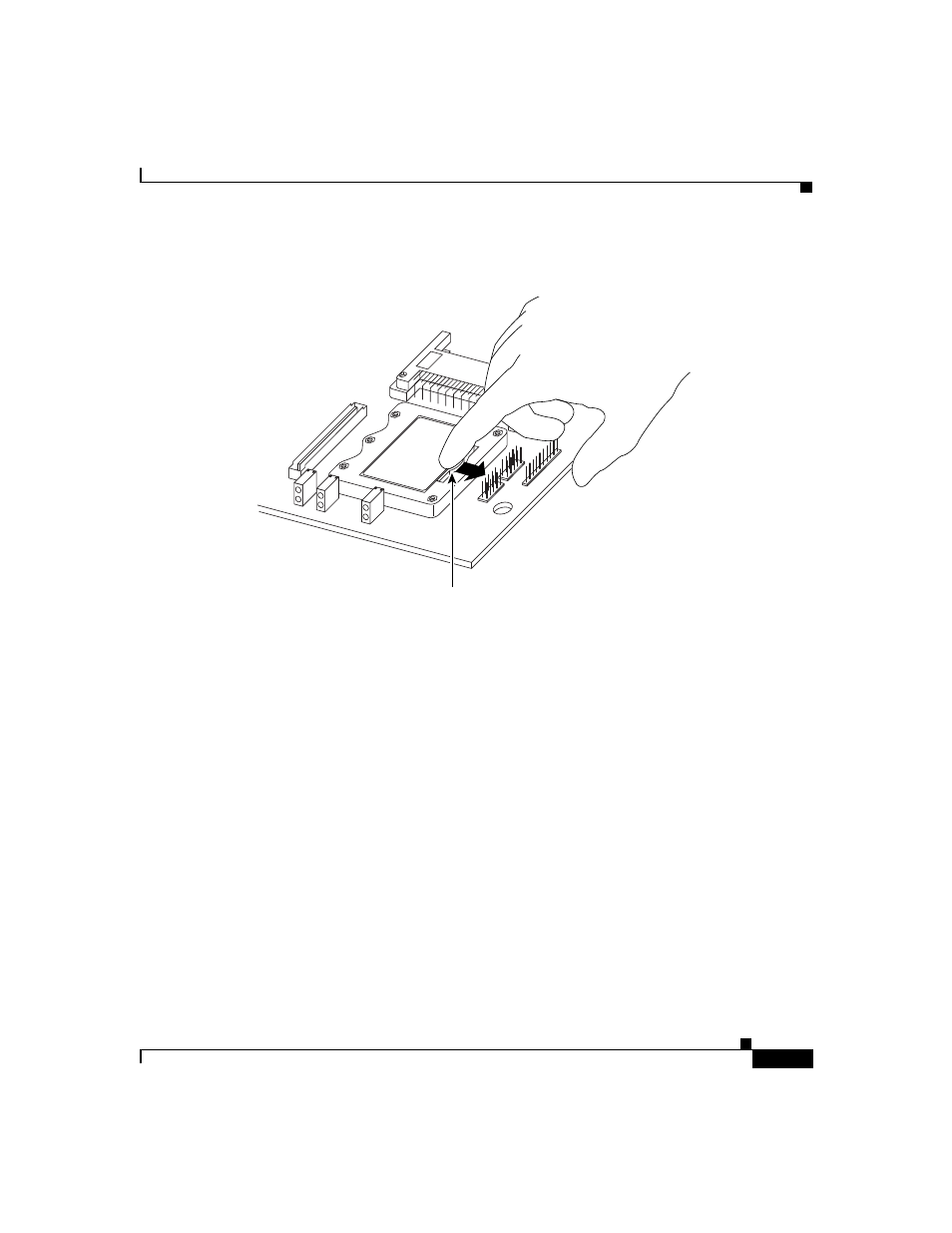

Figure C-5 Removing a Mini-Flash Module
Installing a DIMM
You can install a dual inline memory module (DIMM) to increase the amount of
dynamic random-access memory (DRAM) in the router.
Take the following steps to install a DIMM on the router motherboard.
Step 1 Locate the DIMM slot on the motherboard, shown in
Figure C-2 .
Step 2 Remove any existing DIMM by pulling the DIMM slot
guides (shown in
Figure C-6 ) away from the DIMM and
down towards the motherboard.
Step 3 Hold the replacement DIMM with the notched edge
away from you and facing the router.
Step 4 Insert the DIMM into the DIMM slot, making sure that
the notches on the edge of the DIMM are inserted over
the bars inside the DIMM slot, as in
Figure C-6 .
12614
Mini-Flash module release lever
