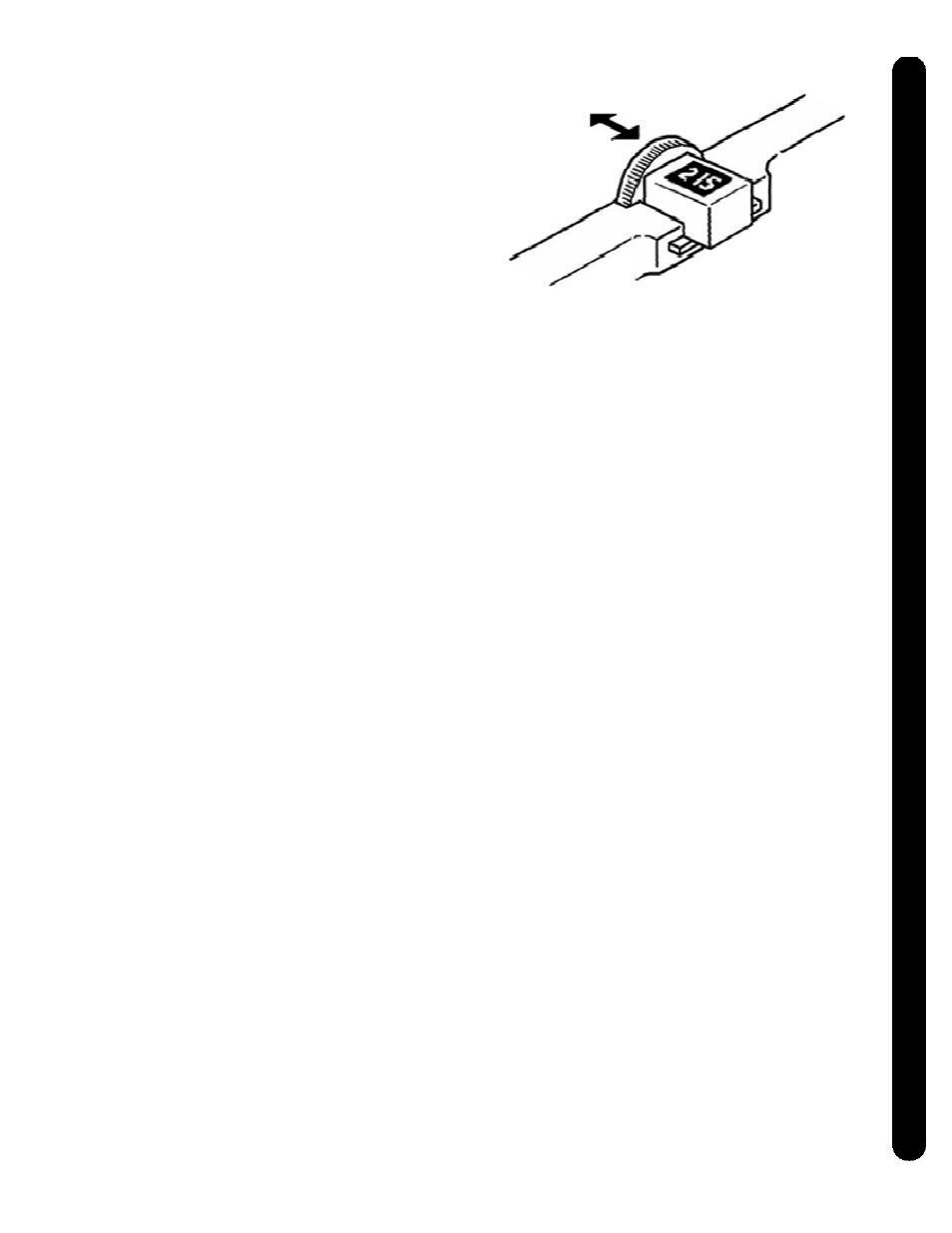

Adjusting the Depth Meter
The Cannon Depth Meter provides non-slip
accuracy, plus easy resetting. To reset, just slide
the meter away from the reel until the gears are
disengaged. Spin meter gear to change setting.
NOTE: Actual fishing depth may vary from
depth shown on meter due to trolling speed
and weight of cannon ball. (See "Blowback")
Maintaining Your Downrigger
At the beginning of each fishing season and
more often during periods of heavy usage, lightly
grease the thrust bearing, reel shaft bearings,
swivel head pulley, ratchet brake face, and
ratchet dog. When using for saltwater fishing,
thoroughly rinse the entire downrigger with fresh
water after each trip and lubricate on a frequent
basis. Replace the cable at least every two years.
For repairs or servicing your downrigger refer
to the Warranty Information section of this
booklet.
Trouble Shooting
PROBLEM:
Clutch slips
SOLUTION:
The set screw in the reel may have come
loose off the shaft. Follow the instructions
below:
1) Unwind the cable from the reel.
2) Remove the set screw.
3) Align the set screw hole in the reel with the
hole in the reel shaft by inserting a 3/16" or
smaller rod and rotating the reel until you feel
it drop into the shaft hole.
4) Replace the set screw and tighten until you
feel resistance.
5) By gently rocking the reel back and forth while
tightening the set screw, you can feel it
engage in the shaft hole. The half dog point
on the set screw must enter the hole in the
shaft; not just be tightened against the reel
shaft.
