ConnectX IB MDI Dual-port InfiniBand Mezzanine Card for Dell PowerEdge M600 and M605 Blades User’s Manual

Rev 1.0

Appendix A: Specifications

A.1 Board Mechanical Drawing and Dimensions

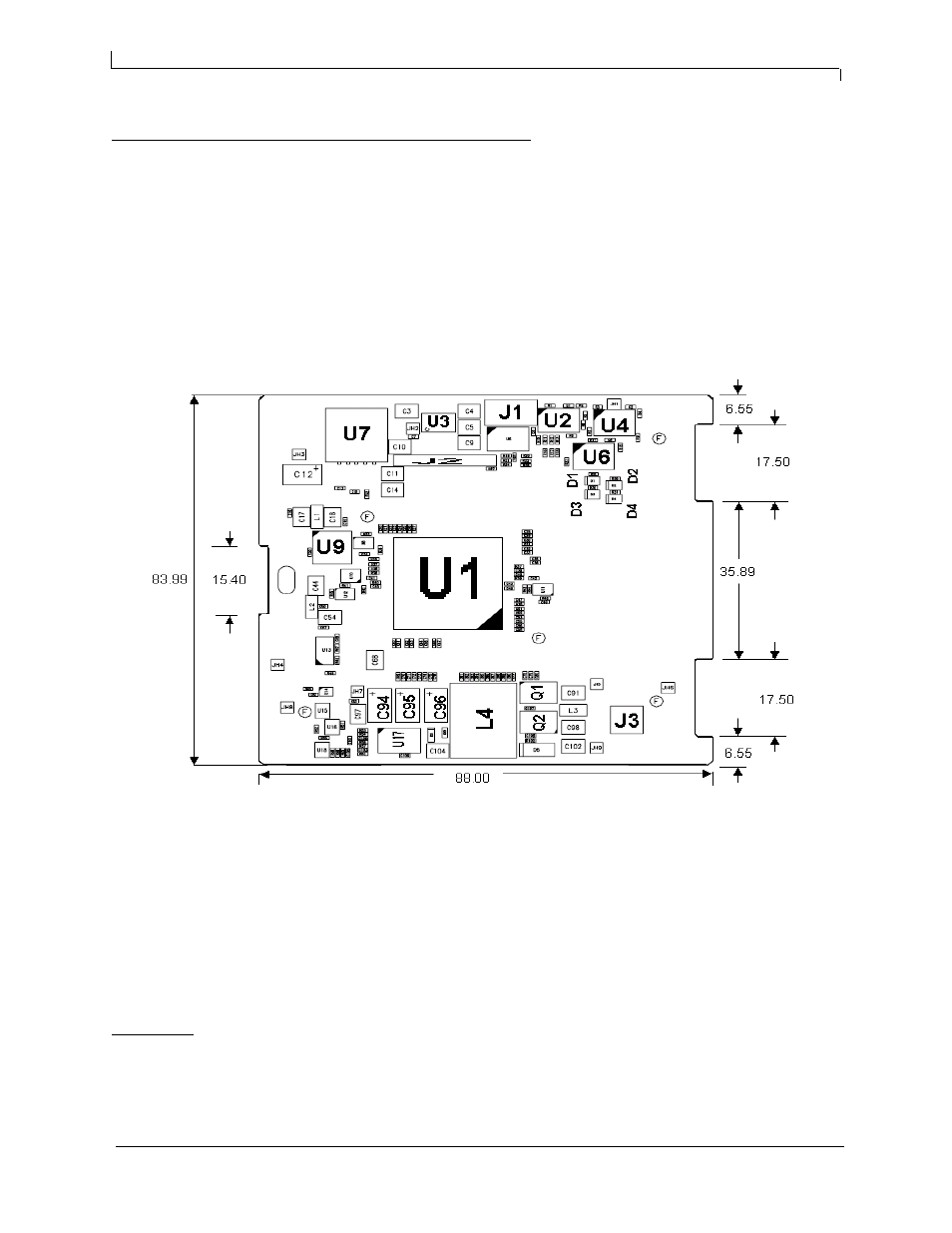

The ConnectX IB MDI mezzanine card mechanical drawing is depicted in Figure 1.

Note: All dimensions are in millimeters.

Figure 1: ConnectX IB MDI Mezzanine Card

J1 is the I2C Connector.

A.2 EMC Certification Statements

A.2.1 FCC Statements (USA)

Class A Statements:

§ 15.21

Statement

Warning! Changes or modifications to this equipment not expressly approved by the party responsi-
ble for compliance (Mellanox Technologies) could void the user's authority to operate the equipment.
