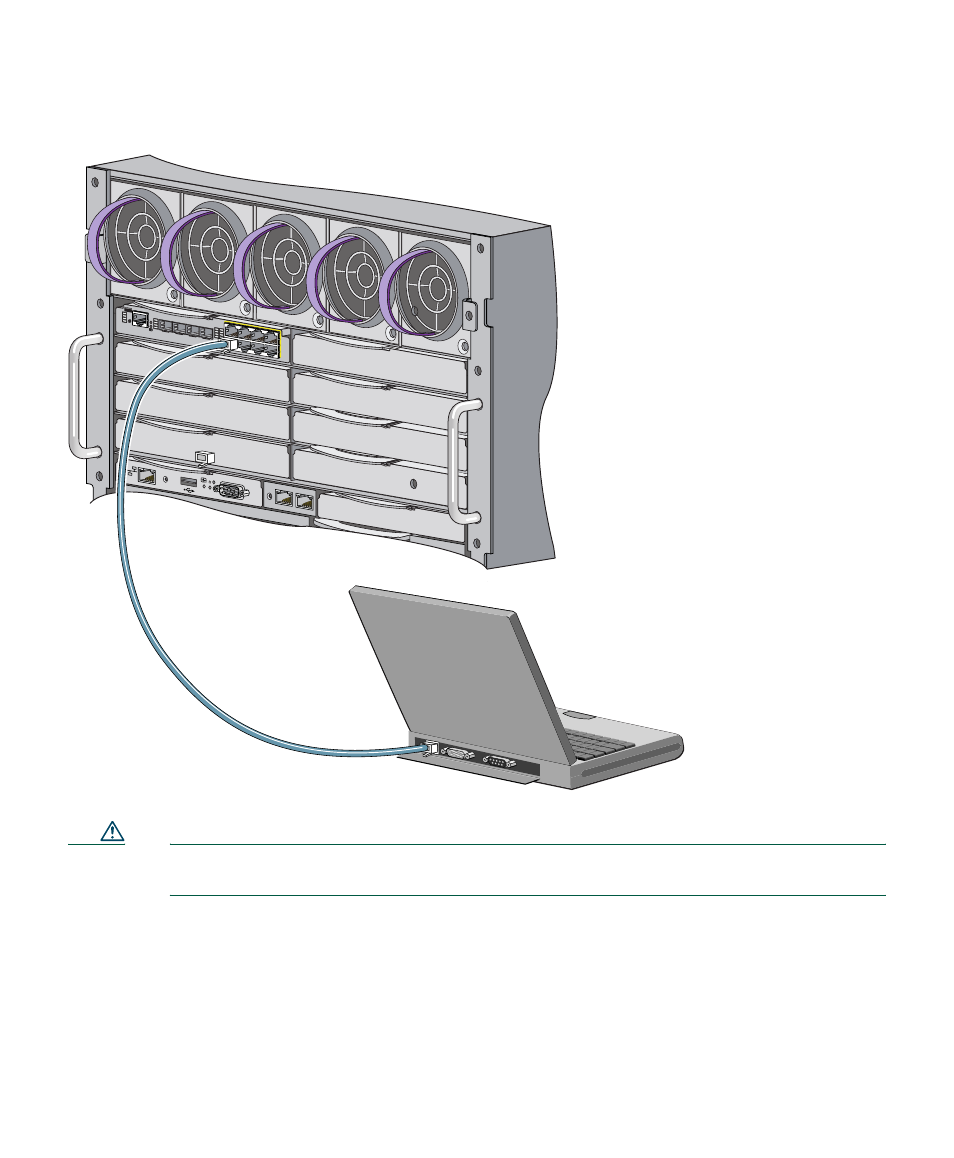

Figure 5

Connecting the Ethernet Cable from a PC to a Switch Module Ethernet Port

Caution

Do not connect the switch module to any device other than the PC or workstation being
used to configure it.

Step 7

Connect the other end of the cable to the Ethernet port on the PC or workstation. Verify that
the port status LEDs on both connected Ethernet ports are green.

Step 8

Wait approximately 30 seconds after the port LEDs turn green, and launch a web browser on
your PC or workstation.

23x

24x

21x

24x

17x

18x

17x

20x

SYST

STAT

DLX

SPD

CONSOLE

UID

WS-CBS-3

020-HPQ

MODE

MEDIA DET

ECT SFP/R

-45 PORTS

17-20

153144
