18  About Your Monitor About Your Monitor  19
17 TMDS RX0­
18 TMDS RX0+
19 TMDS Ground
20 Floating
21 Floating
22 TMDS Ground
23 TMDS Clock+
24 TMDS Clock-

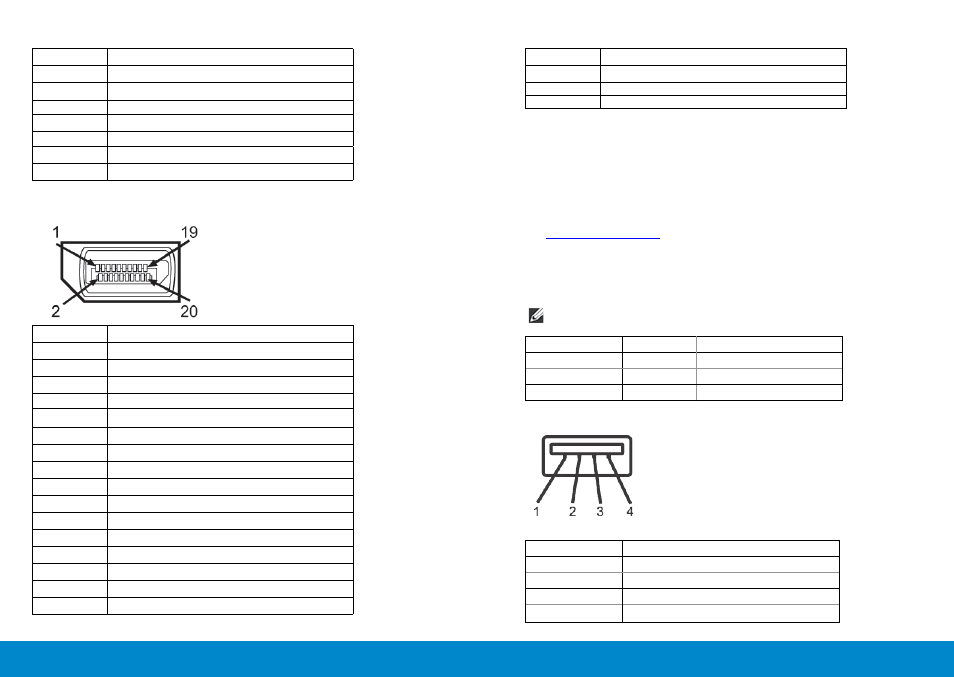

Displayport Connector
Pin Number 20-pin Side of the ConnectedSignal Cable
1
ML0(p)
2 GND
3 ML0(n)
4 ML1(p)
5 GND
6 ML1(n)
7 ML2(p)
8 GND
9 ML2(n)
10 ML3(p)
11 GND
12 ML3(n)
13 GND
14 GND
15 AUX(p)
16 GND
17 AUX(n)
18 HPD
19 Re-PWR
20 PWR
Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The
monitor automatically provides the computer system with its Extended
Display Identification Data (EDID) using Display Data Channel (DDC)
protocols so the system can configure itself and optimize the monitor
settings. Most monitor installations are automatic; you can select different
settings if desired. For more information about changing the monitor settings,
see
Operating the Monitor .
Universal Serial Bus (USB) Interface
This section gives you information about the USB ports that are available on
the monitor.
NOTE: This monitor supports High-Speed Certified USB 2.0 interface.
Transfer Speed DataRate Power Consumption
High speed 480 Mbps 2.5 W (Max, each port)
Full speed 12 Mbps 2.5 W (Max, each port)
Low speed 1.5 Mbps 2.5 W (Max, each port)
USB Upstream Connector
Pin Number 4-pin Side of the Connector
1 DMU
2 VCC
3 DPU
4 GND
