About Your Monitor:Dell P2211H/P2311H Flat Panel Monitor User's Guide

file:///S|/SSA_Proposal/P2211_P2311/about.htm[7/13/2011 12:17:52 PM]

7

GND-G

8

GND-B

9

Computer 5V/3.3V

10

GND-sync

11

GND

12

DDC data

13

H-sync

14

V-sync

15

DDC clock

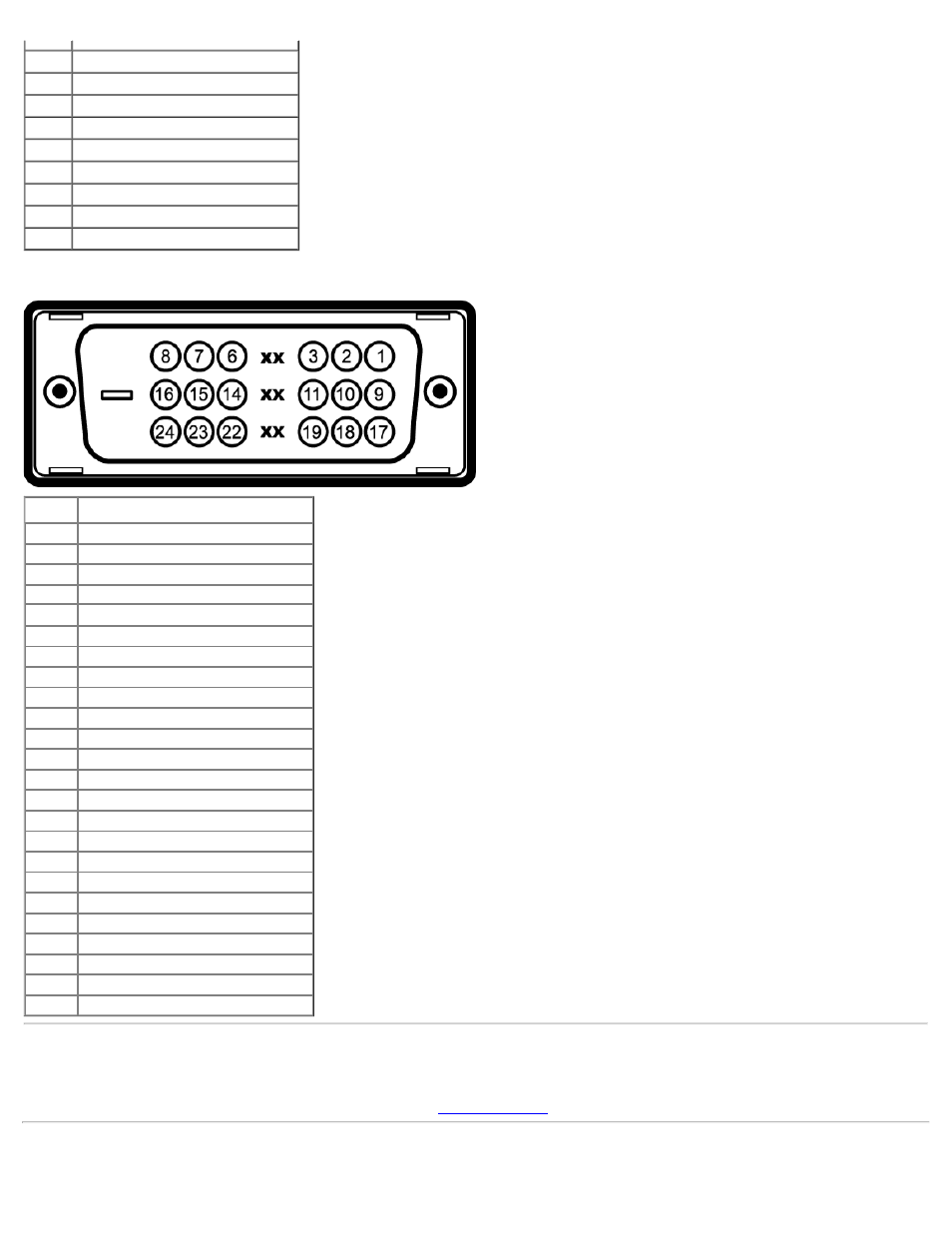

DVI Connector

Pin

24-pin Side of the Connected Signal

Number Cable
1

TMDS RX2-

2

TMDS RX2+

3

TMDS Ground

4

Floating

5

Floating

6

DDC Clock

7

DDC Data

8

Floating

9

TMDS RX1-

10

TMDS RX1+

11

TMDS Ground

12

Floating

13

Floating

14

+5V/+3.3V power

15

Self test

16

Hot Plug Detect

17

TMDS RX0-

18

TMDS RX0+

19

TMDS Ground

20

Floating

21

Floating

22

TMDS Ground

23

TMDS Clock+

24

TMDS Clock-

Plug and Play Capability

You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data (EDID)

using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor installations are automatic; you can select different

settings if desired. For more information about changing the monitor settings, see

Operating the Monitor

.

Universal Serial Bus (USB) Interface
