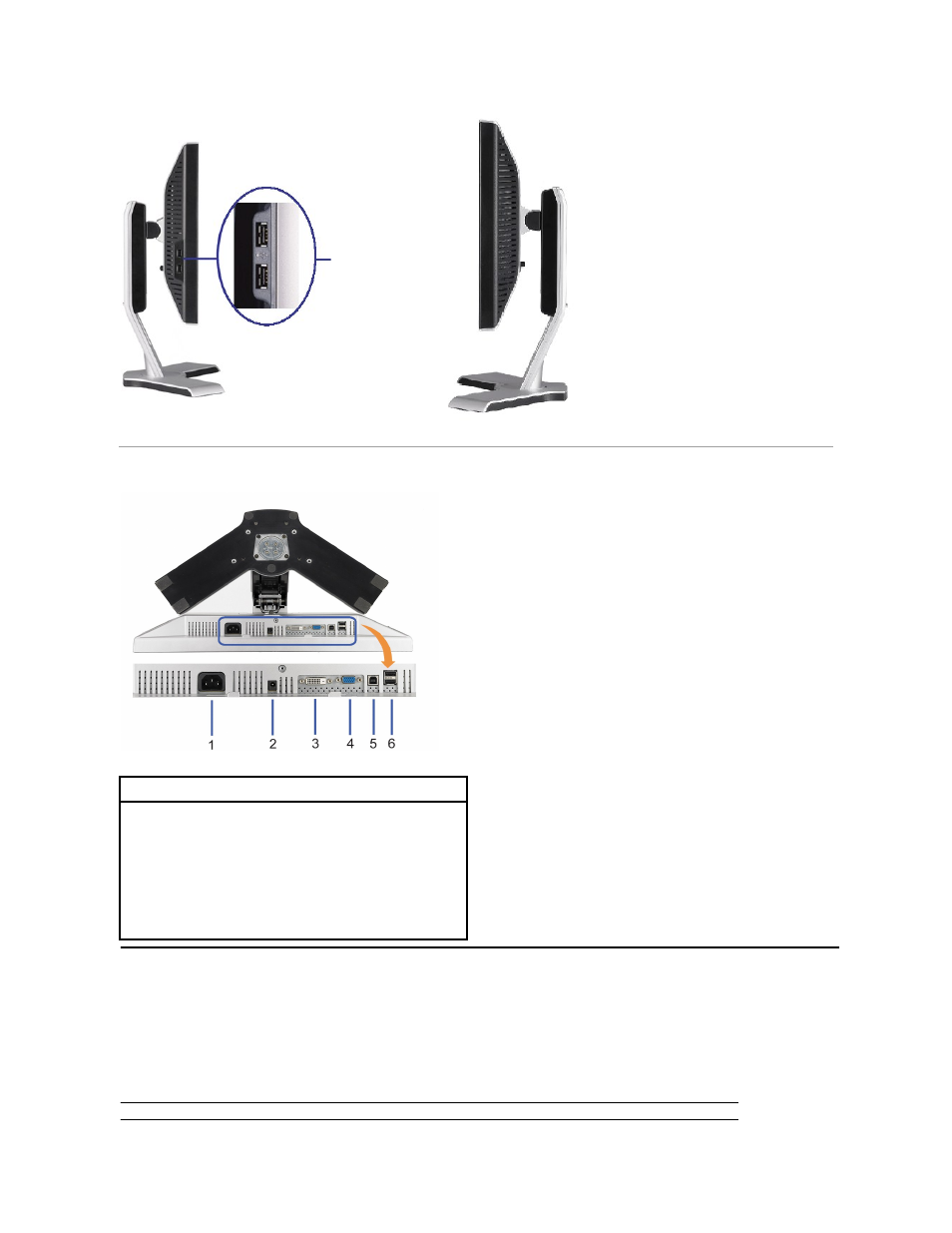

Bottom View
USB
connectors
(downstream)
Left view Right view
Label Description
1 AC power cord connector.
2 DC power connector for Dell Soundbar.
3 DVI connector
4 VGA connector
5 USB upstream port
6 USB connector port
Monitor Specifications
The following sections give you information about the various power management modes and pin assignments for various connectors for your monitor.
Power Management Modes
If you have VESA's DPM™ compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This is referred to as
Mode*. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling
of this automatic power saving feature:
VESA Modes Horizontal Sync Vertical Sync Video Power Indicator Power Consumption
