Back Panel

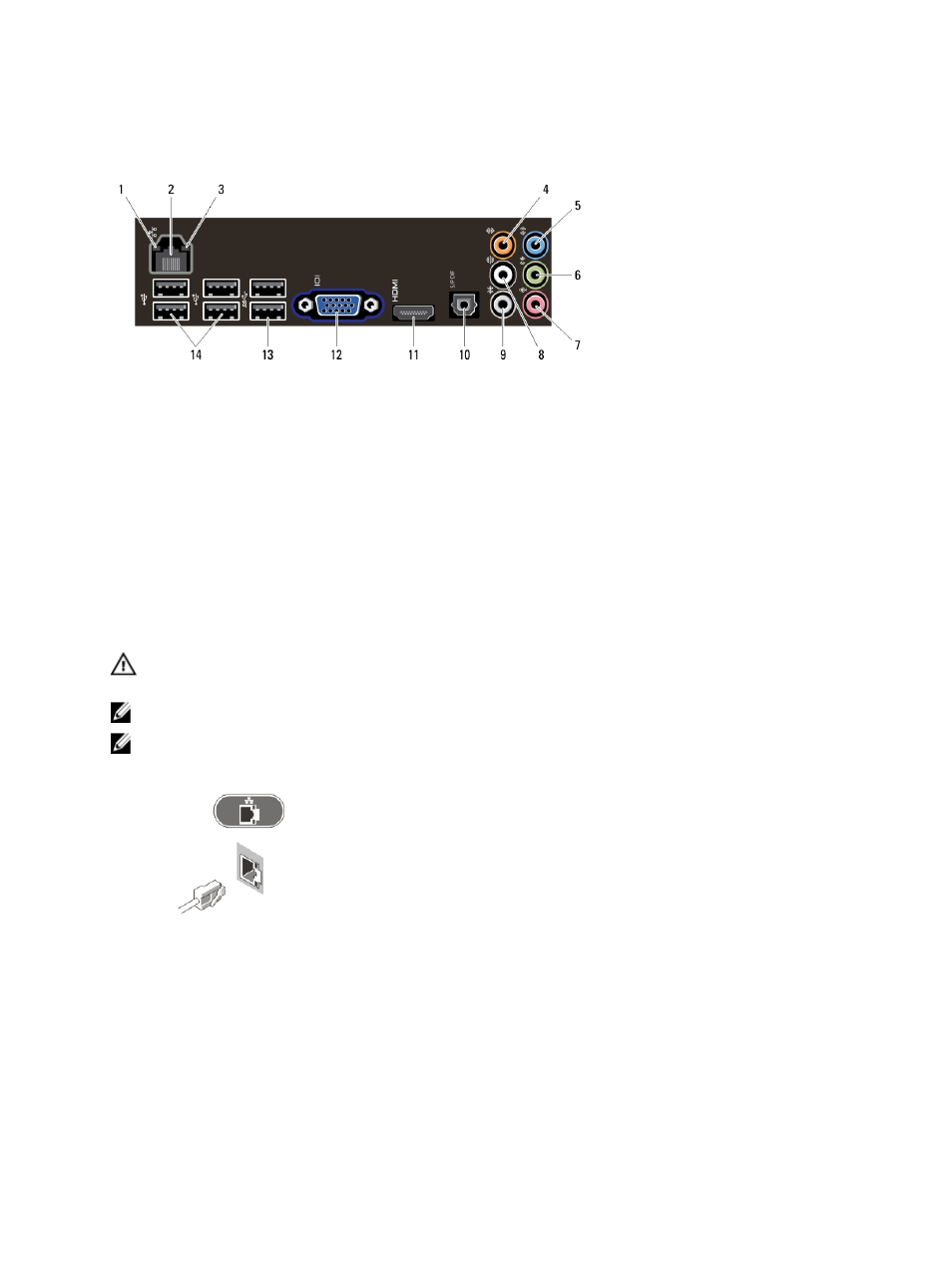

Figure 2. Back Panel
1. link integrity light
2. network adapter connector
3. network activity light
4. center/subwoofer connector
5. line-in connector
6. front L/R line-out connector
7. microphone connector
8. rear L/R speaker connector 9. side L/R surround connector
10. S/PDIF connector
11. HDMI connector
12. VGA connector
13. USB 3.0 connectors (2)
14. USB 2.0 connectors (4)
Quick Setup
WARNING: Before you begin any of the procedures in this section, read the safety information that shipped with
your computer. For additional best practices information, see www.dell.com/regulatory_compliance.
NOTE: Some devices may not be included if you did not order them.
NOTE: Some cables may not be shipped with your computer.
1. Connect the network cable (optional).
Figure 3. Network Connection
2. Connect the telephone cable (optional).
