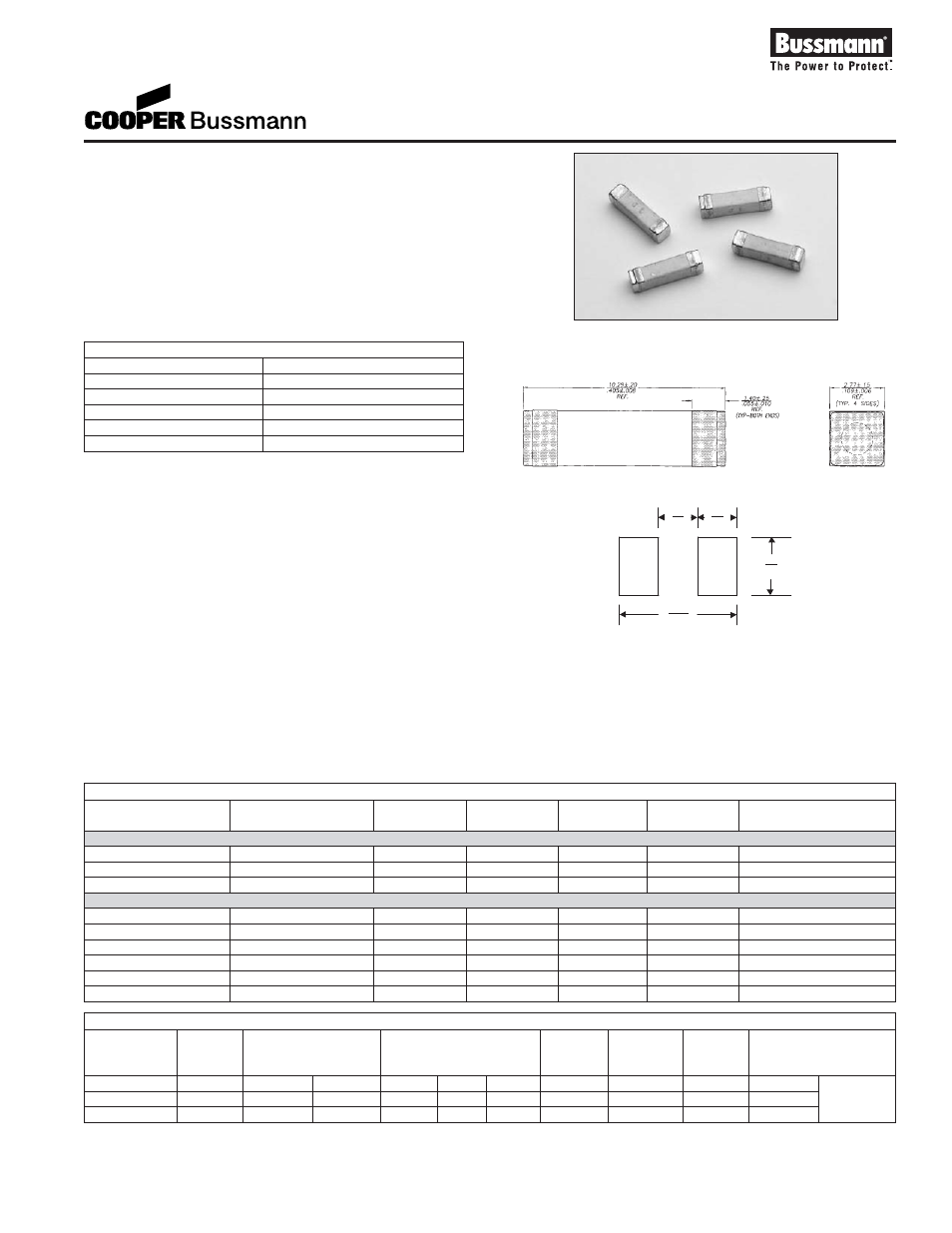

Description
• The first and most reliable surface mount telecom circuit
protector designed to protect against power cross faults
and comply with all surge requirements.
• Allows compliance with telecom regulatory standards
including Bellcore GR 1089, UL 1950/60950, and FCC part
68. Application circuit testing is recommended.
• Eliminates the need for a current limiting resistor.
• Protects against overcurrent conditions found in telecom tip
and ring applications.
• RoHS Compliant version available (-R option)
* If the device does not open at 250% within 120 seconds, increase
current to 300% of amp rating. Device must open in 10 seconds max.
Agency Information
• UL Recognition Card: JDYX2/E19180
• CSA Component Certification Record and Class No.:
053787C000, 1422 30
Environmental Data
• Life Test: MIL-STD-202, Method 108A, Test Condition D
• Load Humidity: MIL-STD-202, Method 103B
• Moisture Resistance: MIL-STD-202, Method 106E
• Thermal Shock: MIL-STD-202, Method 107D, air-to-air
• Case Resistance: EIA/IS-722
• Resistance to Dissolution of Metallization:
ANSI J-STD-002, Test D
• Mechanical Shock: MIL-STD-202, Method 213B, Test
Condition A
• High Frequency Vibration: MIL-STD-202, Method 204D,
Test Condition D
• Resistance to Solvents: MIL-STD-202, Method 215A
Soldering Method
• Wave Immersion: 260°C, 3 sec max.
• Infrared: 240°C, 30 sec max.
5.2 3.7
(0.204) (0.145)
4.0
(0.157)
12.6
(0.496)
Land Pattern
Dimensions mm ⁄
(inches)
ELECTRICAL CHARACTERISTICS
% of Amp Rating Opening Time
100% 4 Hours Minimum
250% 1 Second Minimum
250% 4-10 Seconds Typical
250%* 120 Seconds Maximum
300% 10 Seconds Maximum
ELECTRICAL AND POWER CROSS SPECIFICATIONS
Product Voltage Interrupting DC Cold Typical Maximum Typical Alpha Code
Code Rating Rating* Resistance** (ohms) Melting Total Voltage Marking
AC 250VAC 600VAC min. typ. max. I 2 t† Clearing Drop‡ 1st Code 2nd Code
TCP500mA 250 V 50 A 40 A 0.420 0.530 0.640 1.3 A 2 s 100 A 2 s 471mV F
TCP1.25A 250 V 50 A 60 A 0.070 0.090 0.110 22.2 A 2 s 100 A 2 s 150mV J
TCP2A 250 V 50 A 60 A 0.050 0.075 0.100 30 A 2 s 100 A 2 s 205mV N
* AC Interrupting Rating (Measured at designated voltage, 100% power factor)
** DC Cold Resistance (Measured at 10% of rated current)
*** On RoHS Compliant Version (-R option)
† Typical Melting I
2 t (Measured with a battery bank at 60V DC, 10x-rated current, time constant of calibrated circuit less than 50 microseconds)
‡ Typical Voltage Drop (Measured at rated current after temperature stabilizes)
R***
LIGHTNING SURGE SPECIFICATIONS
Surge Specification Surge Repetitions Waveform Current (A) Voltage (V) Performance
(µSec.) Requirement
TCP 500mA tested
FCC 47 Part 68 Longitudinal Type B 2 5x320 37.5 N/A Fuse cannot open
FCC 47 Part 68 Metallic Type A 2 10x560 100 800 Fuse must open safely
Surge out 25 10x160 65 N/A Fuse cannot open
TCP 1.25A and TCP2A tested
FCC 47 Part 68 Longitudinal Type A 2 10x160 100 per fuse 1500 Fuse cannot open
FCC 47 Part 68 Metallic Type B 2 10x560 100 800 Fuse cannot open
Bellcore GR-1089-CORE First Level Lightning 50 10x1000 100 1000 Fuse cannot open
Bellcore GR-1089-CORE First Level Lightning 50 2x10 500 2500 Fuse cannot open
Surge out 1 10x160 160 N/A Fuse cannot open
Surge out 1 10x560 115 N/A Fuse cannot open
TCP ™ Series
Telecom Circuit Protector
