Crestron qm-md4x2 quickmedia distribution system – Crestron electronic QUICK MEDIA DISTRIBUTION CENTER QM-MD4X2 User Manual
Page 31

Crestron QM-MD4x2
QuickMedia Distribution System

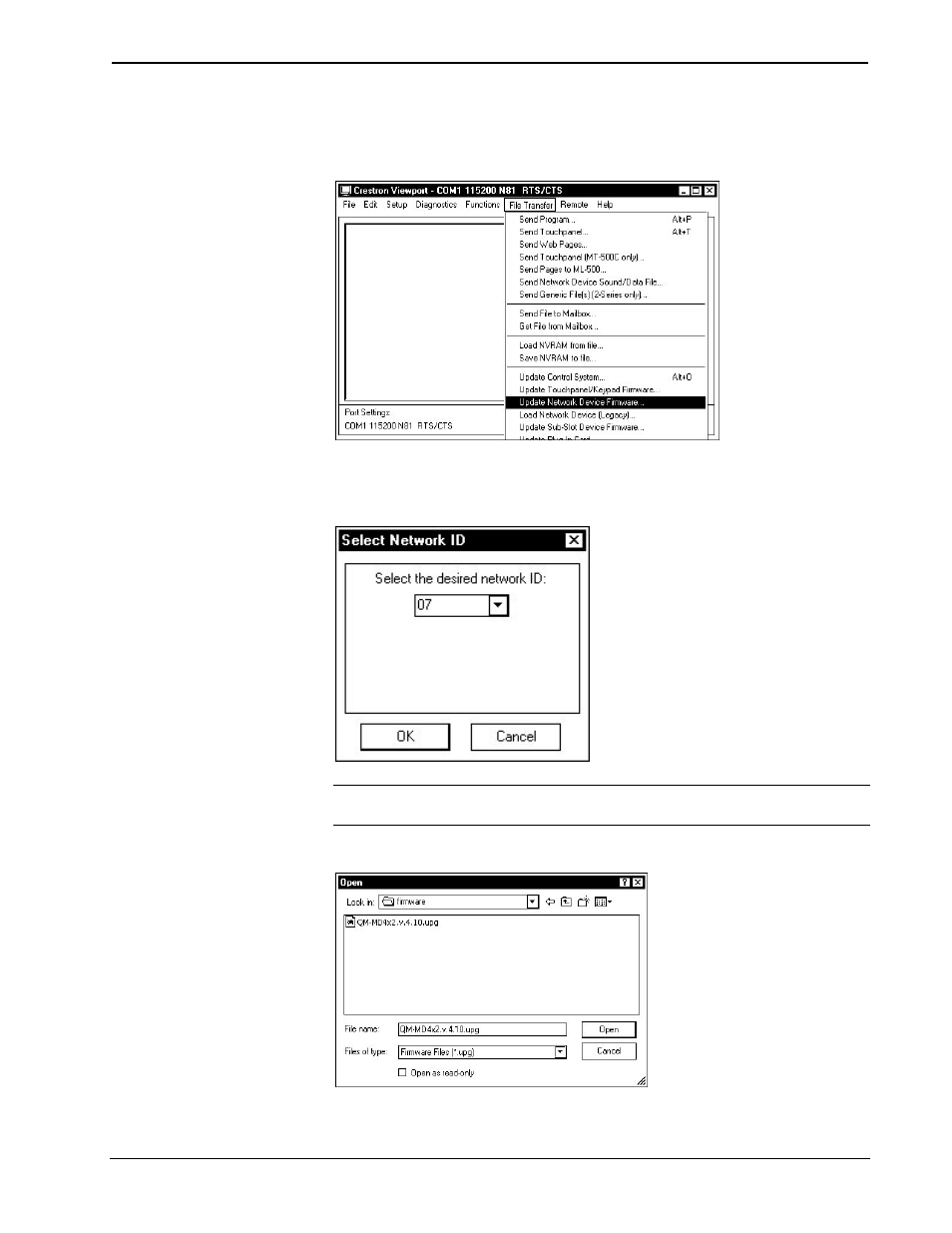

2. As shown after this step, select File Transfer | Update Network
Device Firmware… from the Viewport menu bar.
File Transfer | Update Network Device Firmware… Command
3. As shown after this step, select the Net ID of the MD4x2 and then click
OK. The “Open” window appears (refer to the subsequent graphic).
“Select Network ID” Window
NOTE: When transferring any Cresnet file (touchpanel project/firmware), lower the
port speed baud rate to 38400 to match the Cresnet bus speed.
“Open” Window
4. Browse to the desired .upg file and click Open to begin the transfer.
Operations Guide - DOC. 6278
QuickMedia Distribution System: QM-MD4x2
• 27
