SKU 93853 For technical questions, please call 1-800-444-3353 PAGE 12
uNpAcKINg
When unpacking, check to make sure all the parts shown on the parts List on page
16 are included. If any parts are missing or broken, please call Harbor Freight Tools at
the number shown on the cover of this manual as soon as possible.
pRODucT FEATuRES
Note: For additional information regarding the parts listed in the following pages, refer
to the Assembly Diagrams on page 17.
cAuTION! Always make sure the Power Switch (66) of the Demolition Hammer is
in its “OFF” position and the tool is unplugged from its electrical outlet prior to
adding accessories or performing maintenance on the tool.
OIL cAp
(45)
SLIDER
(4)
FRONT cAp
(1)
KNOB
(105)
AuXILIARY HANDLE
(104A)
pOWER SWITcH
(66)
VARIABLE
SpEED cONTROL
(72)

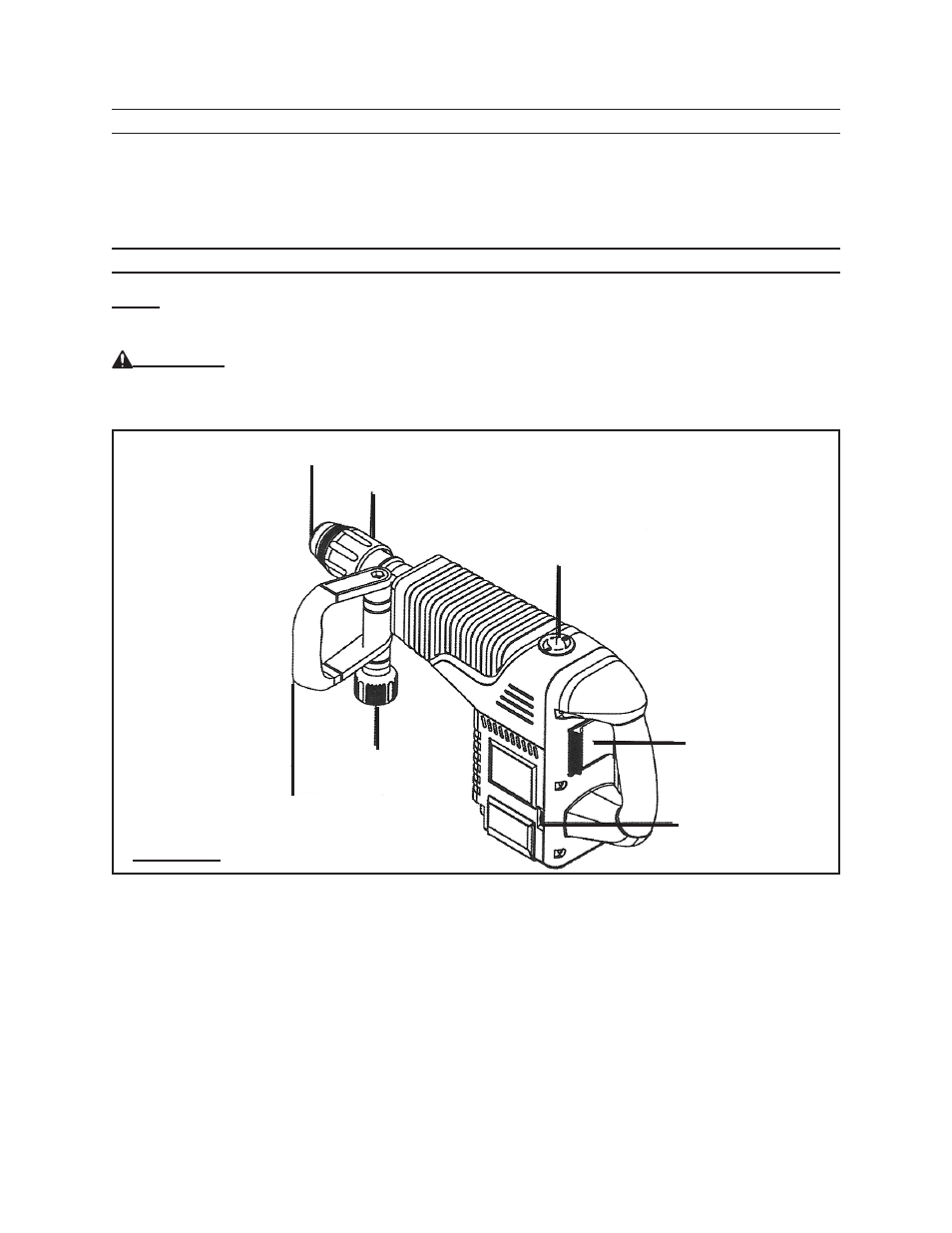

FIguRE E
1. Oil cap (45): Prior to the Demolition Hammer’s first use, remove the Oil Cap
and check to make sure the tool is properly filled with grease. If necessary, fill
the tool with approximately 1-1/4 ounces of #3 Lithium-based grease (not
included). Then, replace the Oil Cap. Thereafter, replace the grease at the end
of every 70 to 80 hours of tool use. (See Figure E.)
power Switch (66): 2. The Demolition Hammer is switched “ON” by the slide
switch located in the rear Handle (62). To turn the tool “ON”, slide the switch to
the right. To turn the tool “OFF”, slide the switch to the left. (See Figure E.)
