After attaching all necessary cables to your monitor and computer, (See

Connecting Your Monitor

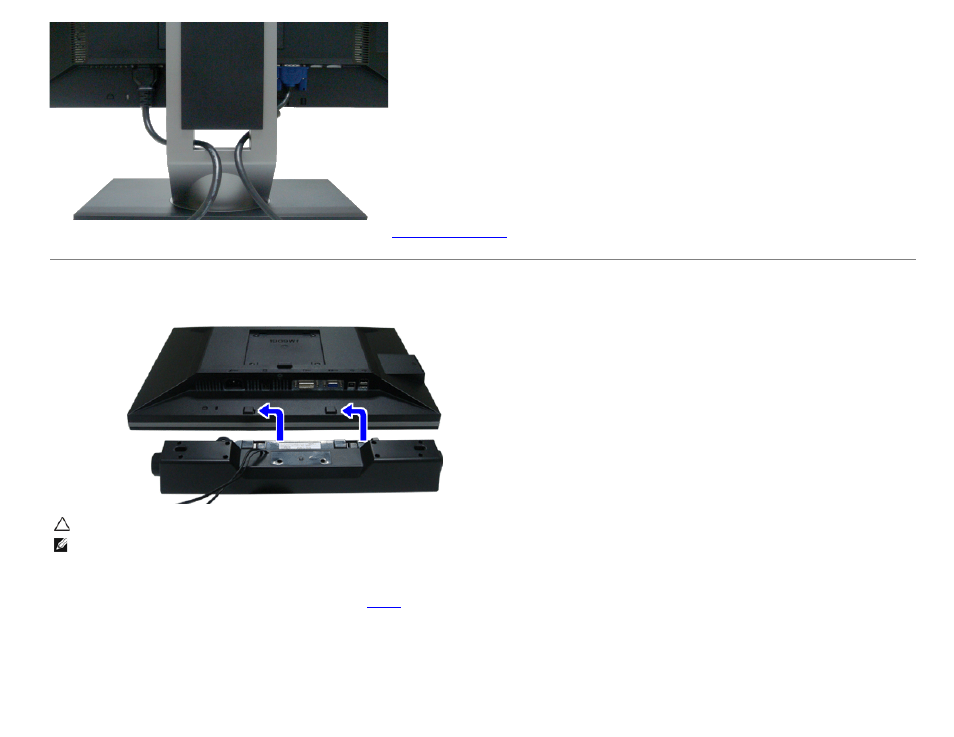

for cable attachment,) use the cable management slot to organize all cables as shown

above.

Attaching the Dell Soundbar

CAUTION:

Do not use with any device other than Dell Soundbar.

NOTE:

Soundbar Power Connector +12V DC output is for optional Dell Soundbar only.

1. Working from the rear of the monitor, attach the Soundbar aligning the two slots with the two tabs along the bottom rear of the monitor.
2. Slide the Soundbar to the left until it snaps into place.
3. Connect the soundbar to the Audio Power DC-out socket (see

bottom

view for details).

4. Insert the lime-green mini stereo plug from the rear of the Soundbar into the computer's audio output jack.

Removing the Stand
