Removing the mSATA Drive | 33
Removing the mSATA Drive
WARNING: Before working inside your computer, read the safety information
that shipped with your computer and follow the steps in "Before You Begin" on
page 9. After working inside your computer, follow the instructions in "After
Working Inside Your Computer" on page 11. For additional safety best practices
information, see the Regulatory Compliance Homepage at
dell.com/regulatory_compliance.
Prerequisites
Remove the computer cover. See "Removing the Computer Cover" on page 15.
Procedure

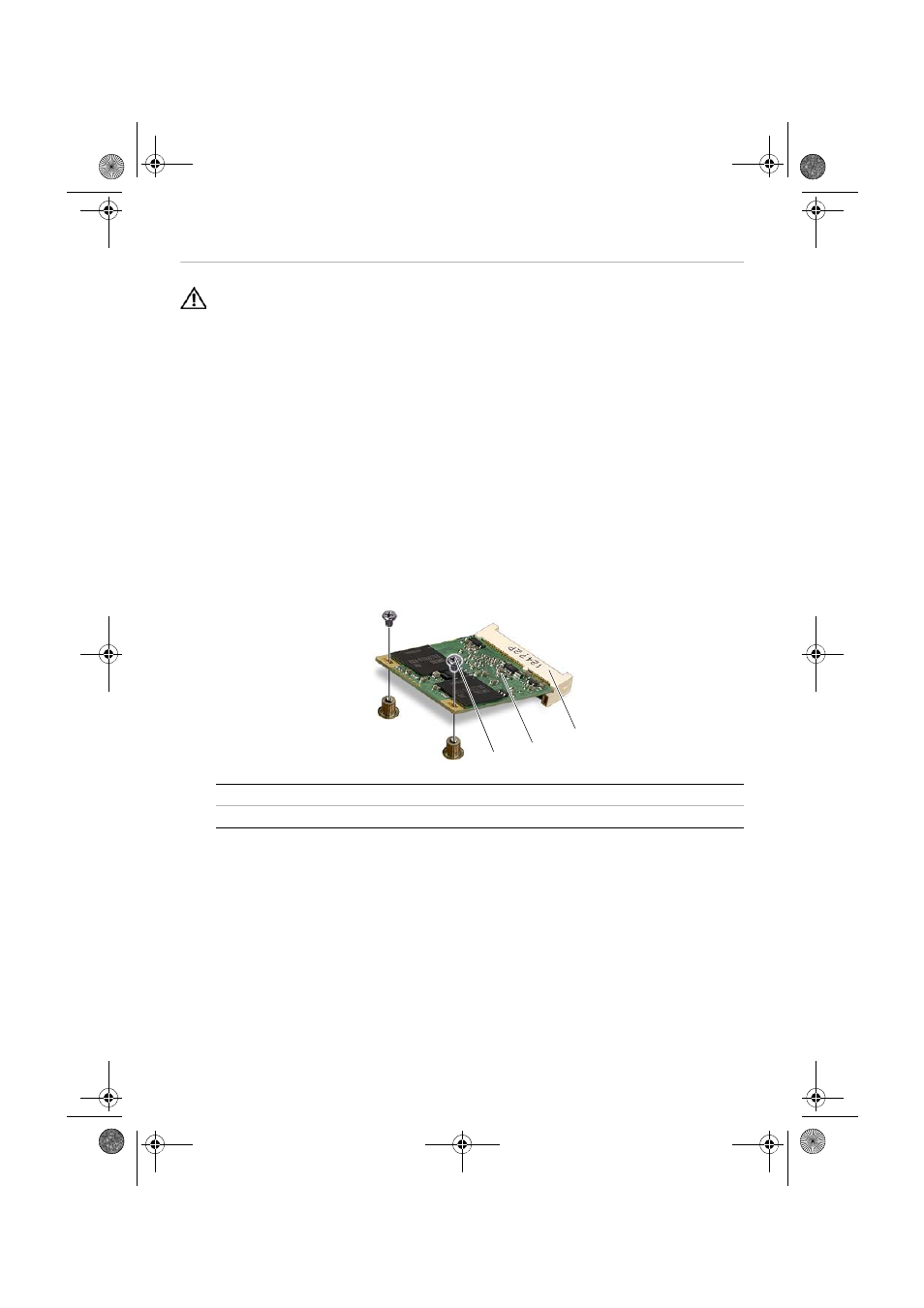

1 Remove the screws that secure the mSATA drive to the system board.
2 Lift the mSATA drive away from the system-board connector.
1 screws (2) 2 mSATA drive
3 mSATA-drive connector
1
2
3
