Activate the computer and the monitor to gain access to the OSD.
NOTE: This monitor is ENERGY STAR ® -compliant.
* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.
** Maximum power consumption with max luminance, Dell Soundbar, and USB active.

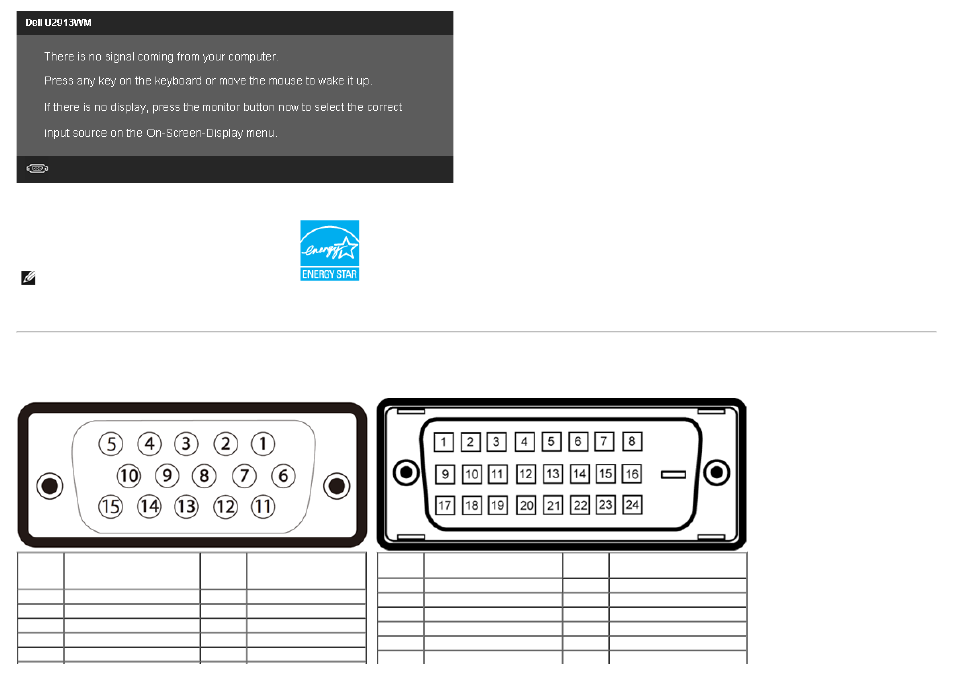

Pin Assignments
VGA Connector DVI Connector
Pin
Number
15-pin Side of the
monitor connector
(Cable not included)
Pin
Number
15-pin Side of the
monitor connector
(Cable not included)
1 Video-Red 9 Computer 5 V/3.3 V
2 Video-Green 10 GND-sync
3 Video-Blue 11 GND
4 GND 12 DDC data
5 Self-test 13 H-sync
Pin
Number
24-pin Side of the
monitor connector
Pin
Number
24-pin Side of the
monitor connector
1 TMDS RX2- 13 Floating
2 TMDS RX2+ 14 +5 V/+3.3 V power
3 TMDS Ground 15 Self test
4 Floating 16 Hot Plug Detect
5 Floating 17 TMDS RX0-
6 DDC Clock 18 TMDS RX0+
