Installing the Optical Drive
1. Lift the release latch, and slide the optical-drive cage inside the compartment.
2. Press on the clasp to release the latch and thread the cables into the holder.
3. Connect the power cable to the back of the optical drive.
4. Connect the data cable to the back of the optical drive.
5. Install the cover.
6. Follow the procedures in After Working Inside Your Computer .
Removing the Hard Drive
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the cover.

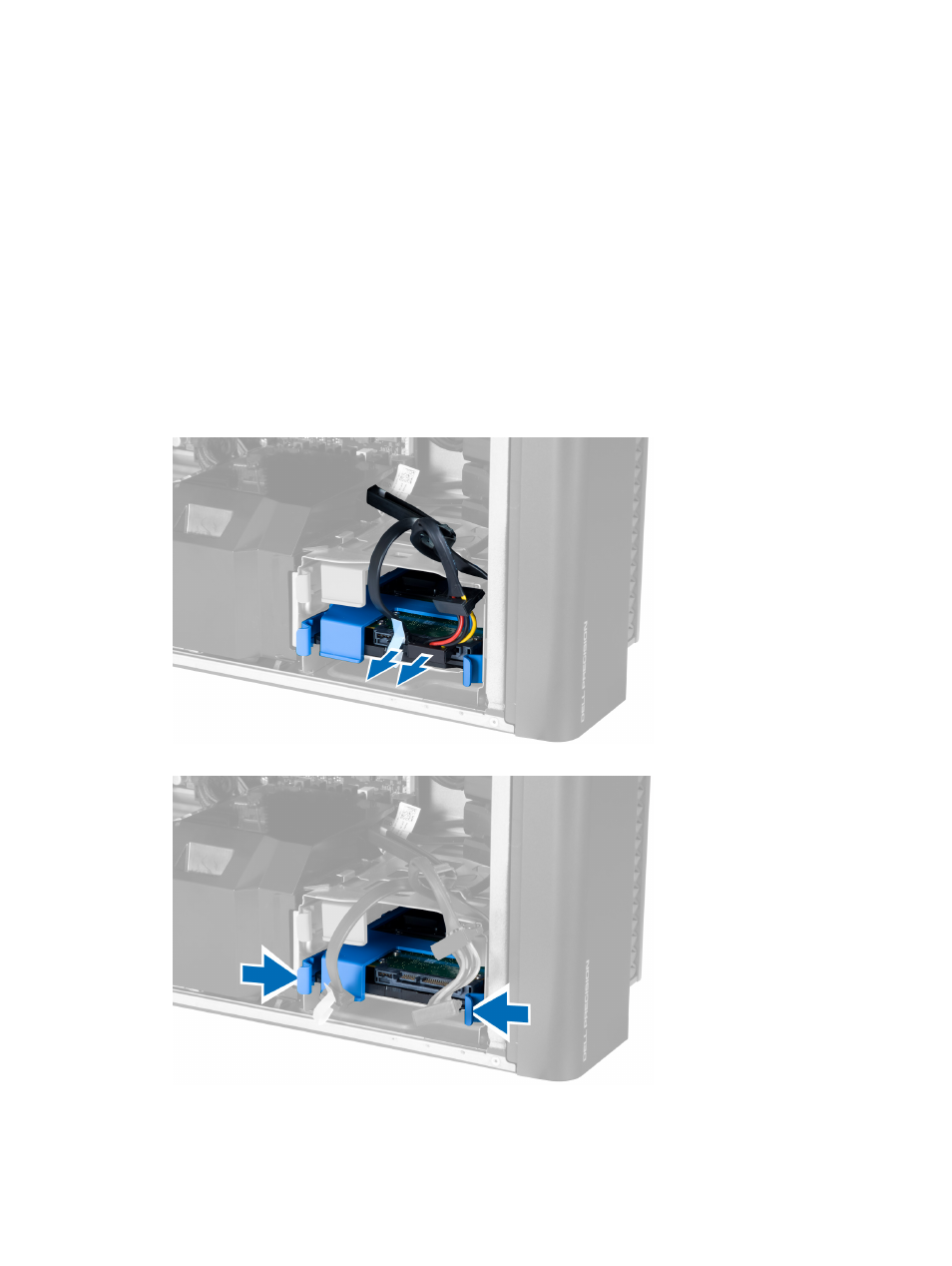

3. Disconnect the power supply and data cables from the hard drive.
4. Press in on the latches on either side of the hard-drive bracket.
