Side view bottom view – Dell S2740L Monitor User Manual
Page 8

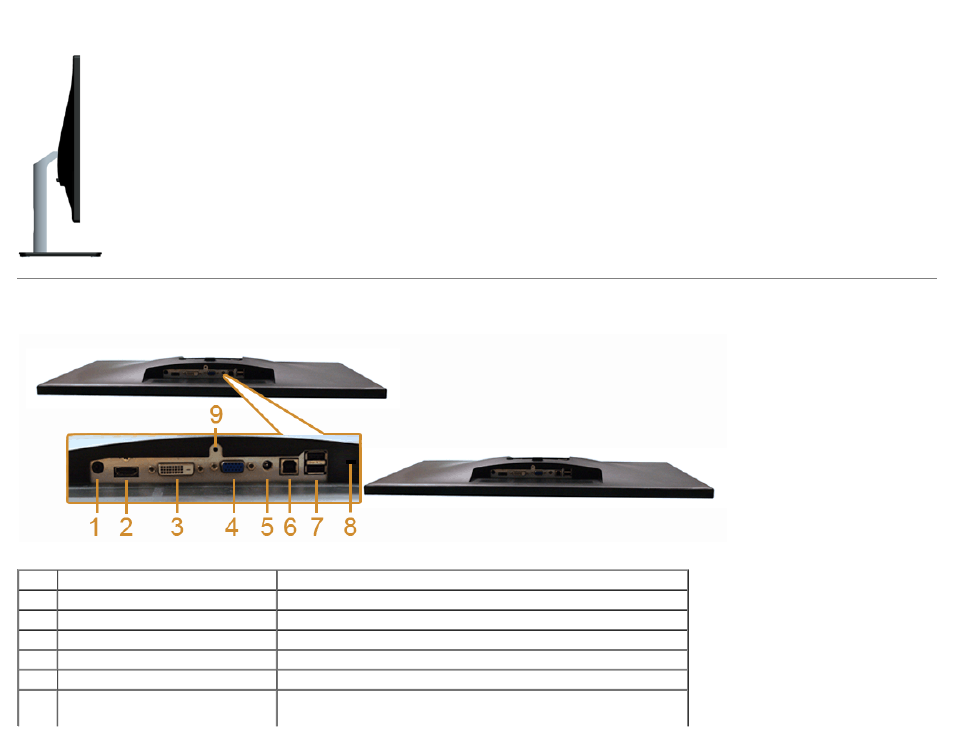

Side View
Bottom View
Bottom view without monitor stand
Label
Description
Use
1
Audio Line-out
Connect your speakers.*
2
HDMI connector
Connect your computer HDMI cable.
3
DVI connector
Connect your computer DVI cable.
4
VGA connector
Connect your computer VGA cable.
5
DC power cord connector
Connect the power cable.
6
USB upstream port
Connect the USB cable that came with your monitor to the monitor and the
computer. Once this cable is connected, you can use the USB connectors on
