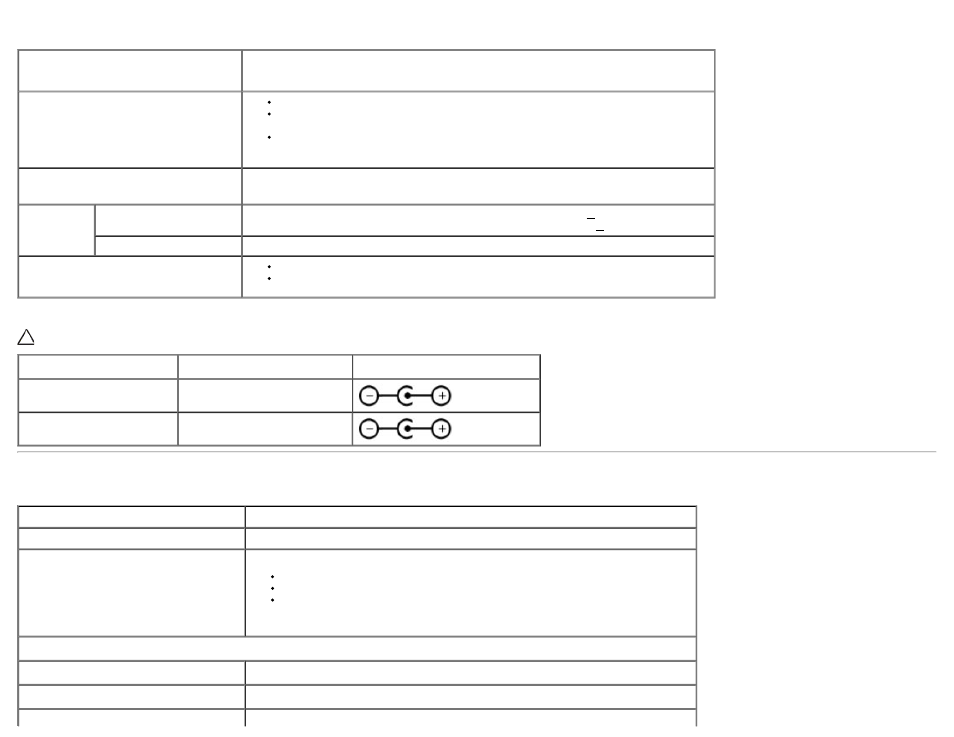

background image

Electrical Specifications

Model

S2740L

Video input signals

Analog RGB, 0.7 Volts +/- 5%, positive polarity at 75 ohm input impedance

Digital DVI-D TMDS, 600 mV for each differential line, positive polarity at 50 ohm

input impedance

HDMI, 600mV for each differential line, 100 ohm input impedance per differential

pair

Synchronization input signals

Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG (Composite

SYNC on green)

AC/DC

adapter*

Input

voltage/frequency/current

Delta adapter ADP-40DD B: 100 VAC to 240 VAC / 50 Hz to 60 Hz + 3 Hz / 1.5 A (Max.),

Lite-On adapter PA-1041-71: 100 VAC to 240 VAC / 50 Hz or 60 Hz + 3 Hz / 1.2 A (Max.)

Output voltage/current

Output: 12 VDC / 3.33 A

Inrush current

120 V : 30 A (Max)

240 V : 60 A (Max)

*Qualified Compatible AC/DC adapters:

CAUTION:

To avoid damage to the monitor, use only the adapter designed for this particular Dell monitor.

Manufacturer

Model

Polarity

Delta

ADP-40DD BA

Lite-On

PA-1041-71TP-LF

Physical Characteristics

Model

S2740L

Connector type

15-pin D-subminiature, blue connector; DVI-D, white connector; HDMI

Signal cable type

Digital: attachable, DVI-D, solid pins, shipped detached from the monitor

Digital: HDMI

Analog: attachable, D-Sub, 15 pins, shipped detached from the monitor

Dimensions (with stand)

Height

458.7 mm (18.06 inches)

Width

641.9 mm (25.27 inches)

Depth

215.8 mm (8.50 inches)
