FIT GRILL PAN CARRIER
1. Carefully locate the grill pan carrier under the grill canopy at the front. DO
NOT ENGAGE IT IN THE SLOT.
2. Support the carrier, swing it upwards at the rear and locate it in the holes
in the splashback.
3. Locate the front pegs of the carrier into the slots at the front of the
grill. Carefully pull the carrier downwards until it locks into position.

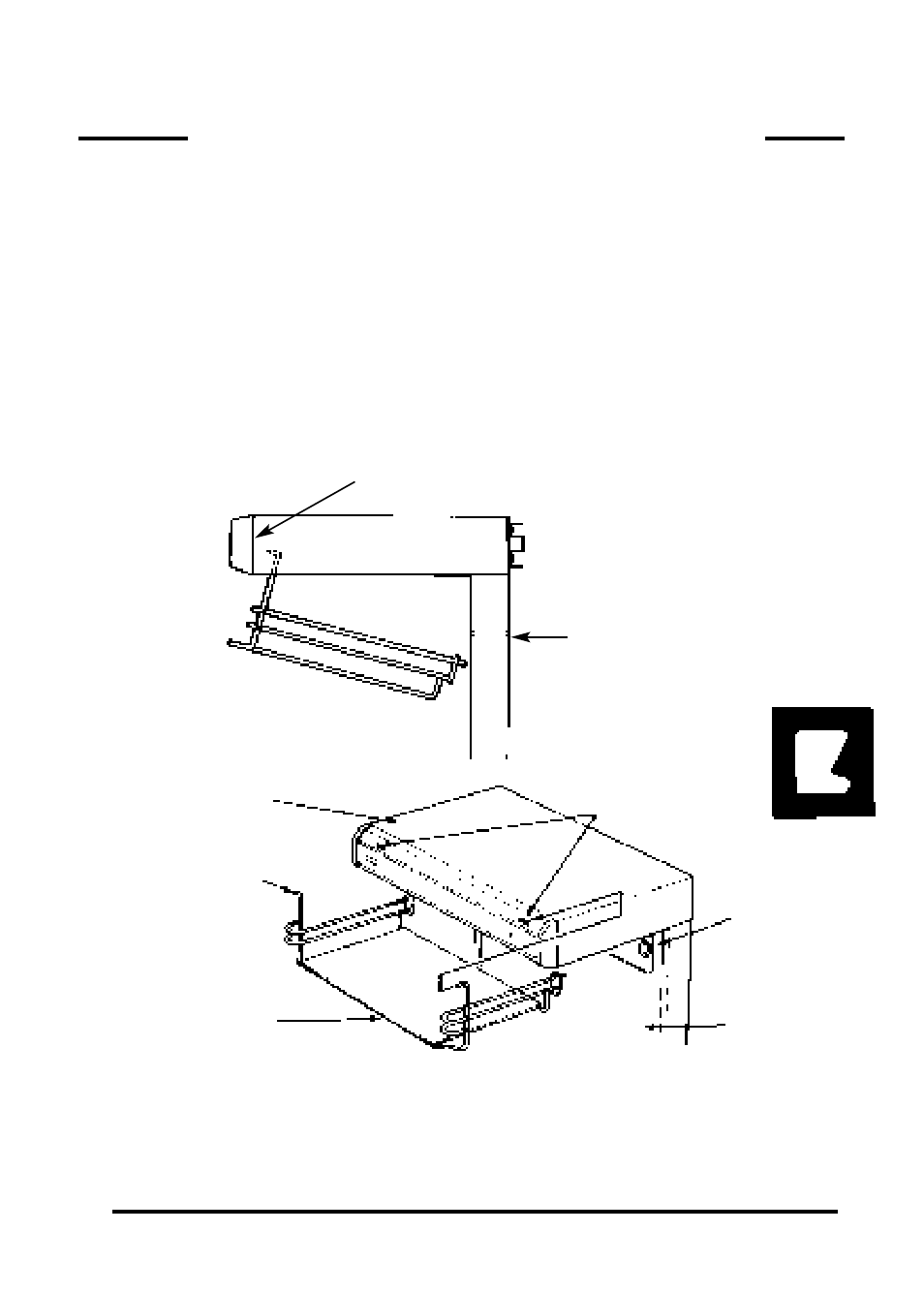

INSTALLATION INSTRUCTIONS
1. LOCATE UNDER
GRILL FRAME
DO NOT ENGAGE
IN SLOT.
3. LOCATE FRONT PEGS OF
CARRIER INTO
SLOTS AT FRONT OF
GRILL AND PULL CARRIER
DOWN UNTIL LOCKED INTO
POSITION.
SPLASHBACK HOLE
LOCATION
2. SWING REAR OF ASSEMBLY
UPWARDS AND
LOCATE IN HOLES IN
SPLASHBACK
GRILL CANOPY
FRONT ARMS
FRONT PEG
LOCATION SLOTS
REAR PEG
LOCATION
HOLES
SPLASHBACK
GRILL PAN CARRIER
