- 19 -
1 . Remove front glass. (See "Glass Removal" Section)
2. Remove logs from the packaging.
As with all plastics — these are not toys
and should be kept away from children and
infants.
3. Place rear log on rear bracket (ensure log is seated
properly, leveled and centered to the unit), so it will not
move from side to side and it is firmly positioned on the
bracket.
4. Place front left log on top of burner, left side. Use log's
bottom holes to locate it into the left bracket log locator
studs.
5. Place front right log on top of burner, right side. Use log's
bottom holes to locate it into the right bracket log locator
studs.
6. Place ember material on top of burner. (See "Ember
Material Placement" Section).
7. Place top left log onto locator notches. Ensure log is
secure.
8. Place top right log onto locator notches. Ensure log is
secure.
LAVA ROCK
The lava rock provided with this fireplace must be
placed on the firebox base on either side of the burner
assembly.
Under no circumstances should this lava
rock be placed on any part of the burner
assembly.
front logs. Do NOT pack down, leave in fluffy, loose
condition for most realistic ember effect.
EMBER MATERIAL PLACEMENT
Separate the ember material into small pieces, roughly
1/2" in diameter and place onto the burner in front of the

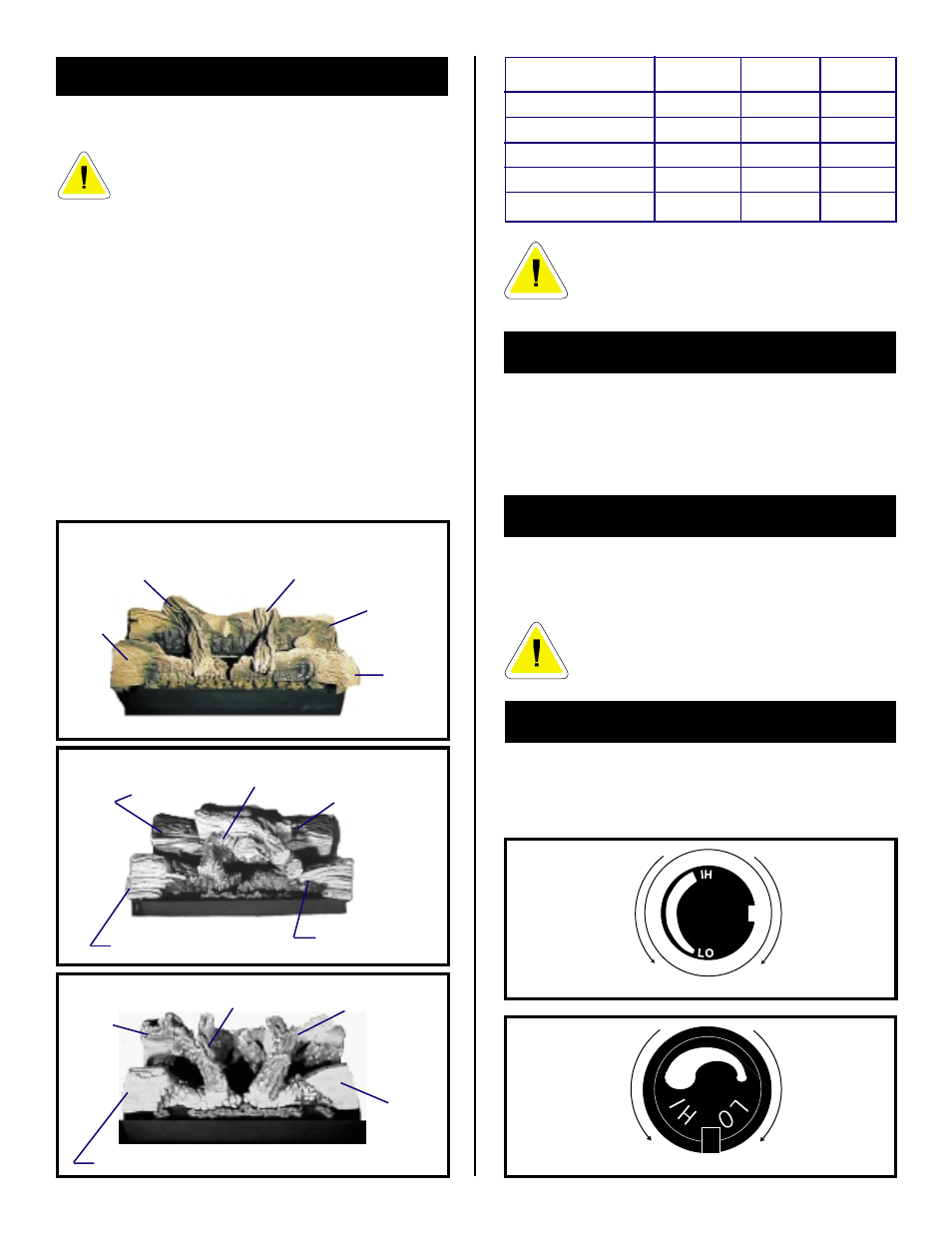

INSTALLATION OF LOGS
Fig. 43
FLAME ADJUSTMENT
For fireplaces equipped with Hi/Lo valves, flame adjust-
ment is accomplished by rotating the Hi/Lo adjustment
knob located near the centre of the gas control. Fig. 46a
and 46b.
Fig. 46a
Front Left Log BA2 BB6 BC5
Front Right Log BA3 BB7 BC6
Rear Log BA4 BB8 BC7
Top Left Log BA5 BB9 BC8
Top Right Log BA6 BB10 BC9
Top logs must be placed properly onto
notches.
DBR39
DBR36
Fig. 42
DBR33
Fig. 44
LOGS DBR33 DBR36 DBR39
Fig. 46b
BA5
Log Top Left
BA2
Log
Front
Left
BA6
Log Top Right
BA4
Log Rear
BA3
Log Front
Right
BB8
Log Rear
BB9
Log Top Left BB10
Log Top Right
BB6
Log Front Left
BB7
Log Front Right
BC7
Log Rear
BC8
Log Top Left
BC9
Log Top Right
BC5
Log Front Left
BC6
Log Front
Right
Turn
counterclockwise
to decrease
flame height
Turn clockwise
to increase
flame height
Honeywell Valve
Turn
counterclockwise
to increase
flame height
Turn clockwise
to decrease
flame height
SIT 820 Valve
