Desa Tech CGR50PA - Manual (Page 39)

39
100793

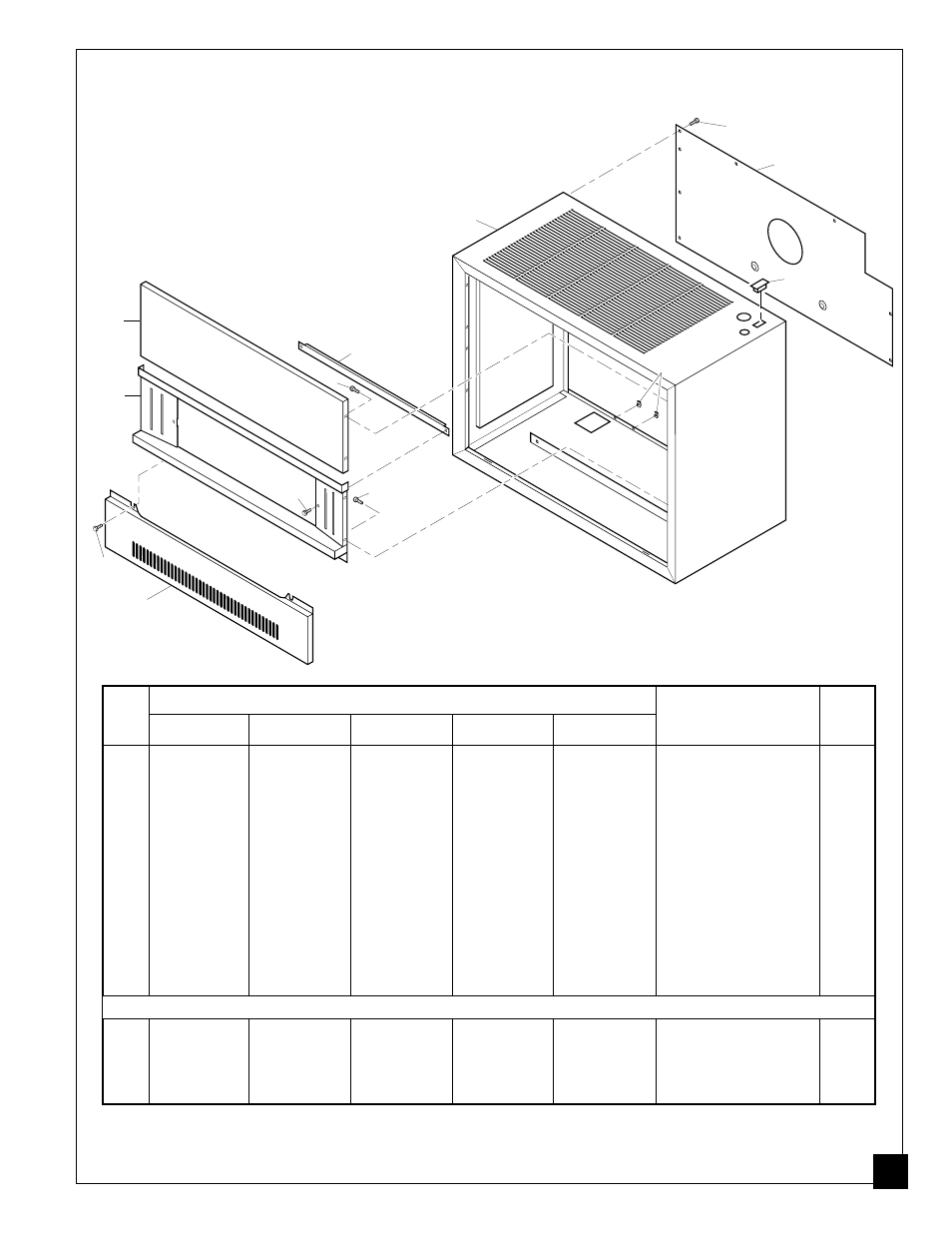

ILLUSTRATED
PARTS LIST
Cabinet
Assembly for
Radiant Models
This list contains replaceable parts used in your heater. When ordering parts, follow the
instructions listed under Ordering Replacement Parts on page 36 of this manual.
1
2
3
4
5
6
6
7
8
11
6
10
9
PART NUMBER FOR
KEY
NO.
CGR65BPA CGR65PA CGR50BPA CGR50PA CGR35PA DESCRIPTION QTY.
1 100202-03 100202-03 100202-02 100202-02 100202-01 Lower Front Panel 1
2 098304-01 098304-01 098304-01 098304-01 098304-01 Screw, #10-16 x 3/8" 2
3 100053-03BS 100053-03BS 100053-02BS 100053-02BS 100053-01BS Hearth Assembly 1
(includes items 5 & 7)
4 100204-03 100204-03 100204-02 100204-02 100204-01 Top Panel 1
5 098304-02 098304-02 098304-02 098304-02 098304-02 Screw, #6-20 x 3/8" 2
6 M11084-26 M11084-26 M11084-26 M11084-26 —— Screw, #10-16 x 3/8" 17
—— —— —— —— M11084-26 Screw, #10-16 x 3/8" 19
7 100205-03BS 100205-03BS 100205-02BS 100205-02BS 100205-01BS Glass Guard 1
8 100203-03 100203-03 100203-02 100203-02 100203-01 Cabinet Assembly 1
9 099123-01 099123-01 099123-01 099123-01 099123-01 Thermobulb Clip 2
10 100101-03BS 100101-03BS 100101-02BS 100101-02BS 100101-01BS Cabinet Back 1
11 —— 099997-01 —— 099997-01 099997-01 Switch Plug 1
PARTS AVAILABLE - NOT SHOWN
099988-02 099988-02 099988-02 099988-02 099988-02 Lighting Instructions
Decal
1
099987-02 099987-02 099987-02 099987-02 099987-02 Control Position Decal 1
100154-02 100154-02 100154-02 100154-02 100154-02 Warning Decal 1
