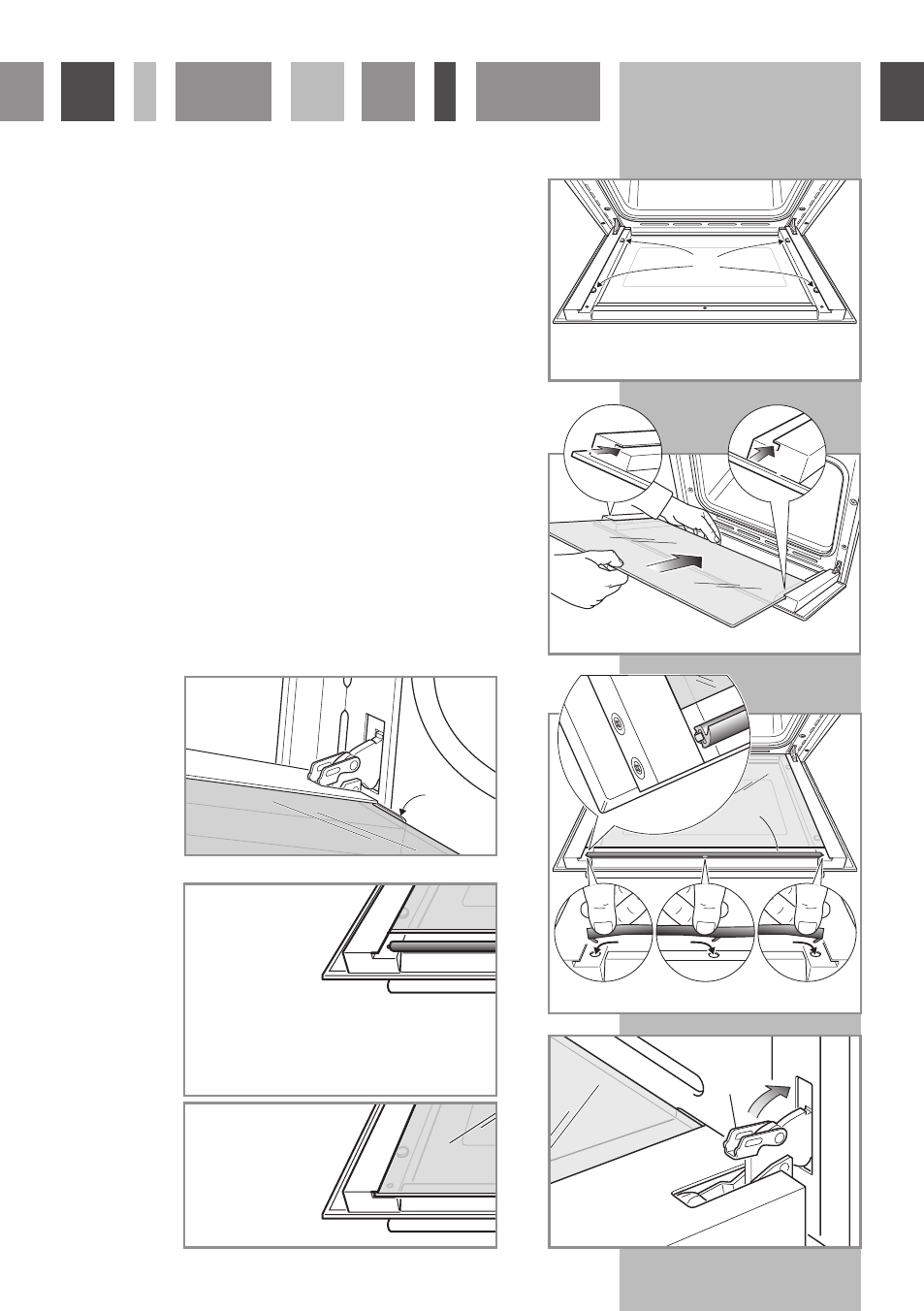

Replacing the Inner Pane of Glass
1. Make sure the door is locked open (see fig. 15).
2. Replace the inner pane:
– Check that the four rubber pads are in place (D in Fig. 18).
– Insert the pane in the left E and right F slide guides (fig. 19),
and gently slide it to the retainers H (fig. 20).
– Top oven door only: reassemble the seal G in the correct way
(fig. 21) by hooking the no. 3 fixing hooks in the proper holes
(fig. 22).
– Unlock the oven door by opening it completely and closing
the lever A on the left and right hinges (Fig. 23).
A
Fig. 18
E
F
H
Fig. 20
H
G
Fig. 21
Fig. 22
It is normal the opened gap between
the top edge of the inner glass and the
sealed gasket. This allows the cooling
air circulation.
The top oven
door has a
sealed gasket in
the top part.
The bottom
oven door has
not a sealed
gasket in the
top part.
H
D
G
A
F
E
Fig. 19
Fig. 23
