12

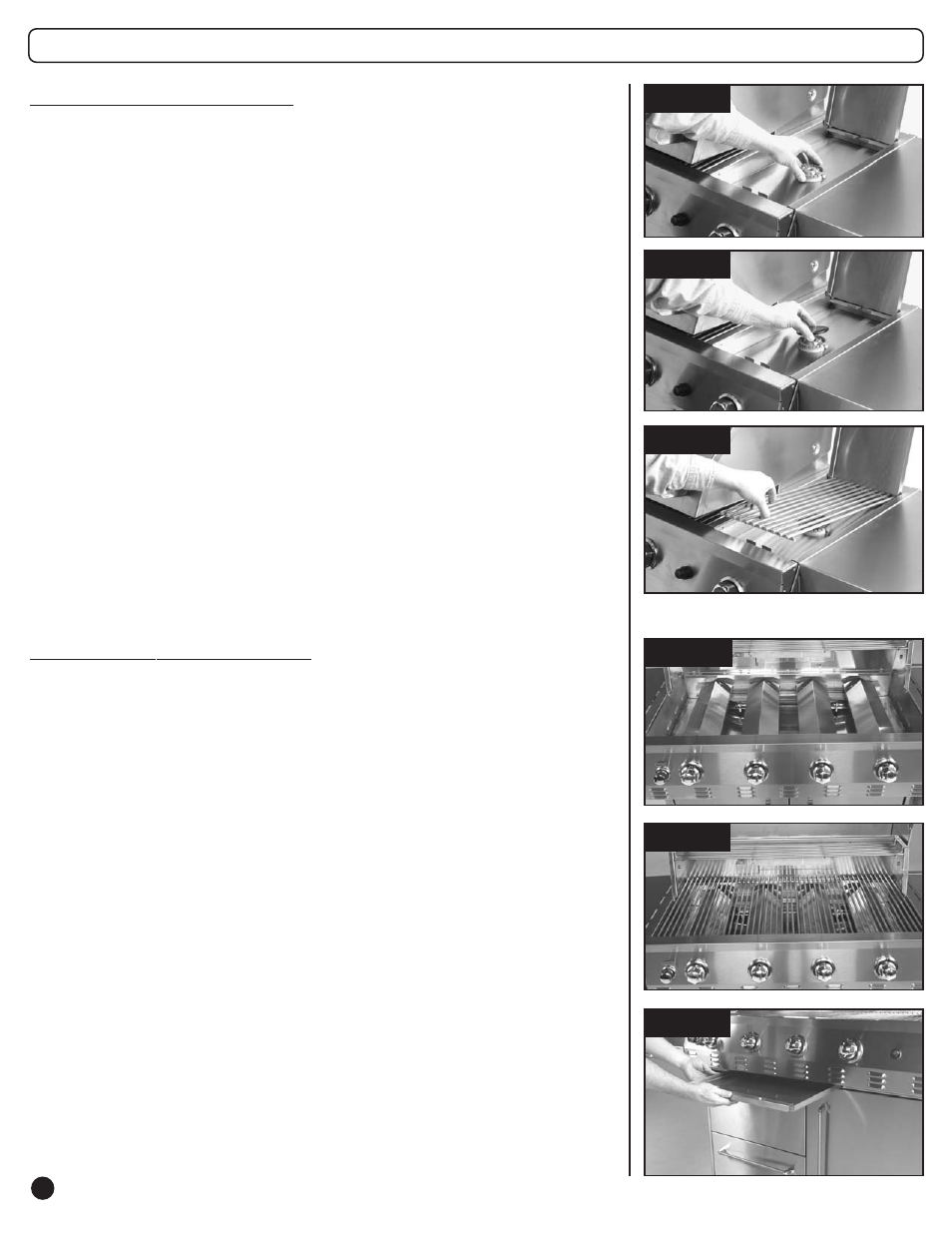

Grill Assembly — 8300 Series
1. Insert the row of four heat tents with the triangle ridges
facing up (Fig. 19).
Interior Parts Installation Fig. 19
Fig. 20
Fig. 21
2. Install the four cooking grates on the ledges provided on the grill
to create your cooking surface (Fig. 20).
3. Place the warming shelf on the support brackets. The end
support rods slip inside the slots in the support brackets (Fig. 20).
4. Remove the label from the drip tray. Install the drip tray by
sliding it into position as shown (Fig. 21).
1. Install the burner and cap (Fig. 16 and Fig. 17).
Fig. 16
Fig. 17
Fig. 18 2. Install the grate over the burner (Fig. 18).
Side Burner Installation
