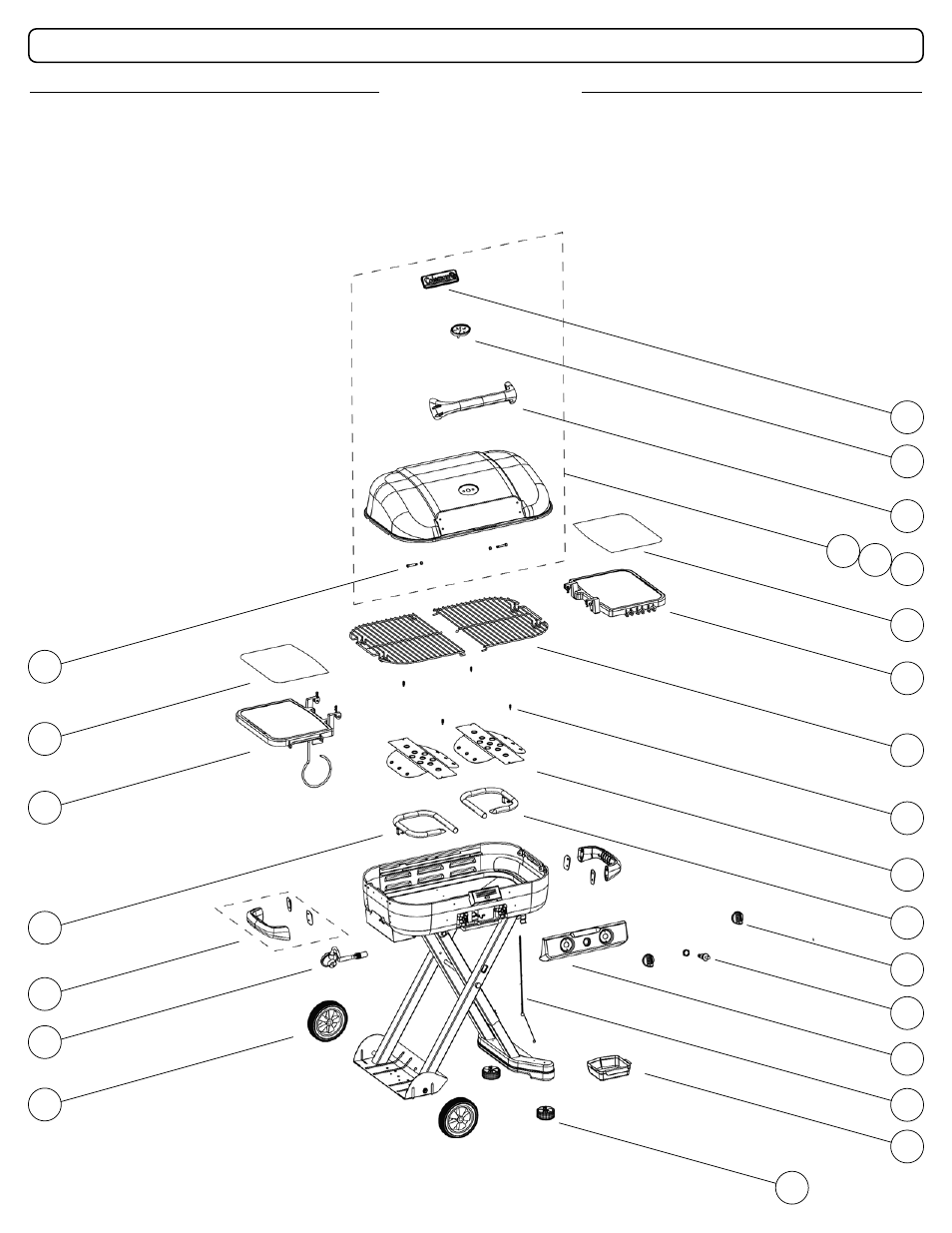

Replacement Parts List — 9928 Series
No. Part Number Description
1 9928-1951 Logo Plate
2 9928-1581 Thermometer Assembly
3 9928-1291 Lid Handle
4a 9928-5051 Lid Assembly - (1) piece porcelain
4b 9928-5141 Lid Assembly - (3) piece porcelain
4c 9928-5011 Lid Assembly - (3) piece Stainless Steel
5 9928-1821 SS Side Table Insert - Right
6 9928-5091 Side table Assembly - Right (no insert)
7 9928-1251 Grate
8 9928-3941 Screws (Heat Tent) (4 pk)
9 9928-3921 Heat Tent
10 9928-5641 Burner Assembly - Right
11 9928-1151 Control Knob
12 9928-2351 Igniter
No. Part Number Description
13 9928-1131 Fascia
14 9928-5561 Match Extension Assembly
15 9928-1241 Grease Tray
16 9928-5651 Threaded Foot Assembly
17 9928-2171 Wheel
18 9928-5251 Regulator Assembly
19 9928-5551 Side Handle Assembly
20 9928-5631 Burner Assembly - Left
21 9928-5081 Side Table Assembly - Left (no insert)
22 9928-1811 SS Side Table Insert - Left
23 9928-1501 Lid Hinge Kit (2 pk)
3
4c
6
16
7
8
9
10
11
15
17
20
21
19
18
2
12
14
13
Unless noted otherwise,
all repair parts listed are
for one item only.
4b
4a
5
22
23
1
