In extremely cold temperatures, the movement of the picture may be slow and
the picture may be dark, but this is not a malfunction. The set will work
normally once the temperature increases.
Small black and shiny dots inside the liquid crystal panel are normal for liquid
crystal product.
DESCRIPTION
The VMA7192 is a TFT active matrix color LCD monitor which delivers a striking
picture and superior image resolution. The VMA7192 can be used to enjoy video
images with the Clarion video sources, even if no TV tuner is connected.
PACKAGE CONTENTS
7" monitor
5m long cable with 4 male connectors (Video 1, Video 2, Power/Ground,
3.5mm IR)
Hardware (One 1/4-20 with nut and washer)
50cm 2 Pin Power cable

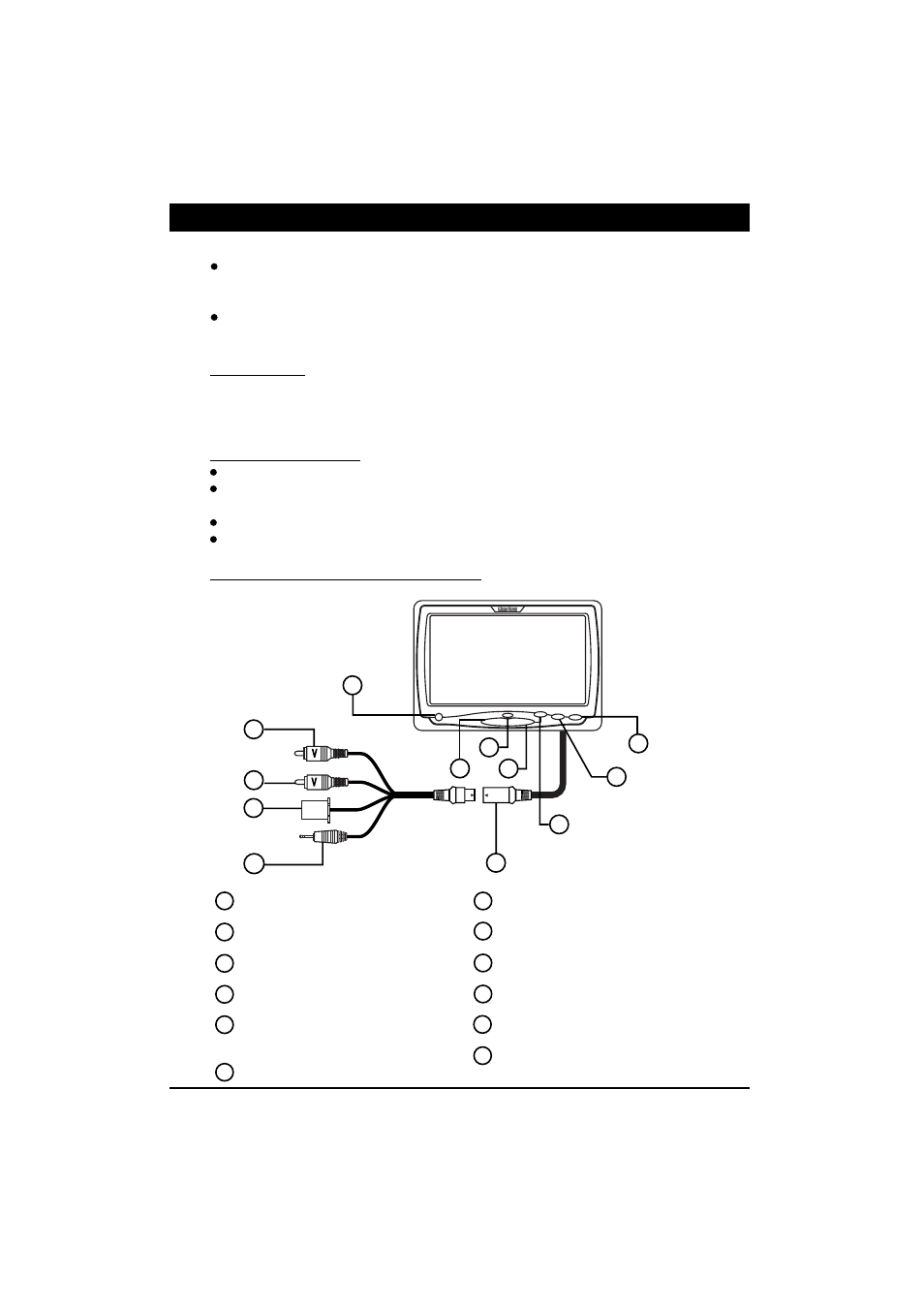

BUTTON AND CONNECTOR LOCATIONS
5
1
3
2
6
4
7
8
9
10
1 Power Button
2 IR Sensor
3 Picture Control Button
4 Wide Mode (16:9/4:3 Format)
5 Source Button
(Video 1/Video 2 Select)
6 8 Pin DIN Pigtail
7 Video 1 Input
8 Video 2 Input
9 Power Connector
10 IR Remote Out
11 Picture Select Up
12 Picture Select Down
2
11 12
