Christie Mirage S + 14K
Specifications
WWW.CHRISTIEDIGITAL.COM
Performance specifications are typical. Due to
constant research, specifications are subject to
change without notice.

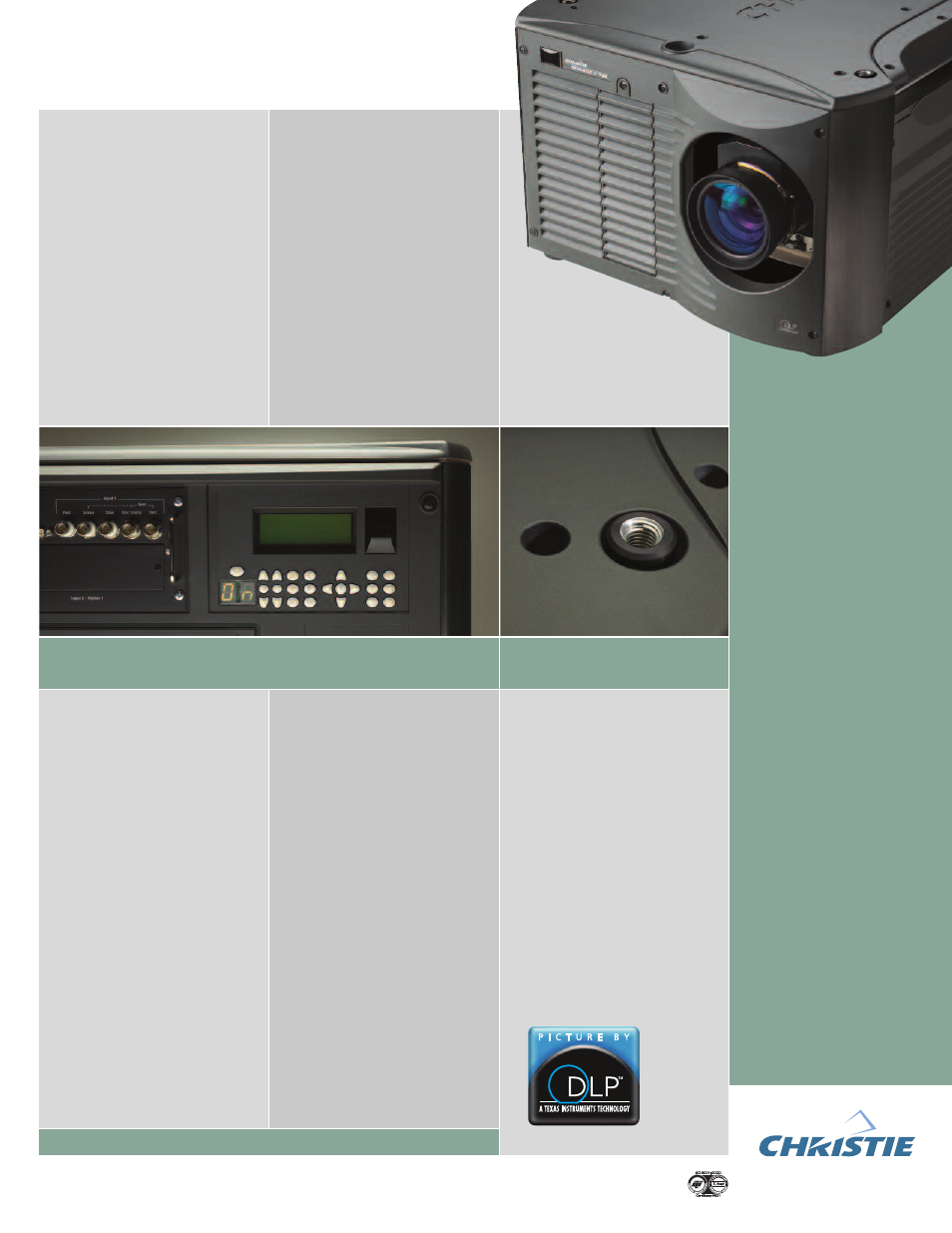

Built-in stacking points make rigging and
aligning the Christie Mirage S
+ 14K simple.
Built-in LCD text display shows status and error messages. The graphic user interface enables full
and easy control of the projector.
Corporate Offices
USA
10550 Camden Drive
Cypress, CA 90630
PH: 714-236-8610
FX: 714-503-3385
Toll free: 866-880-4462 (NA only)
[email protected]
CANADA
809 Wellington Street North
Kitchener, Ontario N2G 4Y7
PH: 519-744-8005
FX: 519-749-3136
Toll free: 800-265-2171 (NA only)
[email protected]
Worldwide Offices
UNITED KINGDOM
PH: +44 118 977 8000
FX: +44 118 977 8100
[email protected]
GERMANY
PH: +49 2161 664540
FX: +49 2161 664546
[email protected]
FRANCE
PH: +33 (0) 1 47 48 28 07
FX: +33 (0) 1 47 48 26 06
Mobile: +33 (0) 6 76 47 43 62
[email protected]
SINGAPORE
PH: +65 6877 8737
FX: +65 6877 8747
[email protected]
SHANGHAI
PH: +86 21 6278 7708
FX: +86 21 6270 5816
[email protected]
BEIJING
PH: +86 10 6561 0240
FX: +86 10 6561 0546
[email protected]
JAPAN
PH: +81 3 3559 7481
FX: +81 3 3599 7482
[email protected]
• 14,000 ANSI lumens (+/- 10%)
• 90% brightness uniformity
• Contrast: 450-600:1 ANSI, 1500-1800:1
full field (adjustable internal aperture)
DISPLAY TECHNOLOGY
AND RESOLUTION
• 3D 3-chip 0.95" Darkchip2™ DMD
• True SXGA + 1400 x 1050 resolution
INPUT SIGNAL
COMPATIBILITY
• VGA to QXGA (2048 x 1536)
• Accepts all current HDTV/DTV formats
• Multi-standard video decoder
• Horizontal and vertical scaling, all inputs
SCAN RATES
• Horizontal – 15 kHz to 120 kHz
• Vertical – 23.97 Hz to 150 Hz
PIXEL CLOCK
• 220 MHz
• 115 Hz refresh rate at SXGA+ resolution
• 120 Hz refresh rate at SXGA resolution
INPUTS, CONTROL
& NETWORKING
• RGBHV/YPbPr: 5 BNC
• DVI-I: digital/analog RGB/YPbPr (HDCP)
• One Composite video, one S-Video
• Two option slots – analog/digital modules
• 2 RS-232 ports and 1 RS-422 port
• On-board ChristieNET™ connectivity (RJ45)
• Built-in backlit keypad and IR remote
control
ADVANCED FEATURE SET
• Stereo Sync Harness
• Built-in edge-blending
• Comprehensive Color Adjustment (CCA™)
• Dark Interval Adjustment (DIA™)
• Minimum Delay Feature
• Picture in Picture
• Seamless switching
• Auto set-up, power-up feature
• Menus in five languages
• On-screen help
• 50 channel memories
LENS MOUNT
• Motorized horizontal and vertical offset
• Tool-free lens insertion system
• Scheimpflug (tilt) adjustment
• Built-in light shutter
• Internal electromechanical iris
LAMP
• 2.4kW Xenon Bubble lamp
• 1250 hours (typical) lifetime
LIGHT OUTPUT CONTROL
(LITELOC™)
• “Auto Brightness” (Intensity), “Lamp
Conserve” (Power), “Max Brightness” modes
POWER REQUIREMENTS
• 200 VAC to 240 VAC +/- 10% @ 50/60 Hz
• Power consumption: 4000W maximum
• Thermal dissipation: 13,648 BTU/hr
• Operating current: 20A @ 200V
DIMENSIONS
(excludes lens, feet, stacking points)
• Weight: 140 lb (63.6 kg)
• Shipping weight: 160 lb (72.7 kg)
• Size: 24.5" W x 32.1" L x 15.1" H
(631.4mm W x 814.8mm L x 384mm H)
STANDARD ACCESSORIES
• IR keypad (w/batteries)
• Line cord
• Stereo Sync Harness
• User manual
OPTIONAL ACCESSORIES
• Fixed Lenses: 0.73:1, 1.2:1
• Zoom Lenses: 1.45-1.8:1, 1.8-2.5:1,
2.5-4.5:1, 4.5-7.3:1
• Manual “Legacy” lens mount
• ChristieTWIST™ Image Warping and
Edge-Blending module
• Dual SD/HD-SDI, DVI and legacy
interface modules
• Wired remote control and RS-422
Two Way Controller
• Remote IR sensor
• Ethernet, RS-232 and RS-422 cables
• Service manual
• KoRE™ 10-bit librarian
• Lens adapter (for competitive lenses)
OPERATING ENVIRONMENTS
• Temp: 40 to 95˚ F (5 to 35˚ C)
• Humidity: 20 – 80% non-condensing
REGULATORY APPROVALS
• UL/CSA/IEC 60950 (3rd edition)
• FCC Class A, CE, CCC (pending)
• This product conforms to all relevant
European directives, standards, safety,
health and environmental concerns
WARRANTY
• 2 years parts and labor (including
light engine)
Designed with built-in handles,
an optimized airflow design and
multiple rigging points, the Christie
Mirage S
+ 14K is easy to install,
easy to use and easy to maintain.
For the most current specification information, please visit www.christiedigital.com
