795(1750)
905(2000) 3300(130)
3300(130)
600(24)
685(27)
A1234567
CLAMP
E
445(980)
500(20)
SERIES
M
Load
Center
Serial Number
Attachment Data
Truck Weight with Max. Battery
Capacity with Mast Vertical
Units of measure, kg/mm(lb/in)
Capacity
Truck Type
Capacity Plate
13 Capacity Plate

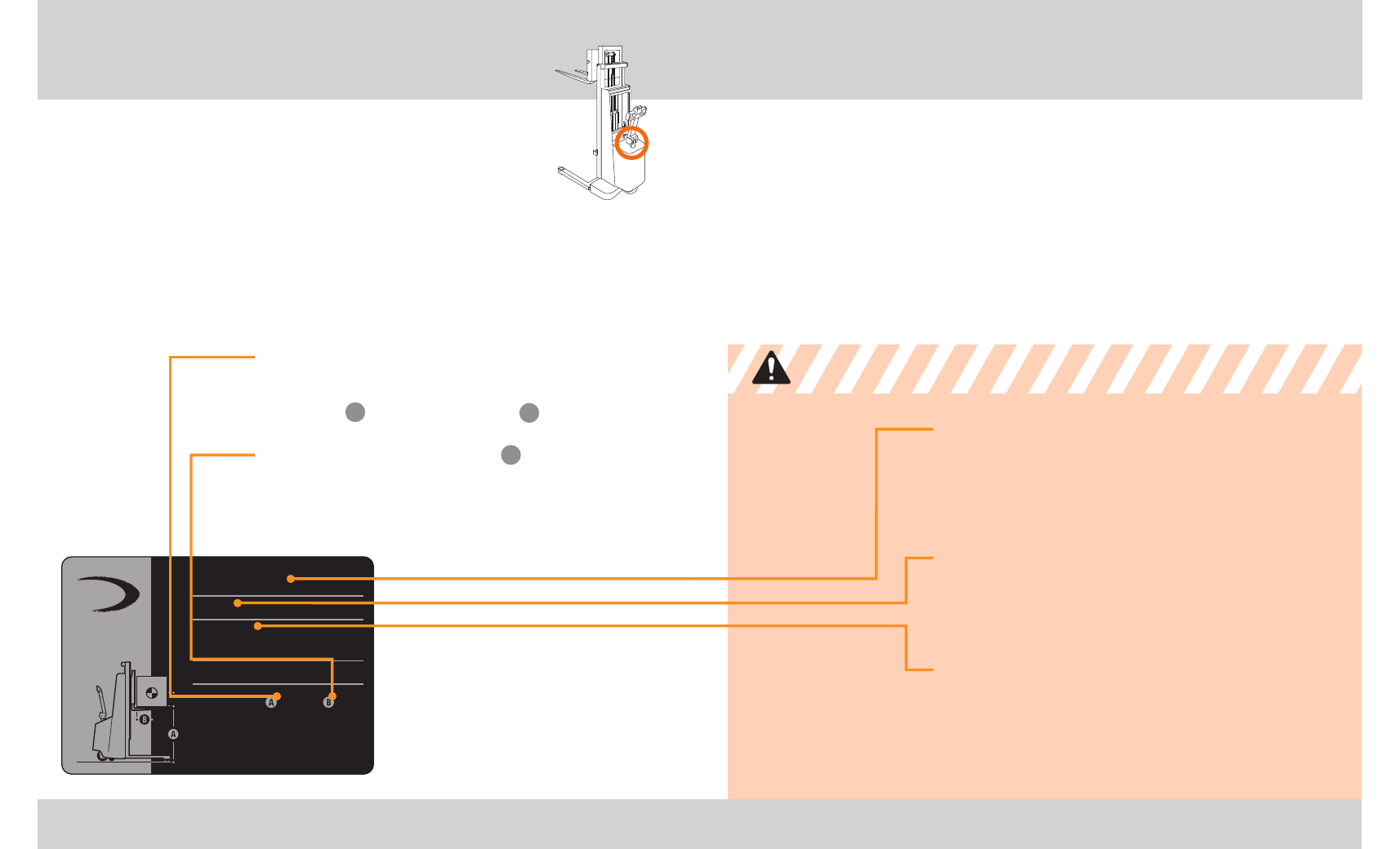

CAPACITY PLATE INFORMATION
The capacity plate is on the power unit
cover. It contains:
• Serial number
• Capacity information (load, load center and lift height)
• Truck type (a fire safety rating)
• Truck weight with battery (does not include load)
• Attachment information (if any)
READING YOUR CAPACITY PLATE
The capacity plate on the console contains the load,
load center, and lift height ratings for your truck.
For example: On the sample plate, 905kg (2000 lb) can
be lifted to 3300mm (130 in) at a 600mm (24 in)
load center.
Capacity is reduced as load center increases.
For example: On the sample plate, 905kg (2000 lb) can
be lifted if the load center is 600mm (24 in). But if the
load center is increased to 685mm (27 in), capacity is
reduced from 905kg (2000 lb) to 795kg (1750 lb).
SAMPLE
CAPACITY PLATE
The information
shown on this
sample plate does not
apply to your truck.
Note : ANSI requires that all data be
shown first in Metric units and then
USA units.
A B
B
CAUTION
You may not increase capacity if
load center is less than shown on
your capacity plate.
Know the Hazards
Capacity Plate 14
OTHER LIFT HEIGHTS & LOAD CENTERS
Contact Crown for capacities at lift heights or load centers
not given on your capacity plate.
TRUCK WEIGHT
Dockboards, elevators and some floors have limited
capacity. Check your capacity plate for the weight of your
truck. Remember to add the weight of the load you have
on the forks. Make certain you use the correct units of
measure.
TRUCK TYPE
Some truck types are not permitted in areas where there
are fire hazards. Watch for marked areas.
For example:
You must not operate a type E or ES truck in an area
restricted to EE or EX trucks.
ATTACHMENT DATA
If an attachment on your truck does not match the
information given here on your capacity plate, don't operate
your truck. Your capacity plate may be wrong. Report the
problem to your supervisor, or contact Crown.
