Installing the SmartSwitch 9000 Module
2-6
The Reset Switch
The Reset switch is located under the top plastic tab as shown in Figure 2-3.
Use the reset switch to reset the module’s processor, shutdown (power down) the
module, and/or restart the module.
• To reset the module’s i960 processor, press the reset switch twice within three
seconds.
• To shut down the module, press and hold the reset switch for three or more
seconds.
• To restart the module, press the reset switch momentarily.
SNMP management may be used to disable this switch to enhance module
security.

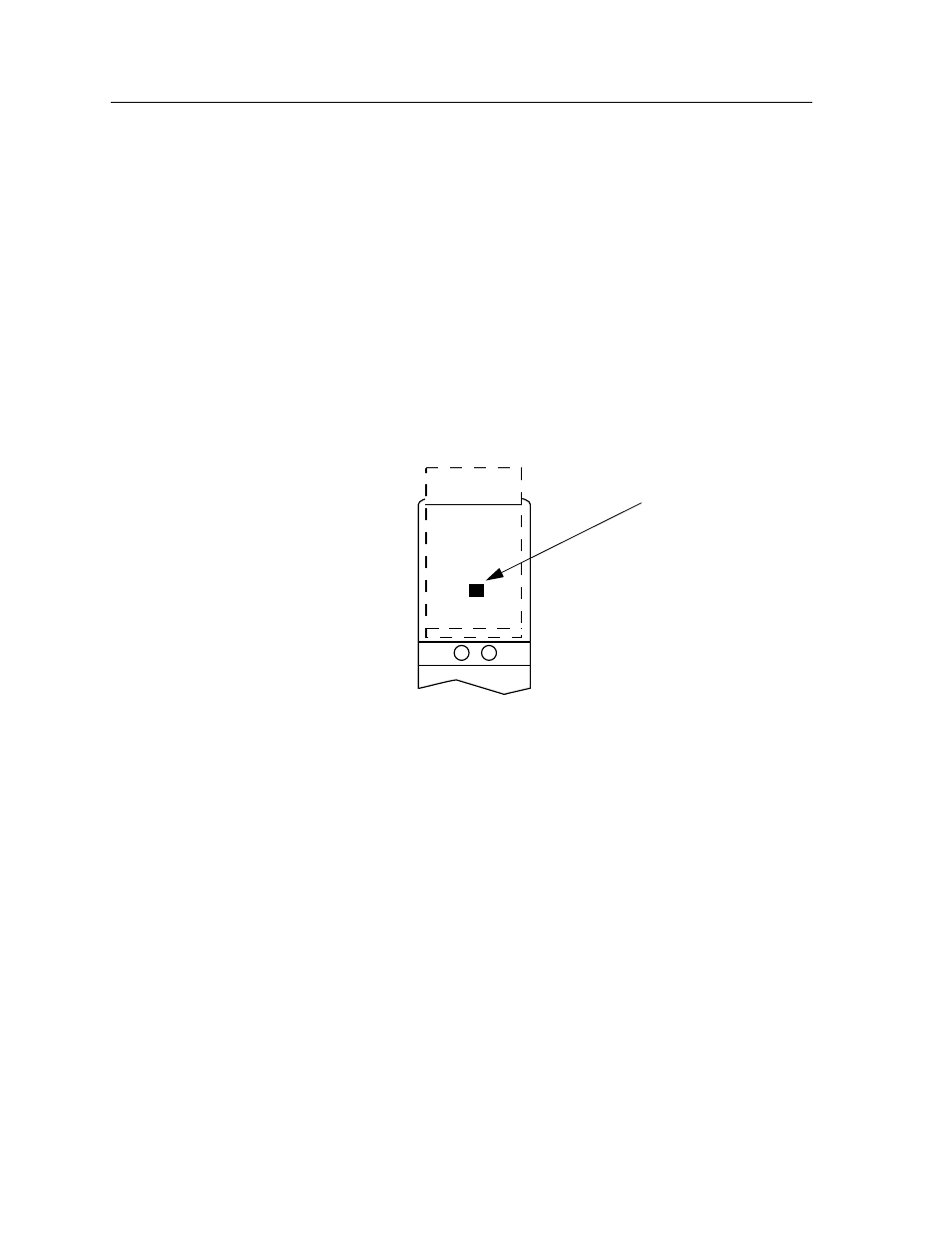

Figure 2-3. The Reset Switch
Cabling Requirements
10BASE-FL Network
The 9E531-24 supports 10BASE-FL Ethernet specifications. When connecting a
10BASE-FL segment to any of the front panel ports, ensure that the network meets
the optical performance requirements for the 10BASE-FL 802.3 standard.
The 9E531-24 supports multimode fiber cables at the 850nm wavelength, at
lengths up to 2 km.
SMB CPU
Reset Switch
