Installation Instructions Model: MWC Series
3
TOOLS REQUIRED FOR INSTALLATION
• Stud Sensor
• Drill
• 5/32" Drill Bit
• 1/2" Wrench
• 5/32" Security Hex Key (included)
NOTE: Other tools may be required depending on your
method of installation.
PARTS
After unpacking carton, inspect and verify contents
(See Figure 1). If any listed parts are missing or
damaged, contact Chief Customer Service at 1-800-582-
6480.
Table 1: Parts
Item Description Qty
10 MOUNT, MWC Series 1
20 STRAP, 1" x 6’ Polypropylene with Cam Buckle 1
30 SCREW, Button Head Security, 1/4"-20 x 1/2" 4
40 SCREW, Button Head Cap, 1/4"-20 x 1/2" 2
50 NUT, Hex, Standard, 1/4"-20 2
60 KEY, Security Hex, 5/32" 1
70 SCREW, Hex Head Lag, 5/16 x 2-1/2" 4
80 WASHER, Flat, 5/16" 4

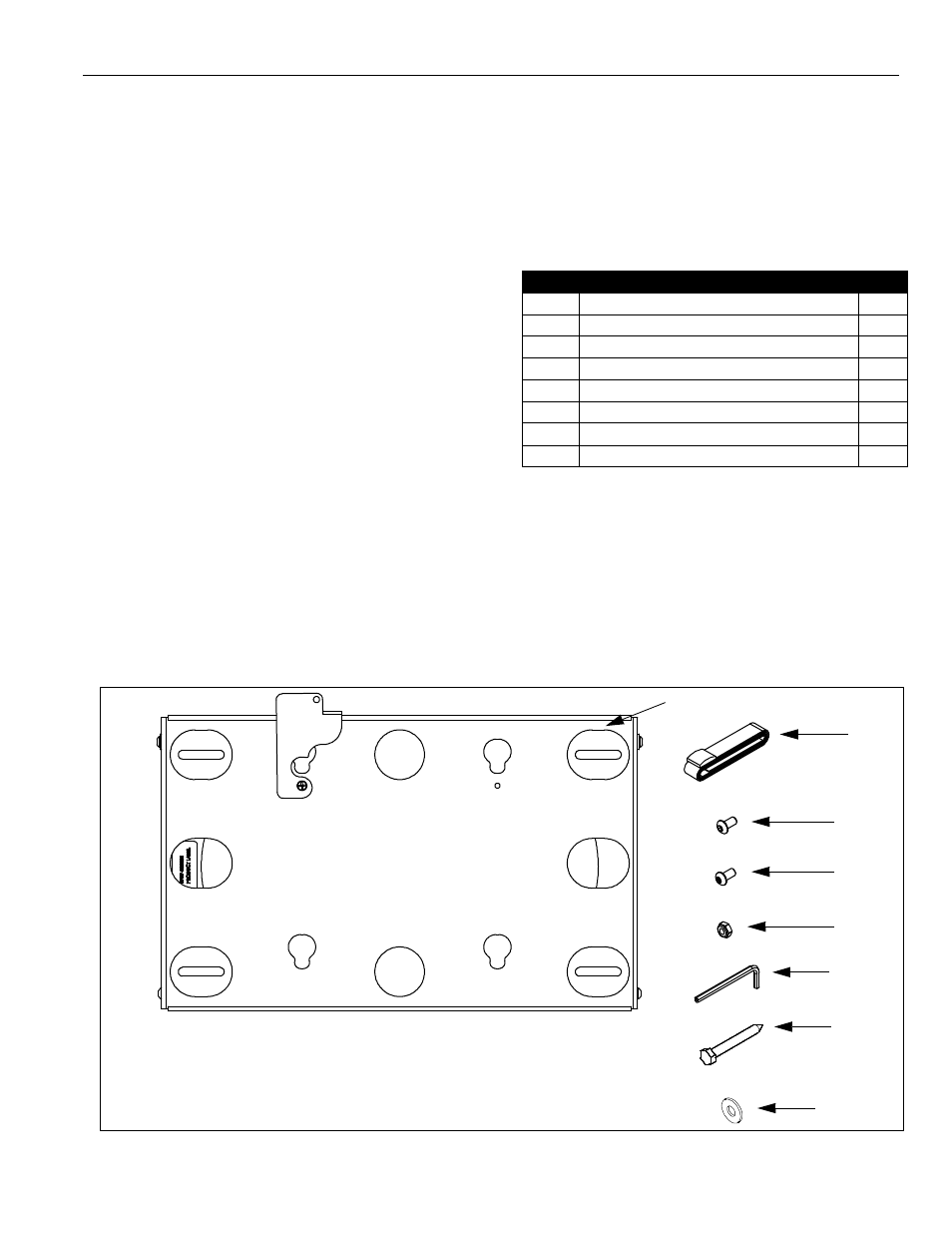

Figure 1: Parts
10
20
30
40
50
60
70
80
