The Infini™ brake system allows almost limitless adjustability to handle any fishing situation.
It combines a sealed centrifugal brake system with the MagTrax™ magnetic brake, giving
anglers superior casting control. This is sometimes referred to as a dual brake system.

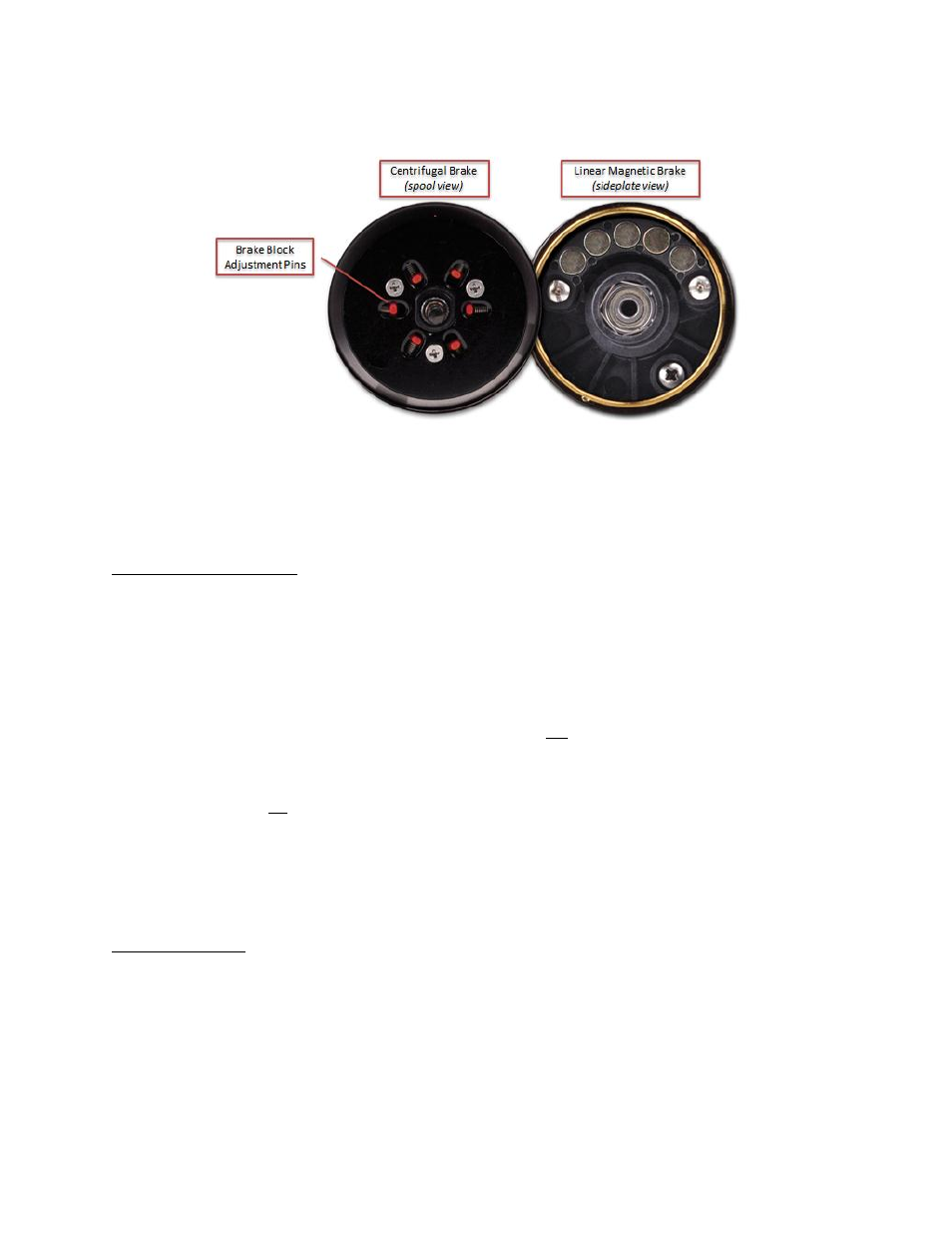

Sealed Centrifugal brake: As the spool spins, centrifugal force causes the “spring loaded” brake
blocks to engage by moving away from the center of the spool. This force prevents the spool
from over running at the start of the cast. The blocks retract during the second stage of the cast
as the spool slows down to allow for maximum distance. Additionally, the brake blocks are
sealed inside the plate which prevents them from popping off and getting lost.
Access the adjustment pins by removing the palm sideplate (see Removing the Sideplate
instructions in section G. for details) Disengage (i.e. turn off) the centrifugal brake by sliding all
pins towards the center of the spool until they click into position. The brake blocks are now
locked in the off position and will not move out away from the center of the spool. To engage
this feature (i.e. turn on the brake blocks) slide any combination of pins towards the outside of
the spool until they click into place. Any combination of brake blocks can be engaged or
disengaged to apply more or less brake pressure. For example, turn on all six blocks for the most
pressure or turn on just one or two for less pressure and more distance. When a brake block is
set in the “on” position, it will be able to move towards the outer edge of the spool.
MagTrax™ brake: The addition of the MagTrax™ magnetic brake adds consistent braking
pressure throughout the entire cast resulting in smooth, controlled casts. A turn of the dial
towards the “MAX” setting moves the magnetic braking system closer to the spool. As the
magnets get closer to the spool, they apply more braking force and slow the rotation of the spool.
Turn the exterior MagTrax™ brake dial to fine tune spool tension (see picture). Rotate the dial
towards the “MAX” label to increase braking force or in the opposite direction to reduce braking
force.
