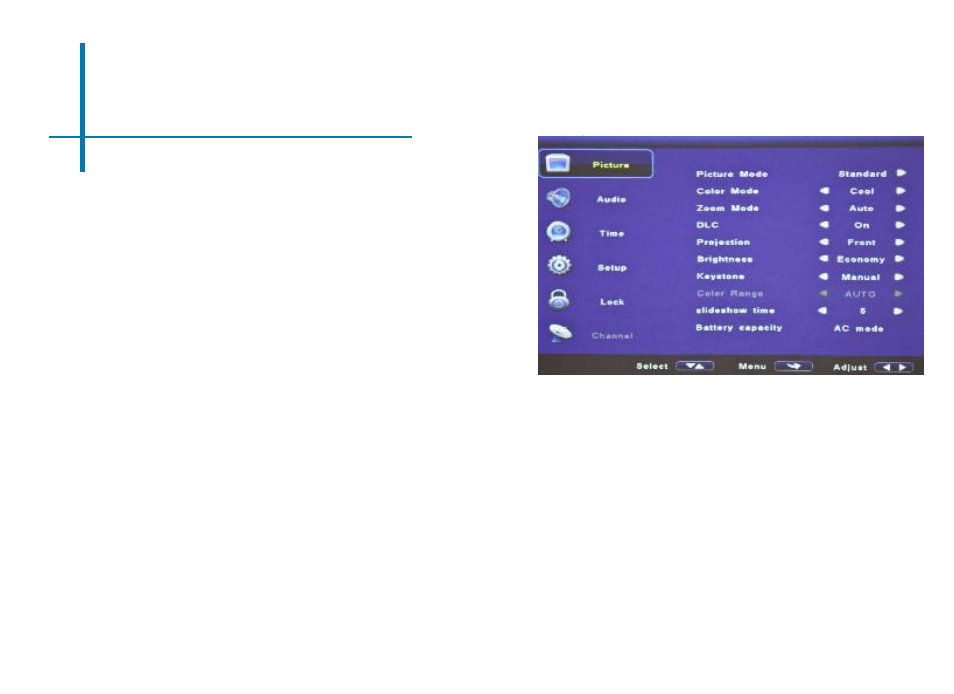

Picture Settings
Picture Mode
Color Mode
•
Adjusts the color temperature from hot
to cool (red to blue).
Zoom Mode
Projection
• Changes the picture mode to different
settings depending on your choosing
33
•
The “Zoom” mode allows users to select
the aspect ratio or “zoom” of videos or
pictures being displayed. For example if
a 4:3 aspect ratio is selected, movies
and pictures will be displayed in 4:3.
Available selections include Auto, 4:3,
16:9, 16:10, Zoom 1, Zoom 2
•
The Projection function allows the user to choose the
image orientation. The modes are Front, Rear,
Invert Front, Invert Rear. In other words it allows the
user to flip the image both vertically and horizontally
to accommodate for rear projection and ceiling
mounted projection. For example a ceiling mounted
projector will require a 180 degree image rotation
whereas a rear projection would require an image
rotation on the Y-Axis.
