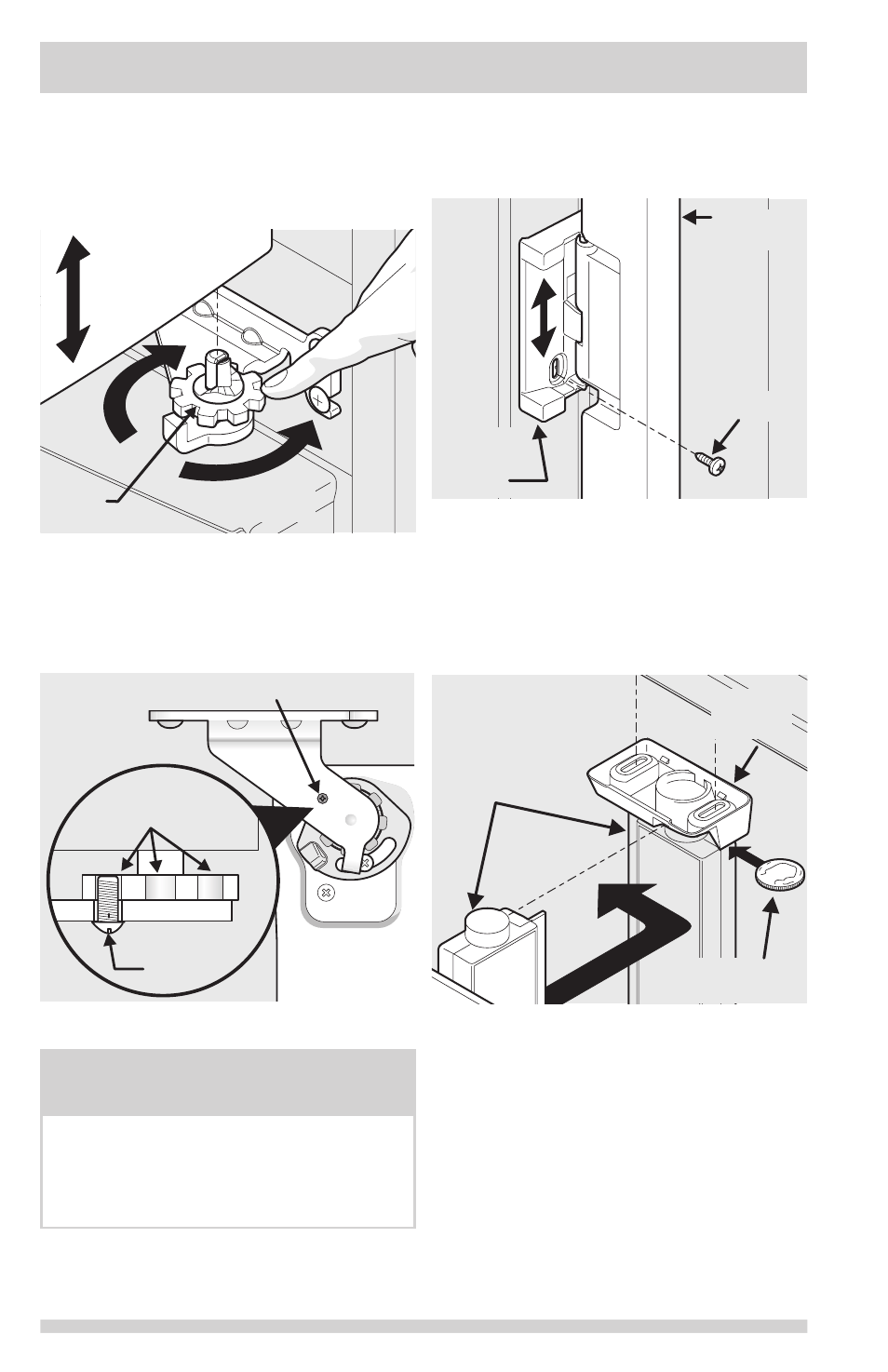

Adjusting Flipper Mullion Screw
To adjust the flipper mullion:
1 Loosen the screw located on the flipper
mullion hinge.
2 Adjust flipper mullion height. For proper
connection with the flipper mullion guide,
there should be a separation about the
thickness of a coin (0.060 inches, or
1.5 mm) between the guide and flipper
mullion.
3 Retighten screw.
4 Lift the door while adjusting the washer.
To raise the door, rotate washer clockwise
(when viewed from the bottom). To lower
door, rotate washer counterclockwise
(when viewed from the bottom).
5 Re-tighten the screw (where applicable),
ensuring it is between the spokes of the
washer. Screw will not be tight, just insert
until it is flush with the hinge.
Mullion
Guide
Flipper
Mullion
Thickness
of a Coin
Adjusting Flipper Mullion Height
Door
Lower
Door
Hinge
Washer
Raise
Door
Raising/Lowering Door
Screw (where applicable)
Hinge
Washer Spokes
Screw
Retighten Screw

NOTE
If after adjusting doors higher the door
makes a popping/clicking sound, remove
screw and replace with the longer one
supplied in the handle package (select
models).
