Specifications
subject to change.
Single Wall Ovens
FGB24T3E C / S / B 24" Gas
24" Single Gas Wall Ovens_2 Cell
Baseline

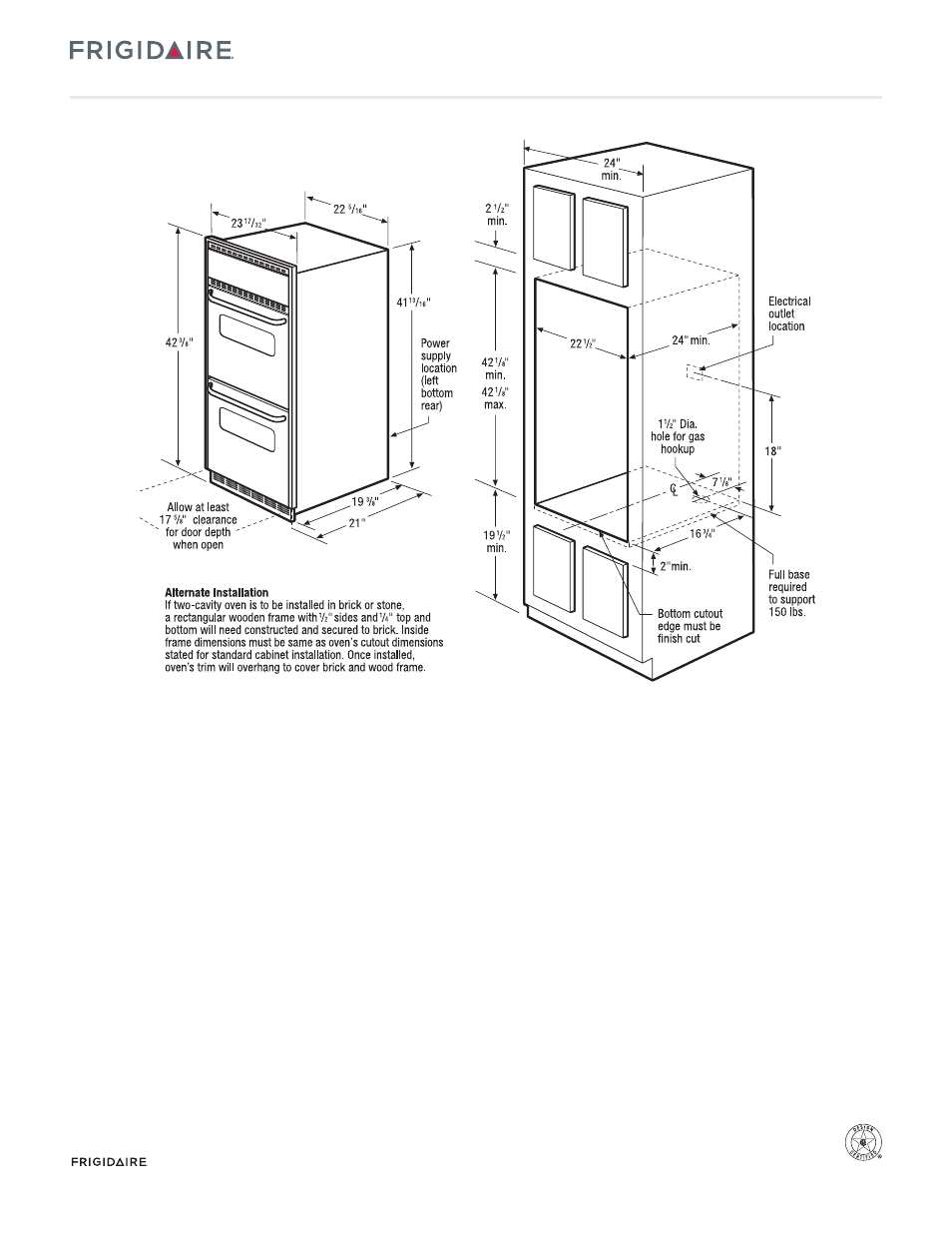

Alternate Installation
• If two-cavity oven is to be installed in brick or stone, a rectangular
wooden frame with 1/2" sides and 1/4" top and bottom will need
constructed and secured to brick. Inside frame dimensions must
be same as oven’s cutout dimensions stated for standard cabinet
installation. Once installed, oven’s trim will overhang to cover
brick and wood frame.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Single Wall Oven Specifications
• Product Shipping Weight (approx.) – 165 Lbs.
• Voltage Rating – 120V / 60 Hz / 15 Amps
• Connected Load (kW Rating) @ 120 Volts = .60 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
• Amps @ 120V = 5 Amps
• Always consult local and national electric and gas codes.
• Oven ships with 3/4" factory regulator.
• LP Gas convertible.
• Do not obstruct flow of combustion air at oven vent nor around base
or beneath lower front panel of appliance. Oven requires fresh air for
proper burner combustion.
• Minimum 17-5/8" clearance for oven door depth when open.
• Full oven base of solid plywood or similar material required, capable
of supporting 150 Lbs.
• Base must be level and cabinet front must be square.
• Single Wall Oven is NOT approved to be used in side-by-side
installation.
• Single Wall Oven is NOT approved to be used alone in under-counter
installation or in combination with any Frigidaire® Warmer Drawer or
Built-In Microwave Oven.
