Specifications
subject to change.
Specifications
subject to change.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
Front Load Laundry - Washers
Frigidaire Affinity (All N & P Models)
• Floor MUST be solid with 1" maximum slope. To minimize vibration or
movement, reinforcement of floor may be necessary. Do NOT install
on carpeted surface.
• Leveling legs supplied to level washer properly and reduce excessive
noise and vibration.
• H/C water faucets MUST be installed within 42" of washer’s water
inlet and MUST be 3/4" to connect to 43" inlet hoses.
• Water pressure MUST be between 30 and 120 psi with NOT more
than 10 psi pressure difference between hot and cold.
• Drain required with standpipe diameter of 1-1/4" min. and height of
24" min. / 96" max. above floor, capable of eliminating 17 gallons per
minute. Attached 52" drain hose can reach 74"-high standpipe. For
higher standpipe, optional Drain Hose Extension Kit available.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
• Dryer Stacking Kit – (PN # STACKIT4X).
• 15" Classic White Pedestal Drawer – (PN # CFPWD15W).
• Mobile Home Installation Kit – (PN # 137067200).
• Drain Hose Extension Kit – (PN # 137098000).
• 6' Stainless Steel Washer Fill Hose (2 pack) – (PN # 5305516562).
• 4' Rubber Washer Fill Hose (2 pack) – (PN # 5308815006).
Front Load Washer Specifications
• Product Shipping Weight (approx.) – 222 Lbs.
• An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (ANSI/NFPA 70) and
local codes & ordinances. (Do not use same circuit as dryer.)
• Voltage Rating – 120V / 60 Hz / 15 Amps
• Amps @ 120 Volts = 10 Amps
• Equipped with 120V 3-wire power supply cord, approx. 60" long.
• Always consult local and national electric & plumbing codes.
• To maximize detergent effectiveness, ambient temperature should
never be below 60° F.
• Can be installed alone, with or without optional 15" Pedestal Drawer, or
stacked below matching Frigidaire® Dryer, which requires installation of
optional Dryer Stacking Kit. (For installation details, refer to instructions
included with optional pedestal or stacking kit or on web.)
• Can be built in with matching Frigidaire® Dryer in under-counter,

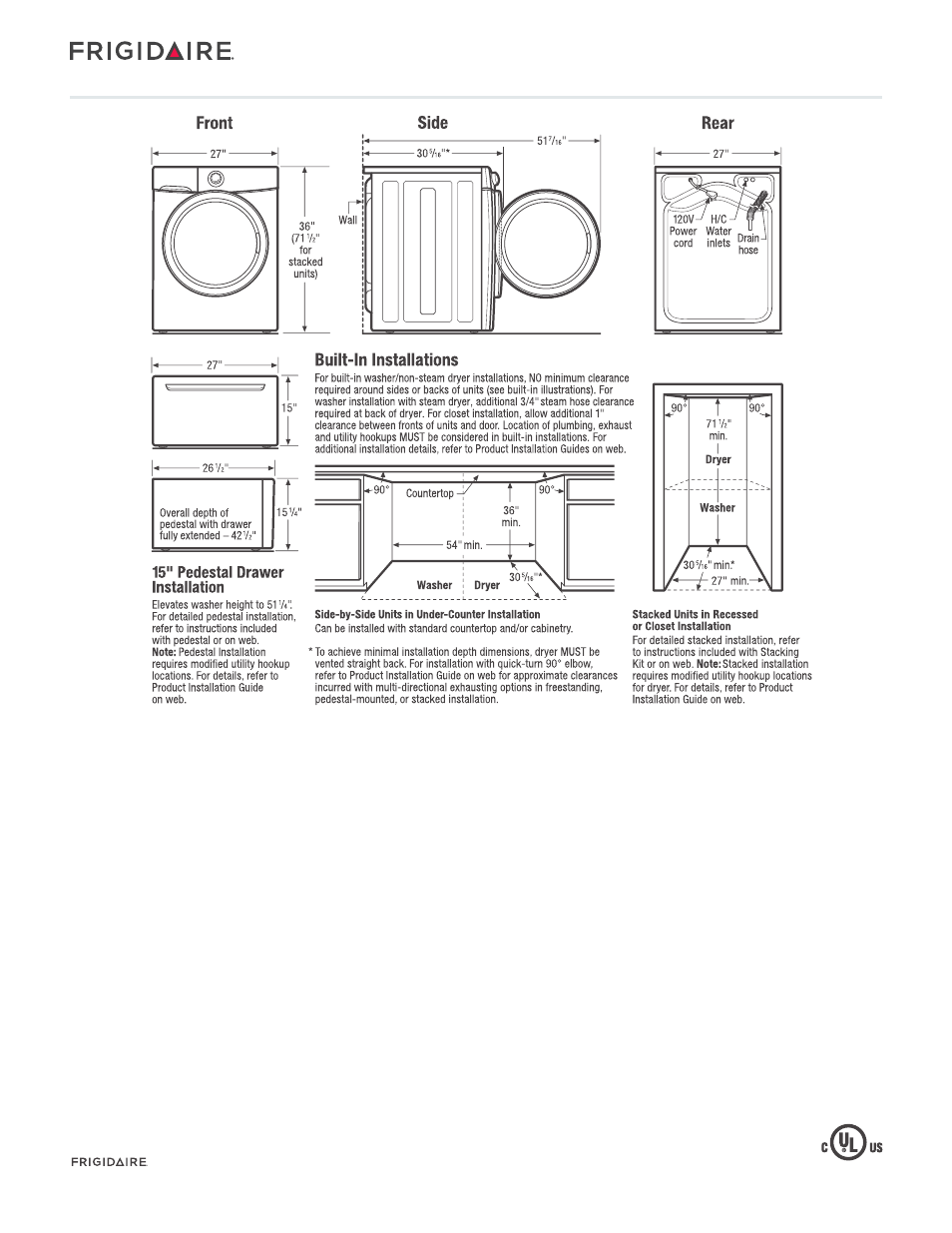

recessed or closet installation. (Refer to Built-In Installations on this
page for cutout dimensions. For additional installation details, refer to
Product Installation Guide on web.)
• Closet installation requires vented door with 2 unobstructed louvered
openings, minimum 60 sq. in. each, located 3" from top and bottom of
door. Full-length 120 sq. in. opening also acceptable. Allow additional
1" clearance between fronts of units and closed door.
• Do NOT install in area exposed to dripping water or outdoor
weather conditions, or where gasoline or other flammables, including
automobiles, are kept or stored.
Front Load Washer
FFFW5100PW 3.9 Cu. Ft. D.O.E.
FFFW5100P 03/14 © 2014 Electrolux Home Products, Inc.
