FRIGIDAIRE FFGC3005LW - Manual (Page 3)

Accessories information available
on the web at frigidaire.com
Drop-In Gas Cooktops (Version 1)
(Callouts MUST be charted per individual model).
Professional / Gallery / Baseline
BASED ON INSTALL GUIDE
VERBIAGE (VERSION 1)

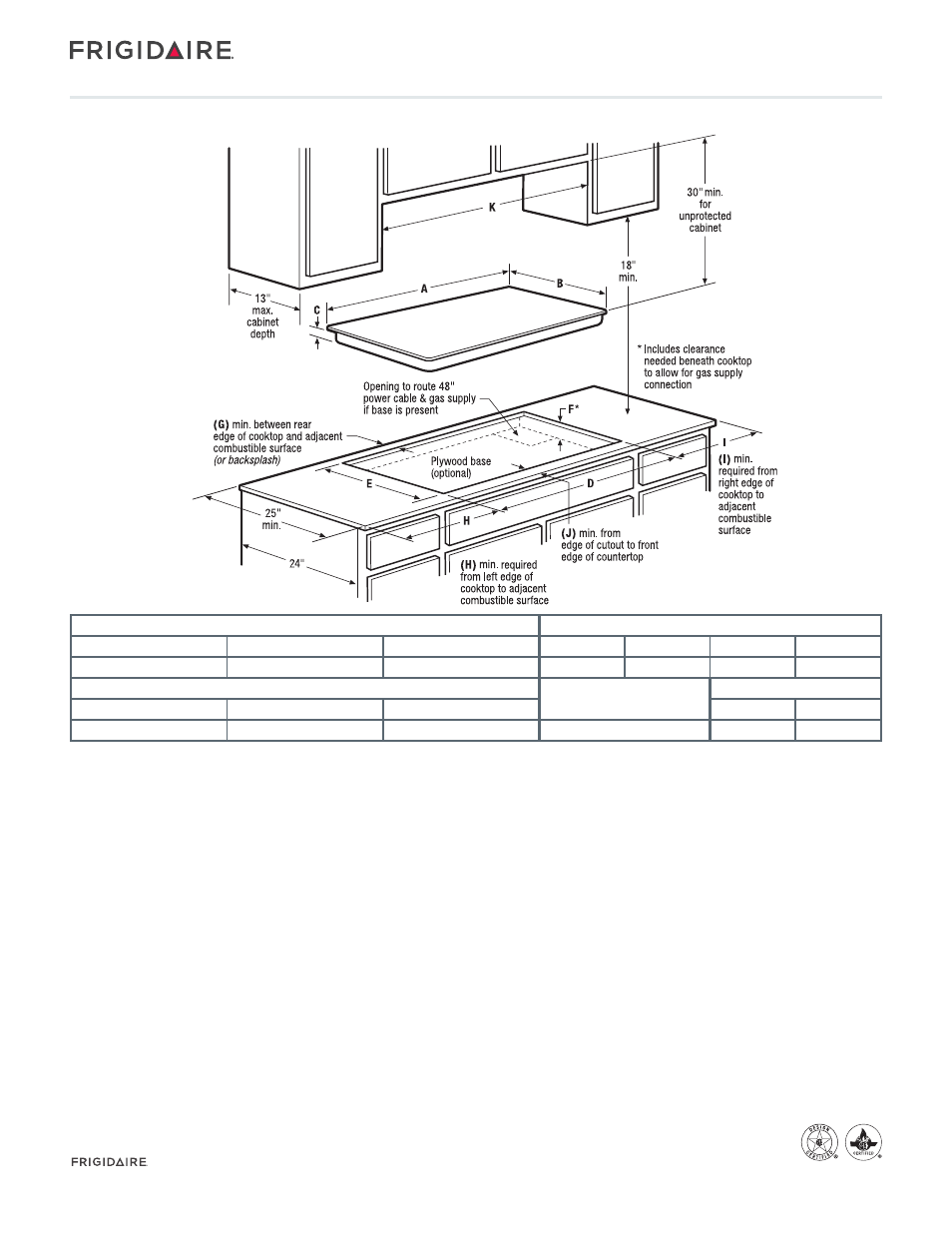

(G) min. between rear
edge of cooktop and adjacent
combustible surface
(or backsplash)
Drop-In Cooktop Specifications
• Product Shipping Weight (approx.) – 35 Lbs.
• Voltage Rating – 120V / 60 Hz / 15 Amps
• For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.
• Amps @ 120 Volts = 1.0 Amps
• Always consult local and national electric and gas codes.
• Cooktop cutout height includes clearance needed beneath cooktop
to allow for gas supply connection. Recommended location for
grounded 120V outlet is on rear wall in an 8"-wide by 10"-high area,
positioned 22" above floor surface and 4" from right side of cooktop
centerline. Access to underside of cooktop and junction box must
be provided for inspection and service.
• Cooktop ships with 3/4" factory regulator.
• Natural gas only.
• Overhead cabinetry should not exceed a 13" maximum depth.
• Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than 30".
• Allow 30" minimum clearance between top of cooktop platform and
bottom of unprotected wood or metal overhead cabinet.
• Allow 2" minimum distance between rear edge of cooktop and
adjacent combustible surface (or backsplash).
• Allow 2" minimum required clearance from left edge of cooktop to
adjacent combustible surface and 0" minimum from right edge of
cooktop to adjacent combustible surface.
• To reduce risk of fire when using overhead cabinetry, install range
hood that projects horizontally a recommended minimum of 5"
beyond bottom of cabinets.
• Gas Drop-In Cooktop model FFGC3005L is NOT approved to be used
over any Frigidaire® Single Wall Oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
• Granite Countertop Installation Kit – (PN # 903103-9010).
Product Dimensions Required Clearances
A - Width B - Depth C - Height G (min.) H (min.) I (min.) J (min.)
30" 21-1/2" 3-1/8" 2" 2" 0" –
Product Cutout Dimensions K - Cabinet Opening Width
(min.)
Utility Connection Locations
D - Width (min. - max.) E - Depth (min. - max.) F - Height (min.)* Power Supply Gas Supply
26-5/8" - 26-7/8" 19" - 19-3/8" 8-1/8" 30" Right Rear Right Rear
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
FFGC3005L 10/12 © 2012 Electrolux Home Products, Inc.
Specifications
subject to change.
Drop-In Cooktop
FFGC3005L W 30" Gas
