WARNING
When reversing the door swing:
You MUST move the anti-tip bracket to align with the
hinges of the door and install the toe grille support for
proper balance. Failure to do so will result in injury.
Washer
Hinge
Pin
Bottom
Hinge
Screws
Toe
Grille
Door Stop
Screw
Door
Stop

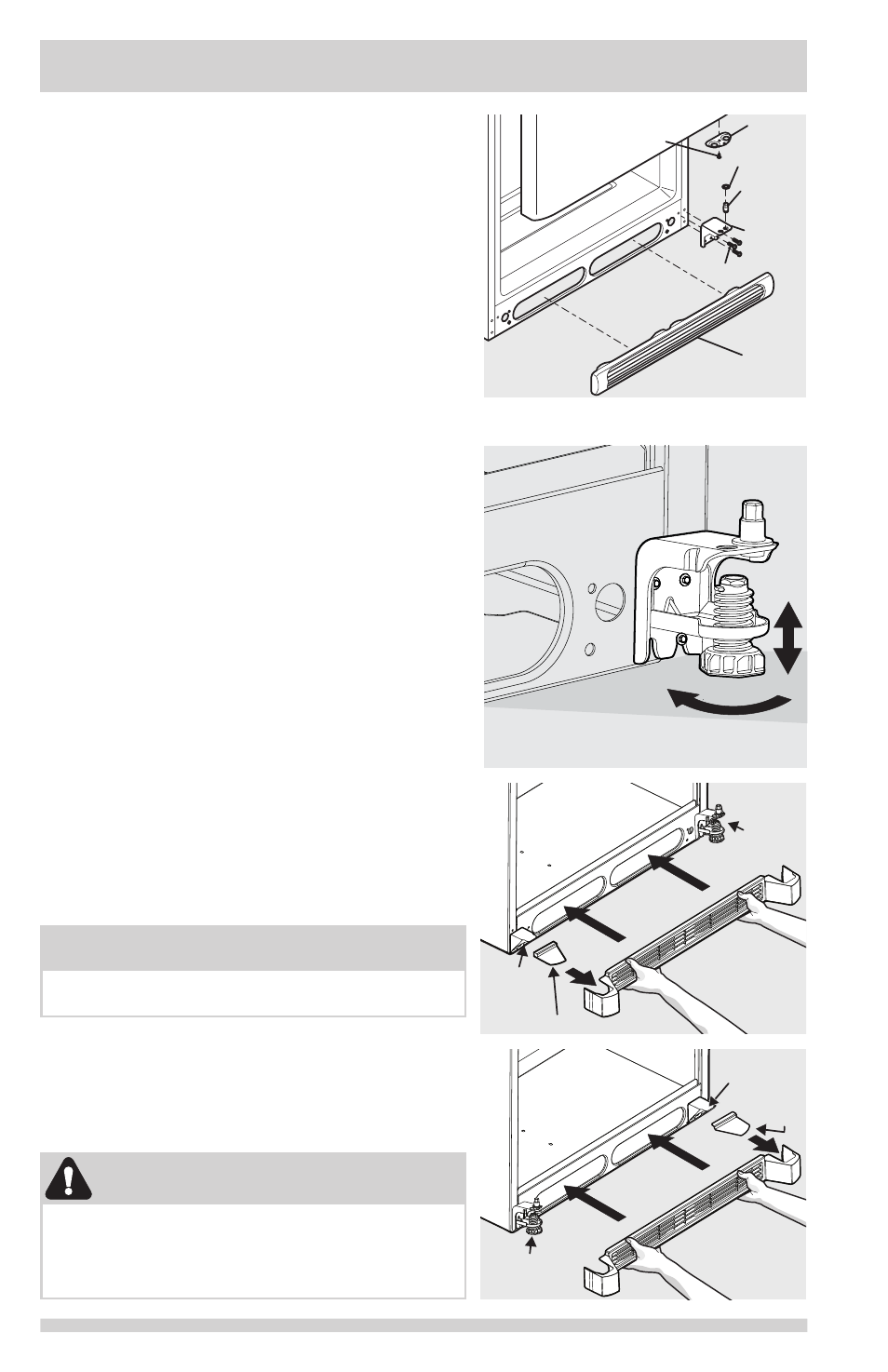

A
Toe Grille Cover
Toe
Grille
Support
Anti-tip
Bracket
B
Toe Grille
Cover
Toe Grille
Support
Anti-tip
Bracket
7. Remove three screws on bottom hinge and anti-
tip bracket (if equipped) with ⅜” socket wrench.
8. Remove toe grille support and screws (if
equipped).
9. Install bottom hinge and anti-tip bracket (if
equipped) on opposite side with the three screws
removed from step 7.
10. Unscrew bottom hinge pin using adjustable
wrench. Move hinge pin to other hole in hinge
and tighten with adjustable wrench.
11. Install toe grille support and screws on opposite
side (if equipped).
12. Reverse door handles (see Handle Installation
section).
13. Move freezer and refrigerator door stops to
opposite side. Before starting screws, use an awl
to puncture the foam.
14. Position refrigerator door onto bottom hinge pin
and screw center hinge pin through center hinge
into top of door. Close refrigerator door to help
align hinge hole.
15. Tighten center hinge pin with adjustable wrench.
16. Remove cabinet and hinge hole plugs and move
to opposite side.
17. Lower freezer door onto center hinge pin.
18. Close freezer door. Have an assistant lift up on
opposite side of door while tightening screws to
install top hinge.
19. There are two toe grille covers provided in your
literature packet or already installed on toe grille;
one for the right side and one for the left side.
Install the appropriate cover over the opening
on the side opposite the anti-tip bracket, (see
Figures A & B).
DOOR REMOVAL/REVERSAL INSTRUCTIONS
OR
Lower
Anti-tip
Bracket

NOTE
In case of future door reversals, save the toe grille
cover not being used.
20. Reinstall toe grille with appropriate cover (some
models).
21. Plug in electrical power cord and turn refrigerator
temperature control to center position. Adjust
setting as necessary.
