CLARKE TECHNOLOGY
Encore S2426/L2426

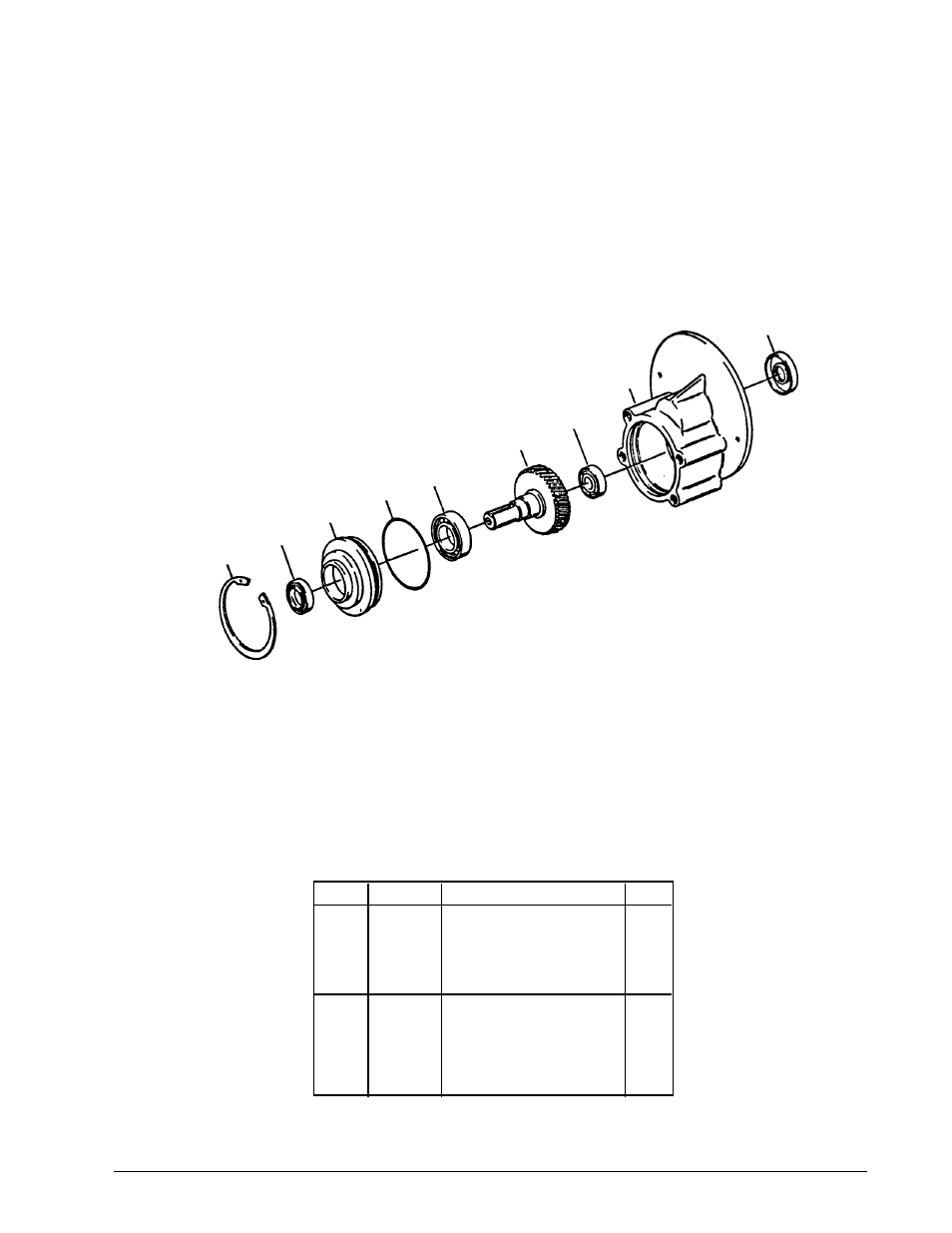

Gearbox Assembly Drawing and Parts List 5/00
Form #54238A
Ref # Part No. Description Qty
1 57846A Ring, Snap 1
2 507641 Seal, Oil, Small 1
3 52050A Cap End 1
4 56668A O-Ring 1
5 51176a Bearing, Large 1
6 58316A Shaft & Gear 1
7 902605 Bearing, Small 1
8 54883A Housing 1
9 58144A Seal, Oil Large 1
10 NI Darina EP2 Grease 4 oz.
1
2
3
4
5
6
7
8
9
