Cissell HF 234 - Manual (Page 7)

7
3
machine with steam heating or boiler fed machines without additional
electrical heating Power of the breaker plugs:
220V 3AC 380V 3AC + N
12 kW 40 A 20 A
15 kW 50 A 25 A
18 kW 50 A 32 A
21 kW ---- 40 A
24 kW ---- 40 A
machine with electrical heating
220V 3AC 380V 3AC + N
16 A 16 A
The machine is equipped with a drain valve with 3" outer diameter (80 mm).
This drain valve should be connected to the drain by means of the drain
elbow which is delivered with the machine.
The diameter of the main drain should be adapted to the water flow and
the number of machines. It should be sufficient to handle at least 160L/
min. per machine.
It is necessary to connect the main drain at least on one side to an open
air-brake to allow ventilation.
When the main drain has not been sufficiently deodorized, every
machine should be installed seperately with a deodorizer. S
S
S
Water drain
Remove the cover plate at the back of the machine. (See dimensions (E)).

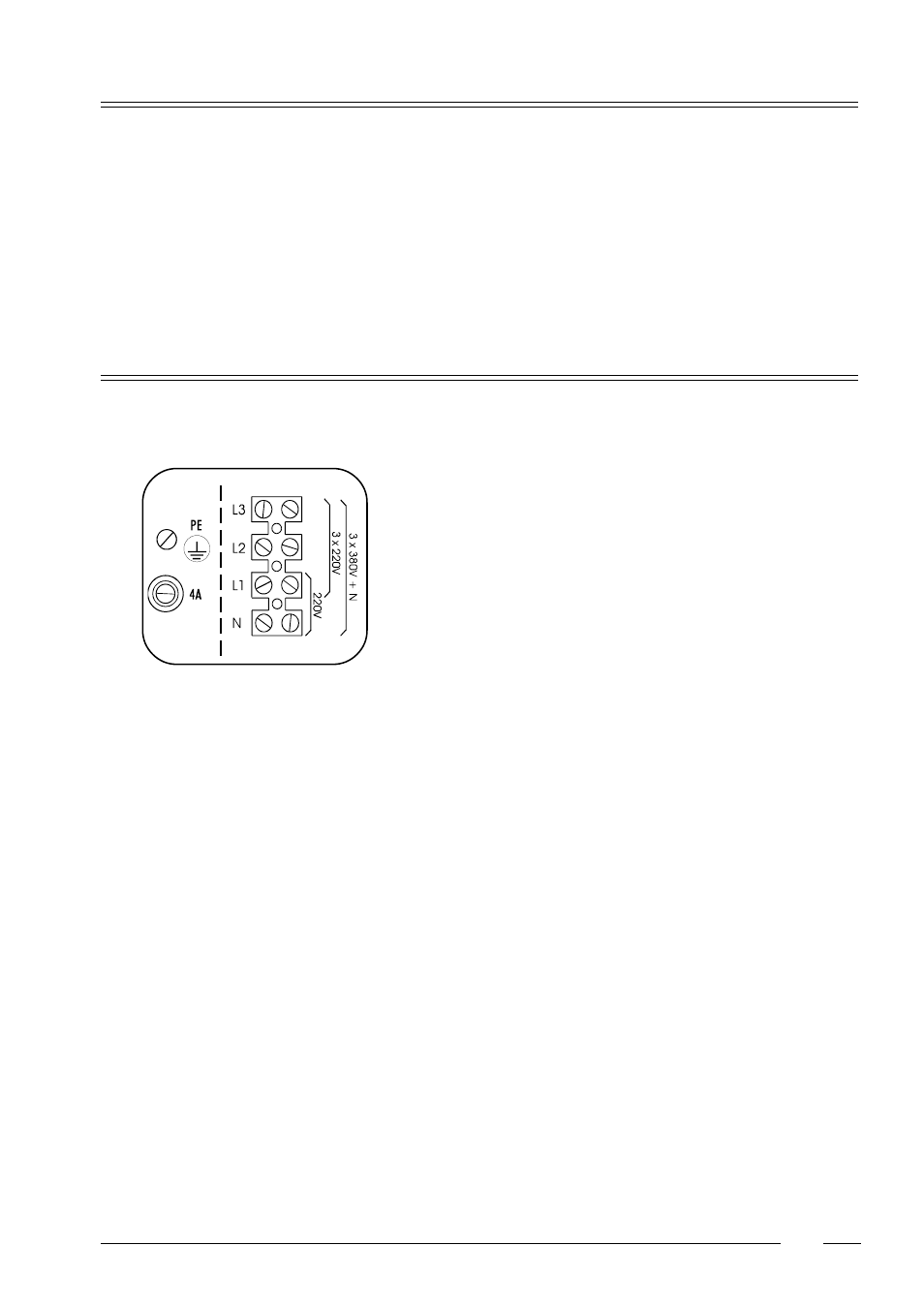

Connect the power cable to the connectors.
220V 3AC
220V 3 phase (3AC) should be connected to the connectors “L1,L2,L3”.
The green/yellow grounding clamp has to be connected to the grounding
wire “PE”.
380 V 3AC + N
380 V 3 phase (3AC + N) has to be connected to the connectors
“L1,L2,L3”, the blue neutral to the “N” connector.
The green/yellow grounding clamp has to be connected to the groun-
ding wire “PE”.
After connection, check the spin direction. The cylinder must spin in the
direction of the arrow, showed on the sticker on the door window
(clockwise).
A wrong spin direction can damage the motor, and can also cause water
to spurt from the soap dispenser.
In case of wrong spin direction: switch the terminal clamps of the motor
Main power connection
