19
V
+
Technical remarks

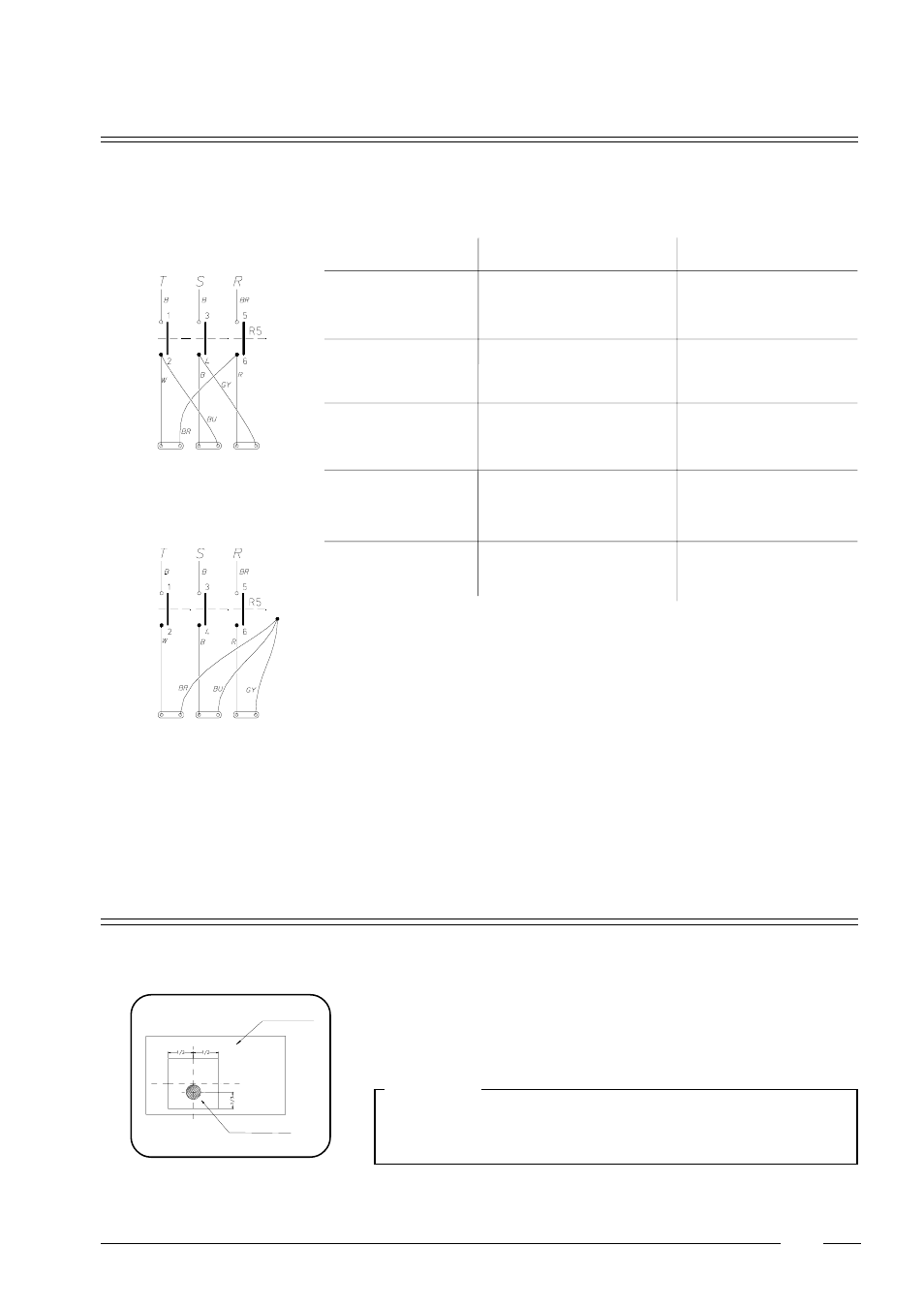

Internal connections of the electrical heating
B = Black Br = Brown
Gy = Grey Bu = Blue
R = Red W = White
PU = Purple W/B = White/black
Y/Gr = Yellow/green W/R = White/red
Remark:
Other executions are available as options.
The tilt switch is mounted on the solid part of the machine. There is a window
around the probe of the tilt switch that is mounted on the movable part of the
machine.
When the machine goes out of balance by overloading or uneven distribution of
the linen, the tilt switch will interrupt this action to prevent damage to the machine.
Important
To guarantee good functioning, the probe should be centered horizontally
and vertically at 1/3 from the bottom of the tilt window (when machine drum
is empty).
Probe
Window
Tilt switch
Heating 3x220V R5 3x380V R5
12kw 3x2kw V LC1D253 + LC1D0901
3x2kw
15kw 3x2kw V LC1D253 + LC1D1810
3x3kw
18kw 3x3kw V LC1D323 + LC1D1810
3x3kw
21kw 3x3kw ------ ------ + LC1D1810
3x4kw ------ ------ V LC1D1810
24kw 3x4kw ------ ------ V LC1D1810
3x4kw ------ ------ V LC1D1810
