Item # ASG-SD2500-20RQ-SY, X-PAQ™ Precision Fastening System with SD2500-20RQ Tool
QUOTE

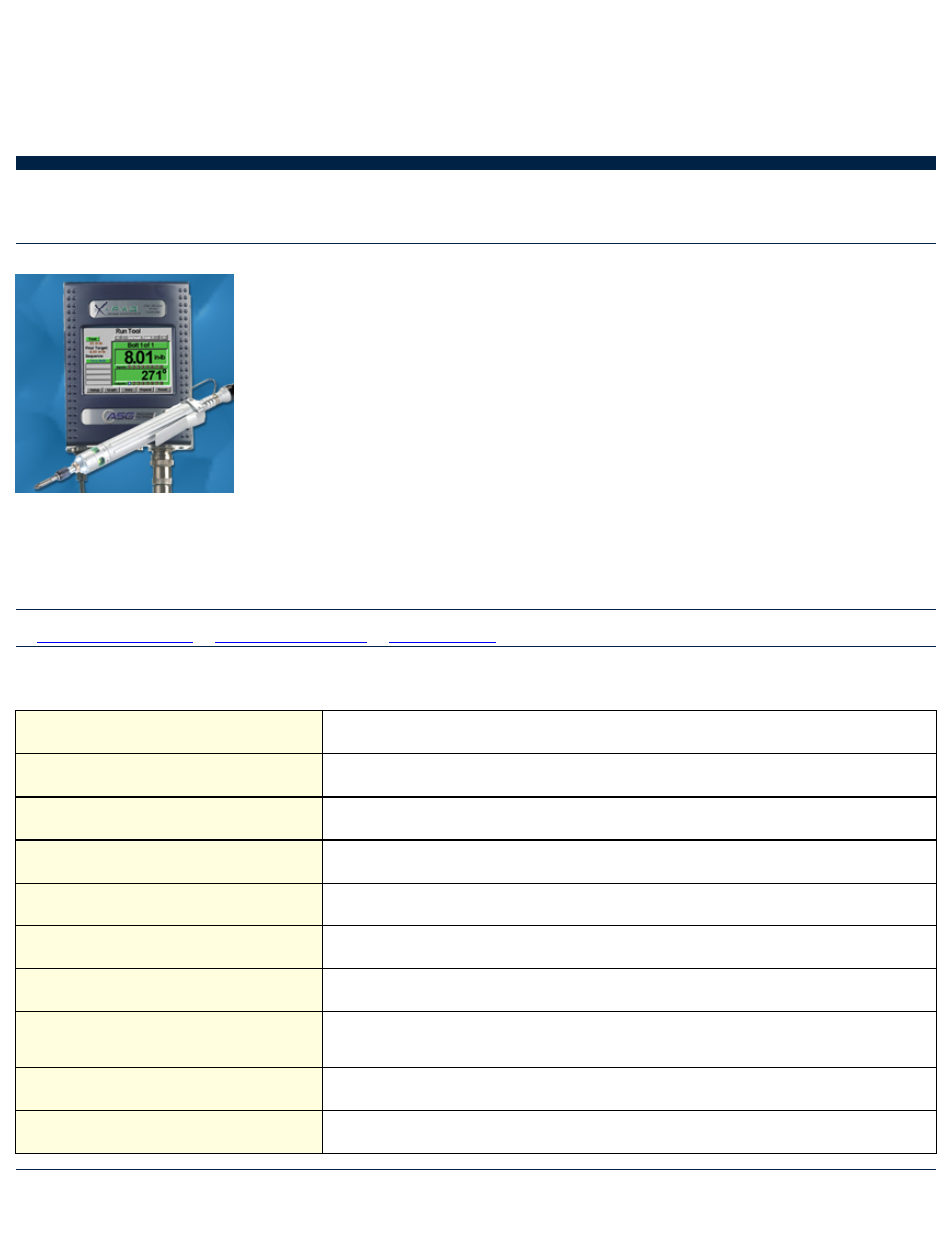

X-PAQ™ Precision Fastening System with SD2500-20RQ Tool
ASG offers X-PAQ™ Precision Fastening Systems for SD2500 Series tools. The ASG-SD2500-20RQ-SY system
includes the CT2500 X-PAQ™ Controller, 10 ft. heavy weight tool cable, and SD2500-20RQ right angle nutrunner
equipped with 1/4 in. hex drive and lever start operation.
• Precise, accurate transducerized DC electric torque and angle controlled fastening
• 32 tasks for multiple assembly set-ups
• 8 available torque or angle control parameters within each task
• Data collection, and run down graphing/export
• Programmable I/O for process control
• Available network interface for advanced data export and interfacing with plant controls
· SPECIFICATIONS · CLASSIFICATION · WARRANTY
SPECIFICATIONS
Model No.
ASG-SD2500-20RQ-SY
Series
SD2500
Controller
ASG-CT2500, X-PAQ™ Controller for SD2500 Series Tools
Data Recording?
Yes
Included SD2500 Series Tool
ASG-SD2500-20RQ, ASG-SD2500-20RQ Transducerized Right Angle Nutrunner
Driver Type
90 deg. Angle
Operation
Lever Start
Max. Torque
20 lbf·in
2.3 N·m
Max. RPM
1100 rpm
Cable
ASG-CB2500-10HW, 10 ft. Heavy Weight Strain Relief Tool Cable
