About Your Xdock 2
About Your Xdock
8
9
1
2
3
7
6
5
( )
4
10
11
12
14
15
13
16

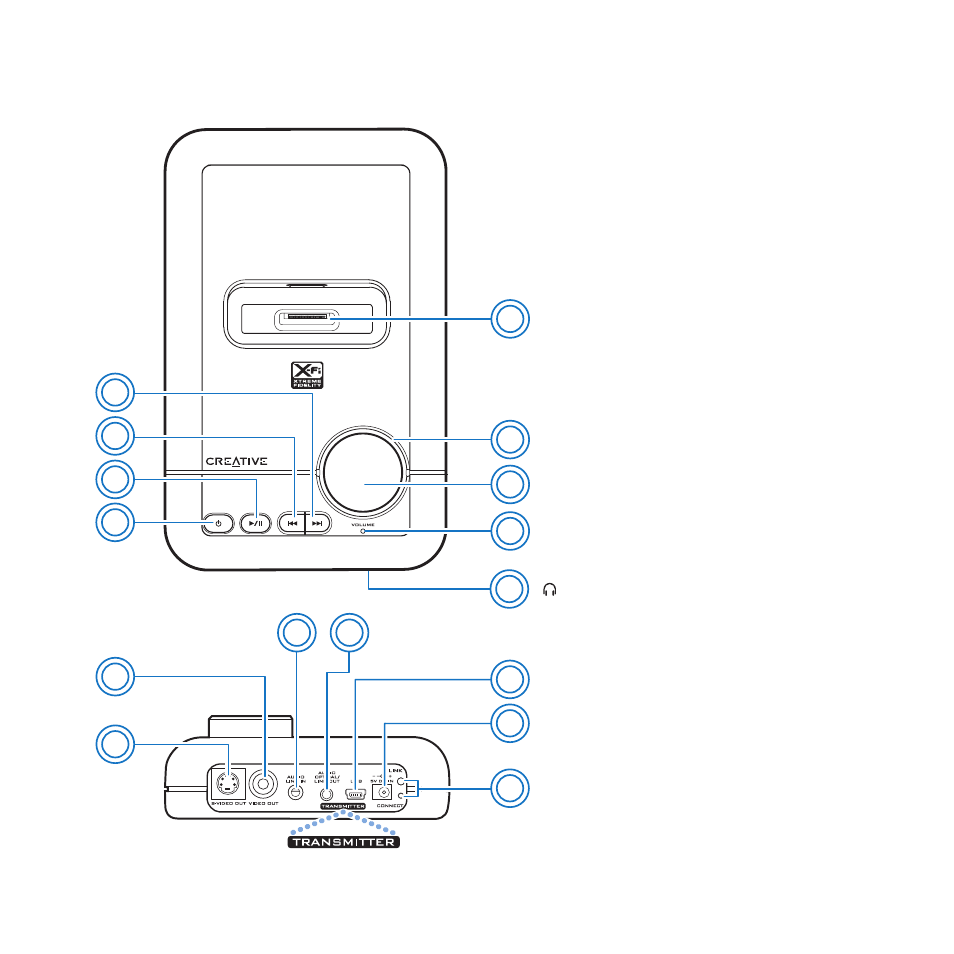

1 Power/Standby button
2 Play/Pause button
3 Previous/Rewind button
4 Next/Fast-forward button
5 iPod connector
6 Volume LED ring
7 Volume control
See “Using Your Xdock” on page 9.
8 Power/Standby LED
See “Understanding the Power/
Standby LED” on page 10.
9 Headphone jack
10 S-Video Out jack
11 Video Out jack
12 Audio Line In jack
13 Audio Optical/ Line Out
jack
14 USB port
15 5V DC In jack
16 Link LED and Connect
button
For use with X-Fi Wireless
Receivers.
