Item # ASG-EH2-HT40-000NDN, X-PAQ™ Controller for EH2 Series Tools
QUOTE

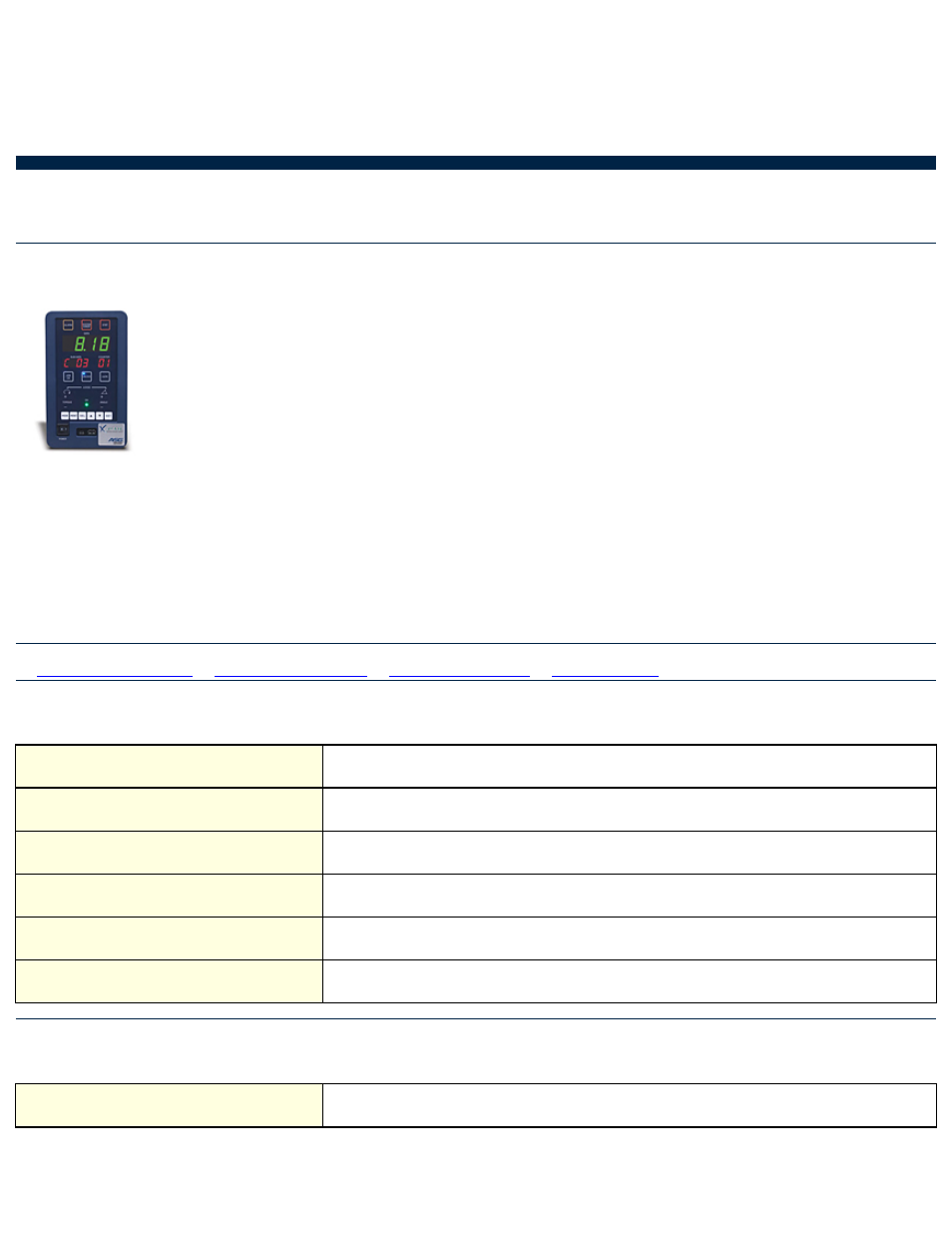

X-PAQ™ Controller for EH2 Series Tools
The ASG-EH2-HT40-0000NNN X-PAQ™ Controller is compatible with EH2 Series transducerized DC electric screwdrivers and
nutrunners. For applications requiring a torque range of 1 to 35 N.m.
• EH2 Series Controller equipped with DeviceNet
• Torque and angle monitoring and I/O monitoring
• Built-in simplified PLC functionality allows ladder logic creation, monitoring and storage
• History and monitoring functions record fastening results, torque curves and system error data as .CSV files which are easily
imported into spreadsheets for report creation
• USB Port for connection to PC and LAN for offsite programming, O/S compatible
• Fully integrated bar code reader functionality
• Multi-Spindle Synchronization available to control up to 10 tools
·
SPECIFICATIONS
·
CLASSIFICATION
·
FOR USE WITH:
·
WARRANTY
SPECIFICATIONS
Model No.
ASG-EH2-HT40-000NDN
DeviceNet
YES
Profibus
N/A
CC-Link
N/A
Ethernet IP
N/A
Optional I/O
N/A
CLASSIFICATION
Product Group
Precision Fastening
