Vermont Casting DV580 - Manual (Page 5)

5
DV360/580 Series Direct Vent Gas Fireplace
20010667
Fireplace Dimensions (Installed as Rear Vent)
2261a
DV360
Specs rear vent
1/25/00 djt
H
R - Rough Opening Width
Gas Line
Access
Rough
Opening
Height
Electrical
Access
Rough
Opening
Depth
U
U
V
T
J
S
I
J
P
O
N M
G
F
D
E
G
A
C
Q
L
K
B
Recessed
Nailing Flange

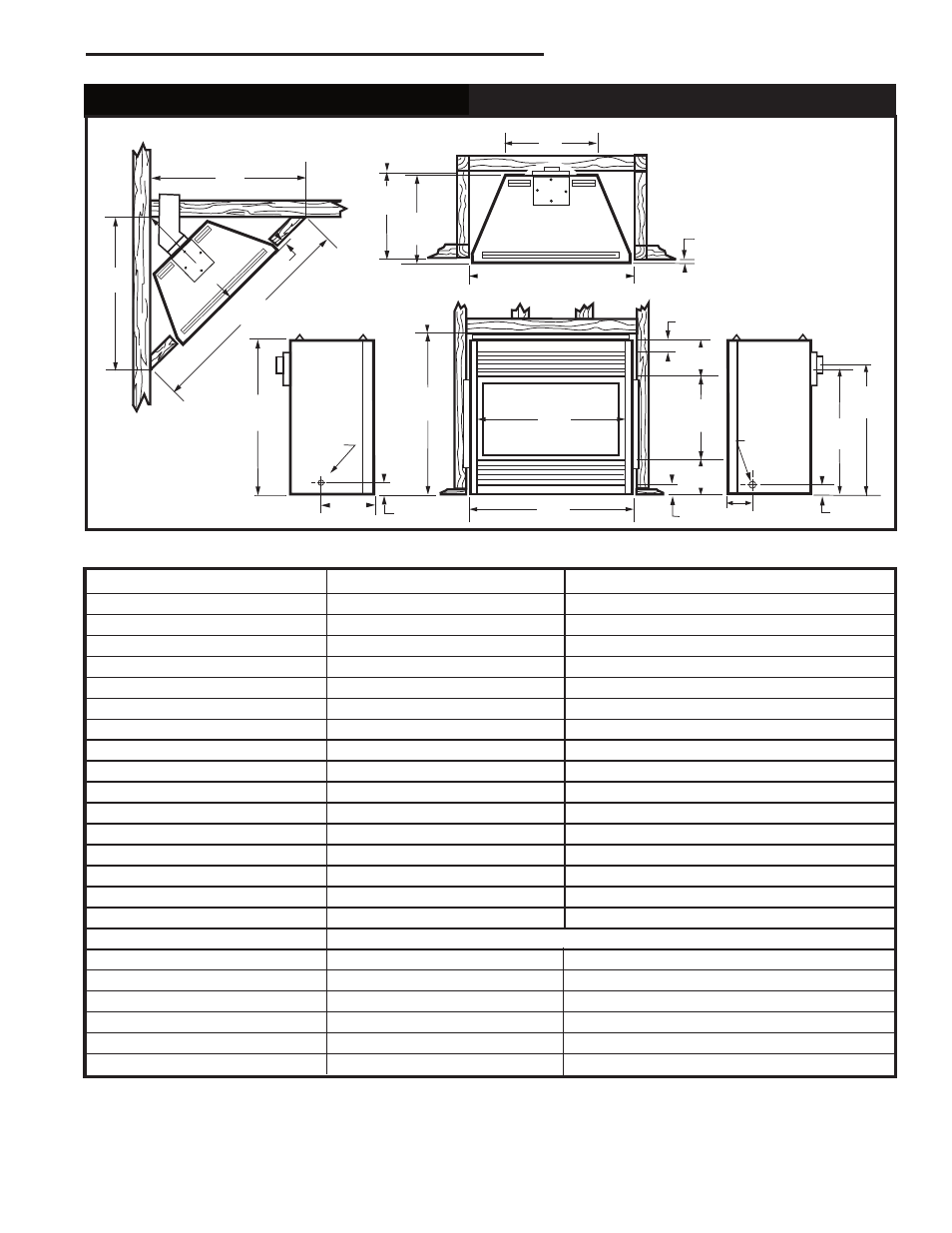

Fig. 3 Fireplace specifications and framing dimensions.
Ref. DV360 DV580
A 41” (1041 mm) 47” (1194 mm)
B 37” (940 mm) 41¹⁄₄” (1048 mm)
C 36” (914 mm) 42” (1067 mm)
D 24¹⁄₂” (622 mm) 28¹⁄₂” (724 mm)
E 7” (178 mm) 7” (178 mm)
F 6” (152 mm) 6” (152 mm)
G 1¹⁄₄” (32 mm) 1¹⁄₄” (32 mm)
H 19¹⁄₄” (489 mm) 23¹⁄₂” (591 mm)
I 25” (635 mm) 31” (787 mm)
J 5/8” (16 mm) 5/8” (16 mm)
K 10³⁄₄” (273 mm) 10³⁄₄” (273 mm)
L 2” (51 mm) 2” (51 mm)
M 7⁵⁄₈” (194 mm) 11¹⁄₄” (286 mm)
N 1⁷⁄₈” (48 mm) 1⁷⁄₈” (48 mm)
O 31¹³⁄₁₆” (808 mm) 35³⁄₄” (908 mm)
P 32⁹⁄₁₆” (827 mm) 36⁹⁄₁₆” (928 mm)
Framing Dimensions
Q 38¹⁄₂” (978 mm) 42¹⁄₂” (1080 mm)
R 41¹⁄₄” (1048 mm) 47¹⁄₄” (1200 mm)
S 19¹⁄₄” (489 mm) 23¹⁄₂” (597 mm)
T 62¹⁄₄” (1581 mm) 75” (1905 mm)
U 44” (1118 mm) 53” (1346 mm)
V 31³⁄₄” (807 mm) 38” (965 mm)
