Kraus C-GV-710-12mm-15000ORB - Manual (Page 7)

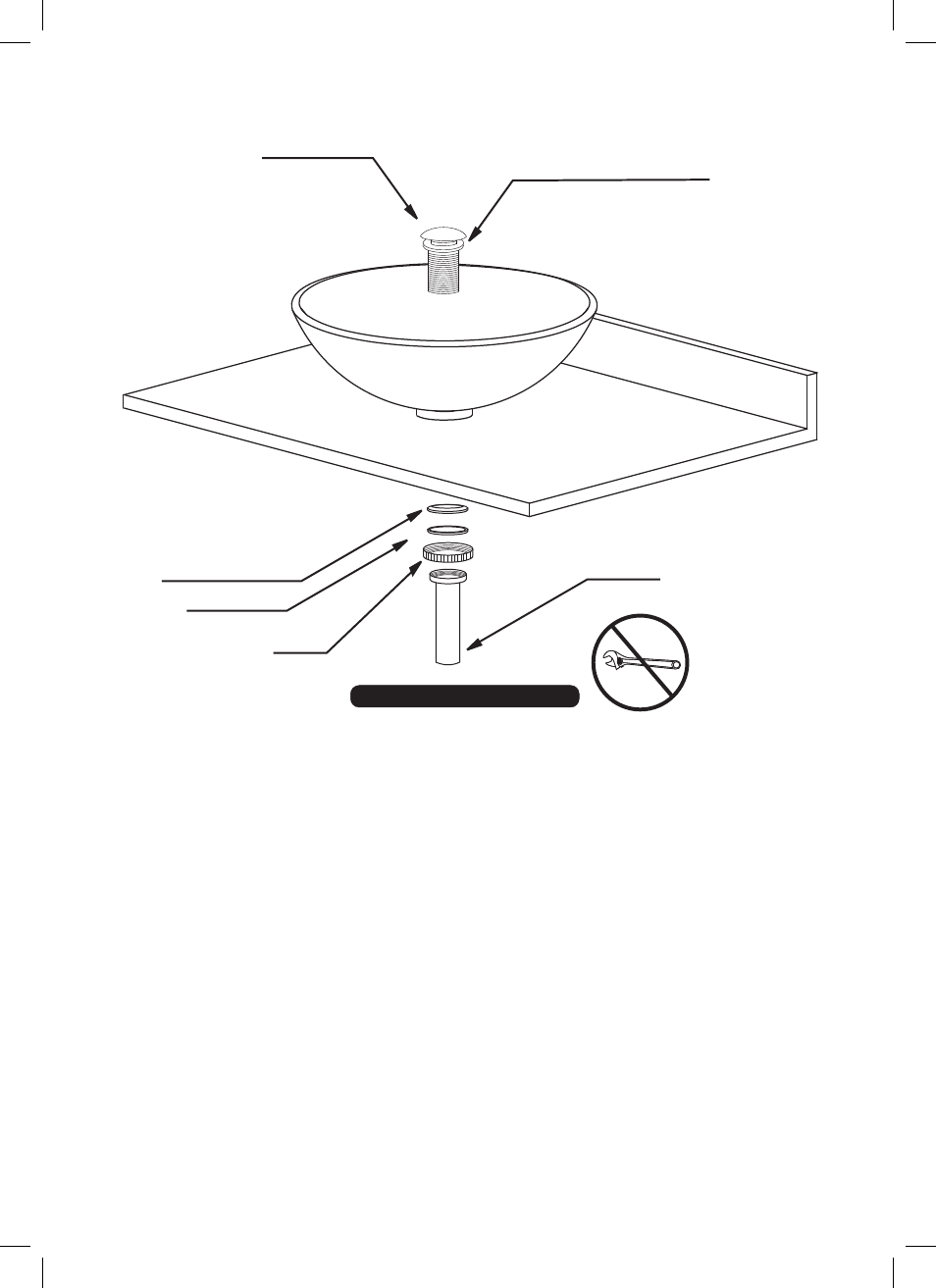

1. From above the countertop, insert the drain body into the 1 3/4” drain
opening of your sink.
2. From underneath the countertop, insert the concave white rubber
washer onto the drain.
3. Pushing the washer all the way up until it is in contact with the
countertop.
4. Insert the firm washer onto the drain body until it comes into contact
with the concave white rubber washer.
5. Screw the brass nut onto the drain body until it touches the firm
washer.
Finished Wall
1 3/4” Drain Hole
Vessel Sink
Mounting Ring
Thin Soft Rubber Washer
Pop Up Drain
Concave Washer
Nut
DO NOT OVER TIGHTEN THE DRAIN!!!
Tail Pipe
Firm Washer
Pop Up Drain Top
1 3/4”
Counter Top
(Suggested)
14” - 17”
Countertop
5 1/2” 6”
34”
Suggest
ed
28”
Suggest
ed
Floor
Mounting Ring 1/2”
Top View
Mounting Ring
White Rubber Washer
Top View
Inner Black Rubber Washer
Bottom View
