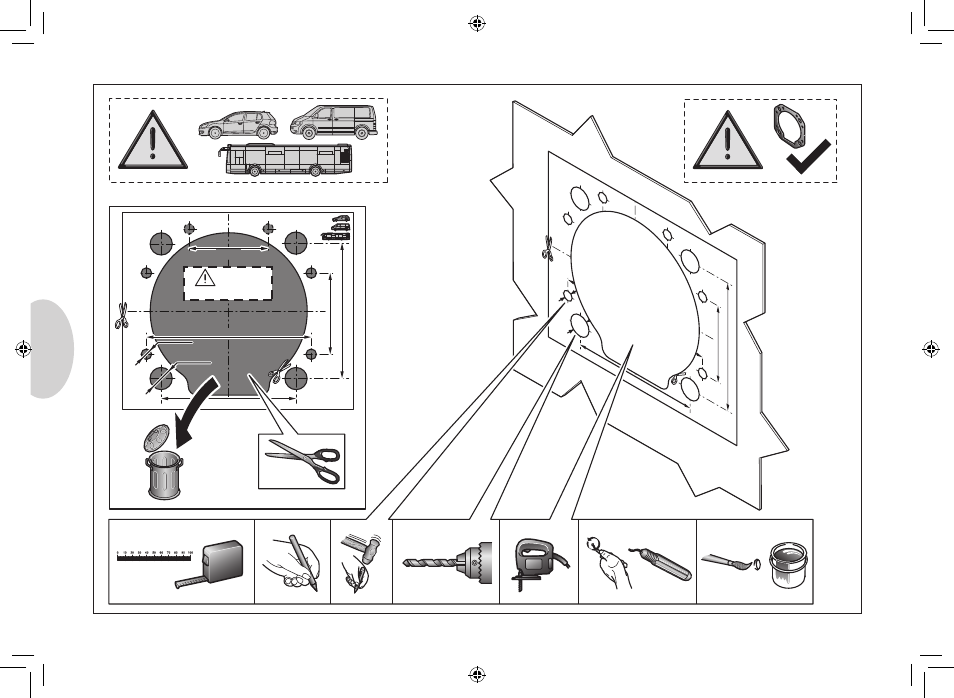

Hella 90mm Bi-LED High/Low Beam Module - Manual (Page 14)

14
CHECK SIZE
Print 100%
Check with Rulers
before use.
85 ± 0.2 mm
Ø 6,5 mm
51 mm
85 ± 0.2 mm
Ø 16 mm
104 mm
50 mm CHECK SIZE
Prin
t 100% Ch eck with
Rulers
before
us e.
85 ± 0.2
mm
Ø 6,5 mm
51 mm
85 ± 0.2
mm
Ø 14 mm
104 mm
50 mm
Ø 16 mm
Ø 6,5mm
