Control panel

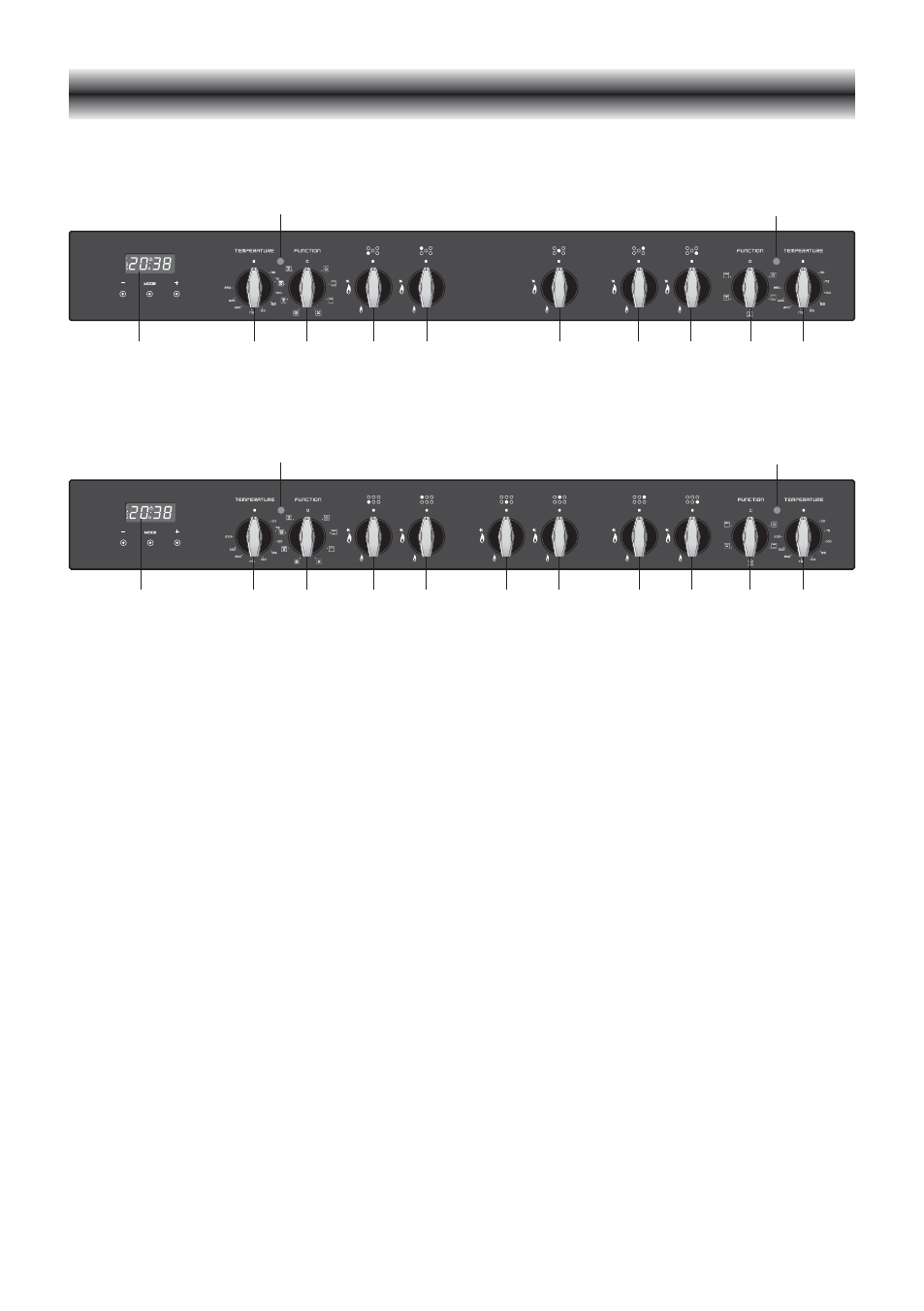

Fig. 3a
10
8
7
6
5
11
9
2
1
12
Control panel - Controls description
1. Front right burner control knob
2. Rear right burner control knob
3. Central rear burner control knob
4. Central front burner control knob
5. Rear left burner control knob
6. Front left burner control knob
7. Multifunction main oven switch knob
8. Multifunction main oven thermostat knob
9. Central burner control knob
10.Clock and timer with “Touch-Control” keys (main oven only)
11.Conventional oven thermostat knob
12.Conventional oven switch knob
Pilot lamps:
13. Main oven thermostat indicator light
14. Conventional oven thermostat indicator light
13
14
Please note: This appliance incorporates a safety cooling fan which you will hear
operating whenever the oven or grill are in use. This fan is to reduce the external
temperature of the appliance and cool the internal components.
Fig. 3b
10
8
7
6
5
11
3
2
1
12
13
14
4
mod. RV 900 ..
mod. RV 1000 ..
