STI0648
FOR Kro¯m MODELS

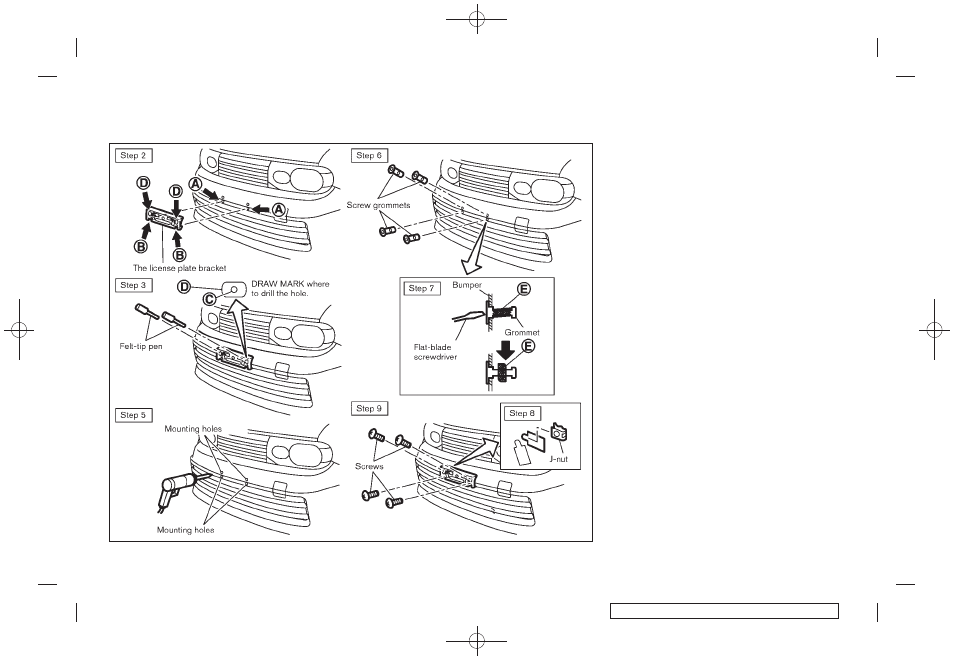

Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in the vinyl bag.
. License plate bracket
. J-nut 6 2
. Screw 6 4
. Screw grommet 6 4
1. Park the vehicle on flat, level ground.
2. Temporarily place the license plate bracket
while aligning points
*
A of the front bumper
fascia with holes
*
B in the license plate
bracket.
3. Confirm that points
*
A and
*
B are aligned.
Hold the license plate bracket and mark the
points
*
C on the bumper facia through the
center of the holes
*
D with a felt-tip pen.
4. Remove the license plate bracket.
5. Carefully drill two shallow pilot holes
*
A
and
*
C using a 0.39 in (10 mm) drill bit at
the marked locations. (Be sure that the
drill only goes through the fascia, or
damage to the nut may occur.)
6. Insert grommets into the hole on the fascia.
Technical and consumer information 9-13
