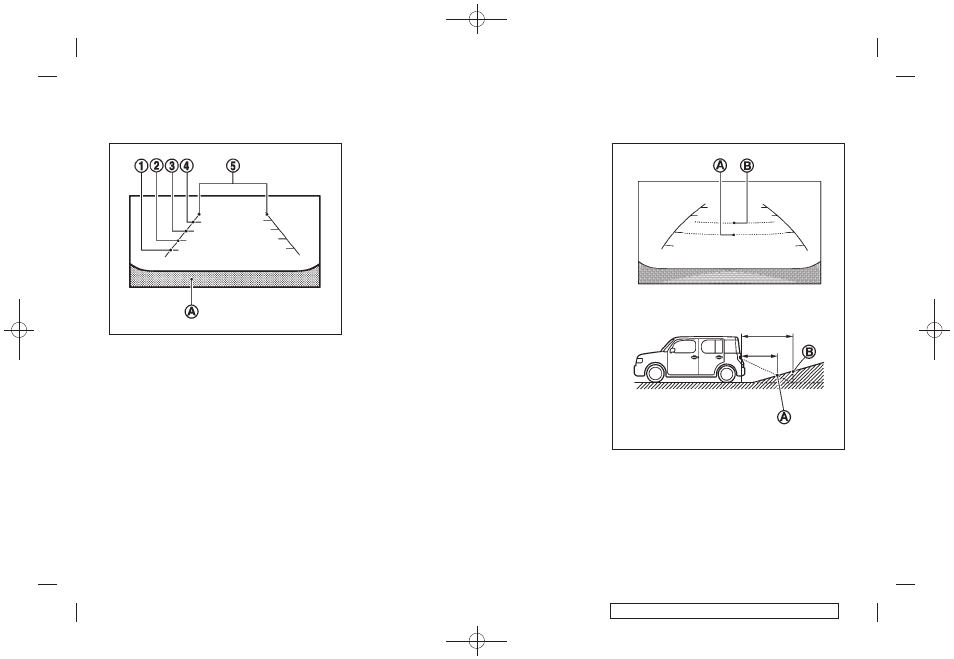

HOW TO READ THE DISPLAYED
LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
*
A are displayed on the monitor.
Distance guide lines:
Indicate distances from the vehicle body.
. Red line *
1 : approx. 1.5 ft (0.5 m)
. Yellow line
*
2 : approx. 3 ft (1 m)
. Green line
*
3 : approx. 7 ft (2 m)
. Green line *
4 : approx. 10 ft (3 m)
Vehicle width guide lines
*
5 :
Indicate the vehicle width when backing up.
SAA2777
Backing up on a steep uphill
When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1.0 m) to
the place
*
A , but the actual 3 ft (1.0 m)
distance on the hill is the place
*
B . Note that
