included in the vertical indication.
Therefore, vertical and horizontal
headlamp adjustment should be
performed only when the beam
direction appears to be incorrect.
You will need one 4 mm wrench or
socket with ratchet to make the
adjustments.
The following procedure assumes
that the factory set horizontal
indicator reference has not
changed and the vehicle’s front
structure is in its factory alignment
condition. If the vehicle has been
in an accident requiring the front
end of the vehicle to be repaired,
the horizontal indicator should be
recalibrated by the servicing
facility according to instructions in
the vehicle’s Service Manual.
Horizontal aim adjustment

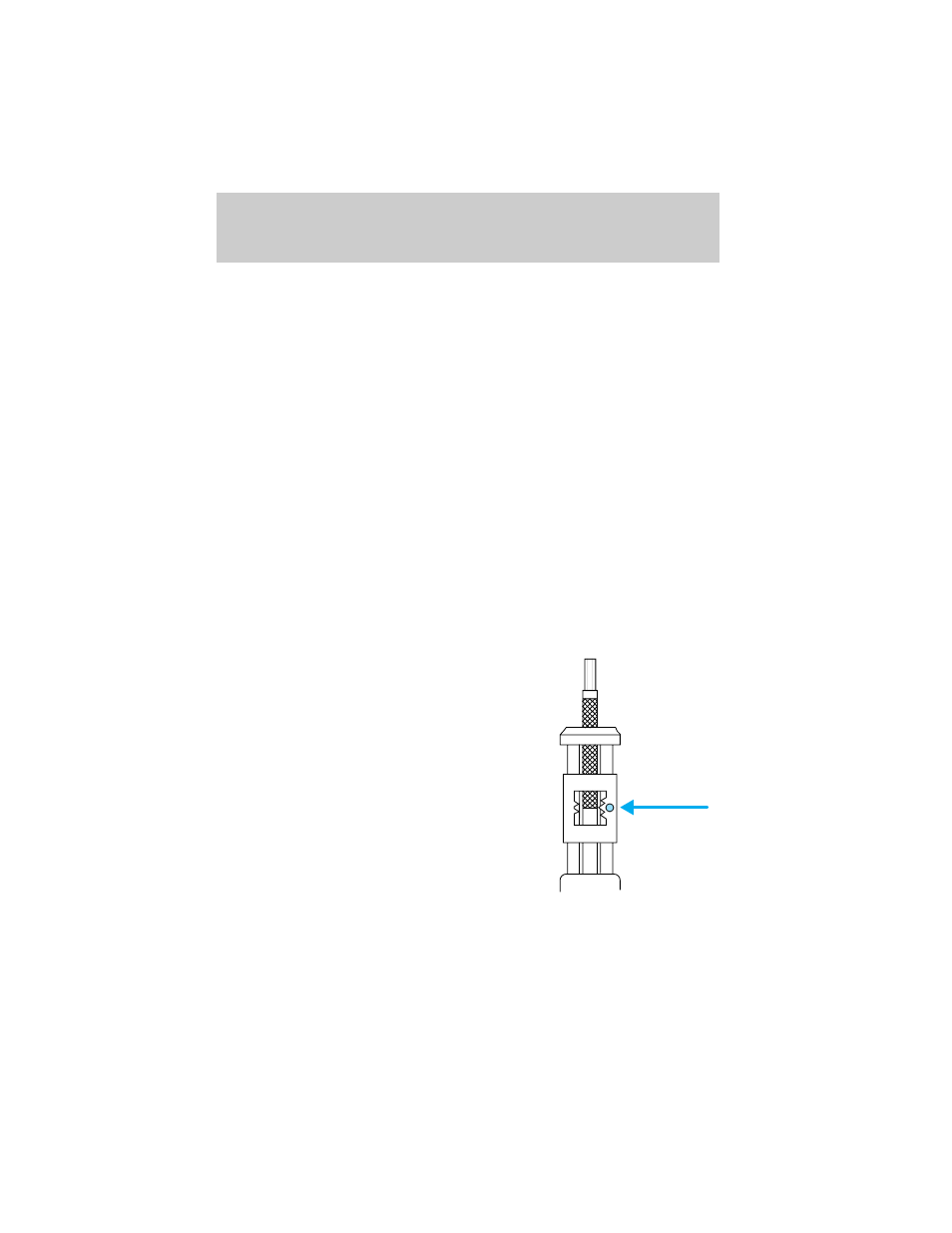

1. With the hood open, locate the
horizontal indicator and adjusting
screw. They are located below the
viewing window at the rear of the
headlamp assembly.
2. The “L” and “R” under the
viewing window on the top of the
