Roadside emergencies – FORD 2002 Windstar v.1 User Manual
Page 209

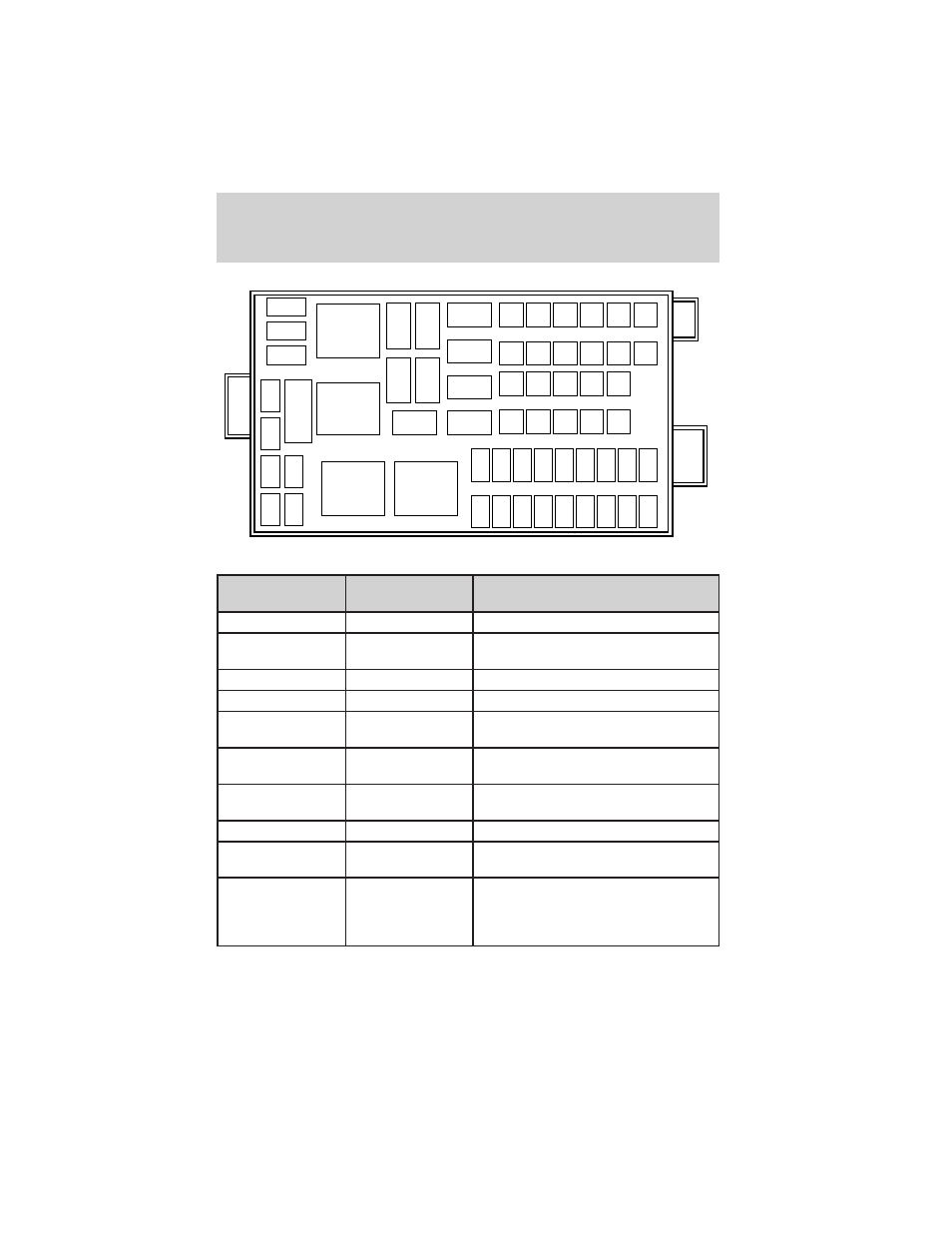

The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box
Description
1
30A*
Powertrain Control Module Relay
2
10A*
Powertrain Control Module, Front
Electronic Module
3
10A*
A/C Compressor Clutch
4
25A*
Horns, Horn Relay (coil)
5
15A*
Fuel Pump Motor, Powertrain
Control Module
6
30A*
Front Wiper Motor, Front Wiper
Relay, Front Washer Pump, FEM
7
25A*
Rear Wiper Motor, Rear Washer
Pump, Rear Wiper Relay (coil)
8
—
Not Used
9
15A*
Right Headlamp (Low and High
Beam)
10
15A*
Right Front Park Lamp, Right
Front Turn Lamp, Right Front
Cornering Lamp, Right Front
Auxiliary Driving Lamp
503
304
303
302
301
502
501
207
201
202
203
204
122
118
114
110
106
102
121
117
113
109
105
101
120
116
112
108
104
119
115
111
107
103
24
209
206
208
18
16
14
12
10
8
6
4
2
17
15
13
11
9
7
5
3
1
205
23
22
21
401
20
19
